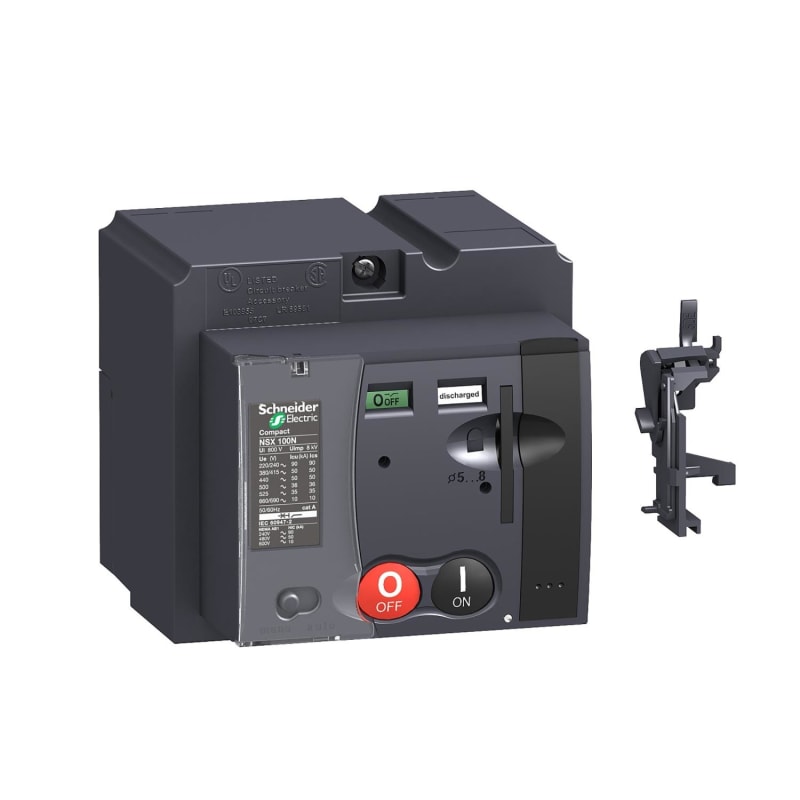

Schneider Electric Standard motor mechanism module MT100/160, ComPacT NSX100/160, 110/130VAC 50/60Hz LV429433
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429433 Motor mechanism 110-130VAC NSX100/160.
Technical Specifications
- Manufacturer part number (MPN)
- LV429433
- EAN / GTIN
- 3606480019999
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Device short name
- MT250
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NSX100; ComPacT NSX160; ComPacT NSX100 DC; ComPacT NSX160 DC
- Control type
- Standard
- [Uc] control circuit voltage
- 110...130 V AC 50/60 Hz
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 100 A; 160 A
- Control signal type
- Maintained; Impulse
- circuit breaker response time
- < 700 ms open; < 80 ms closed
- Maximum operating frequency
- 4 per minute
- Maximum power consumption in VA
- 500 VA closing; 500 VA opening
- Provided equipment
- SDE adaptor
- Locking options description
- Padlocking in OFF position; 1 to 3 padlocks Ø 5 to Ø 8
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 110–130 V
- Rated control supply voltage AC 60 Hz
- 110–130 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8501.20
Cross References
- EAN 3606480019999
- SAP 1000092317
- Code 8585041
