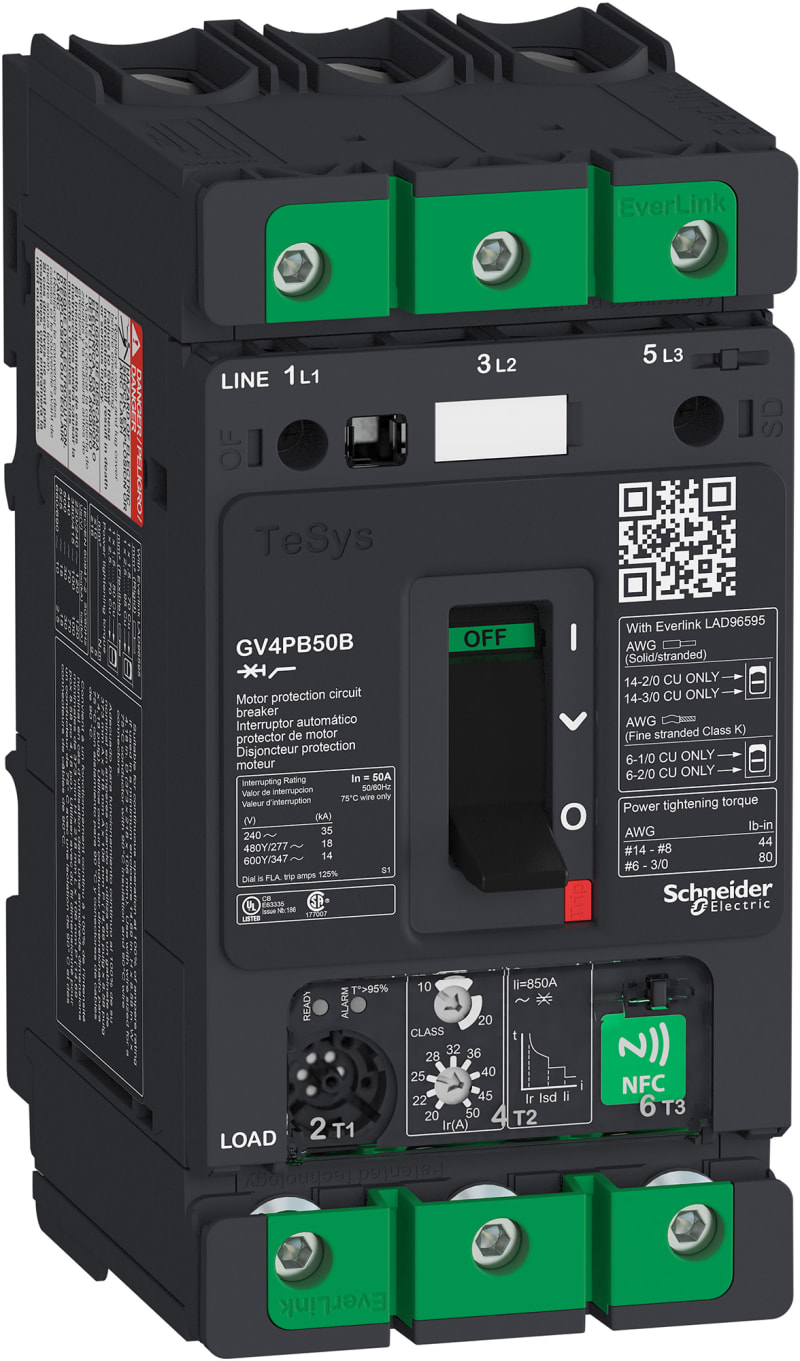

Schneider Electric Motor circuit breaker, TeSys GV4, 3P, 50A, Icu 25KA, thermal magnetic multifunction, UL489 GV4PB50B

Schneider Electric GV4PB50B Motor protection circuit breaker GV4PE Therm/Mag 50A 25kA Elink UL489.

Manufacturer part number (MPN)

GV4PB50B

EAN / GTIN

3606489868727

HS code

8536.90

Sales unit

pcs

Package quantity

5 pcs

Rated current

50 A

Range

TeSys Deca

Range of product

TeSys GV4

Device short name

GV4PB

Product name

TeSys GV4

Product or component type

Motor circuit breaker

Device application

Motor protection

Trip unit technology

Thermal-magnetic; Electronic

Poles description

3P

Utilisation category

Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1

Operating position

Any position

Breaking capacity

35 kA SCCR at 240 V AC 60 Hz conforming to UL 489; 18 kA SCCR at 480Y/277 V AC 60 Hz conforming to UL 489; 14 kA SCCR at 600Y/347 V AC 60 Hz conforming to UL 489; 50 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2

[Ics] rated service short-circuit breaking capacity

100 % at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2

Control type

Toggle

[In] rated current

50 A

Magnetic tripping current

850 A

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2; 600Y/347 V AC 60 Hz conforming to UL 489

[Ui] rated insulation voltage

800 V AC 50/60 Hz conforming to IEC 60947-2

[Ith] conventional free air thermal current

115 A conforming to IEC 60947-4-1

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947-2

Power dissipation per pole

4.6 W

Mechanical durability

40000 cycles

Electrical durability

20000 cycles for AC-3 at 440 V In/2; 10000 cycles for AC-3 at 440 V In

maximum operating rate

25 cyc/h

Rated duty

Continuous conforming to IEC 60947-4-1

Connections - terminals

EverLink BTR screw connectors (top): 1 cable(s) 1.5…70 mm² - rigid; EverLink BTR screw connectors (top): 1 cable(s) 1.5…50 mm² - flexible; EverLink BTR screw connectors (bottom): 1 cable(s) 2.5…95 mm² - rigid; EverLink BTR screw connectors (bottom): 1 cable(s) 2.5…70 mm² - flexible

Tightening torque

9 N.m for cable 16…95 mm²; 5 N.m for cable 1.5…10 mm²

Mechanical robustness

Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6; Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6; Shocks: 15 gn 11 ms conforming to IEC 60068-2-27

Phase failure sensitivity

Yes conforming to IEC 60947-4-1

Height

171 mm

Width

81 mm

Depth

116 mm

Product weight

1.45 kg

Colour

Grey (RAL 7016)

Suitability for isolation

Yes conforming to IEC 60947-1

Standards

EN/IEC 60947-1; EN/IEC 60947-2; EN/IEC 60947-4-1; UL 489; CSA C22.2 No 5

Product certifications

IEC; UL; CSA

Climatic withstand

conforming to IACS E10

IK degree of protection

IK07 conforming to IEC 62262

Pollution degree

3

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for storage

-50…85 °C

Fire resistance

960 °C conforming to IEC 60695-2-11

Operating altitude

5000 m

Ambient air temperature for operation

-25…70 °C

Warranty (in months)

18

HS Code

8536.90
