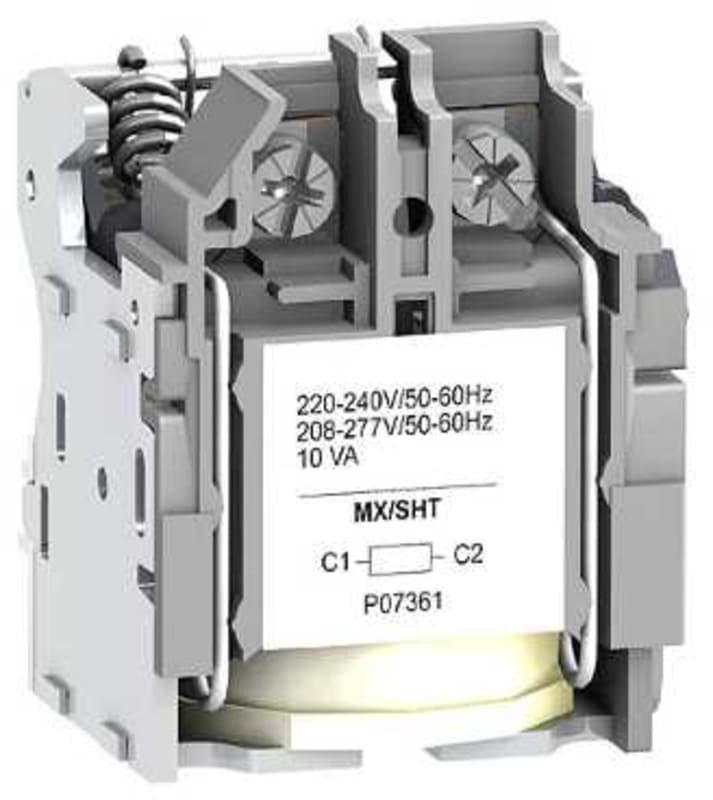

Schneider Electric MX shunt release, ComPacT NSX, rated voltage 24 VDC, screwless spring terminal connections LV429390
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429390 MX 24VDC shuntspole NSX100-630.
Technical Specifications
- Manufacturer part number (MPN)
- LV429390
- EAN / GTIN
- 3606480019128
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 24 V DC
- Range
- ComPacT
- Range of product
- ComPact NSX100...250; ComPacT NSX100...250; ComPact NSX400...630; ComPacT NSX400...630; ComPact NSX100...250 DC; ComPacT NSX100...250 DC; ComPact NSX100...250 DC PV; ComPacT NSX100...250 DC PV; ComPact NSX400...630 DC; ComPacT NSX400...630 DC; ComPact NSX400...630 DC PV; ComPacT NSX400...630 DC PV; Easy UPS 3S; Galaxy VM; Galaxy VS
- Device short name
- MX
- Product or component type
- Voltage release
- Device application
- Control
- Range compatibility
- Easy UPS 3S; Galaxy VM; Galaxy VS
- Voltage release type
- Opening coil; Shunt trip release
- [Uc] control circuit voltage
- 24 V DC
- Operating threshold
- 0.7...1.1 x Un opening
- Response time
- 50 ms
- Control signal type
- Impulse; Maintained
- Impulse duration
- >= 20 ms
- Supply inrush power
- 10 W
- Auxiliary connection terminal
- Spring 0.5…1.5 mm² (20 AWG...16 AWG)
- Wire stripping length
- 7 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 60
- Country of origin
- PL
- Warranty (in months)
- 18
- Power consumption
- 5 W
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- No
- Type of electric connection
- Spring clamp connection
- Rated control supply voltage DC
- 24 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606480019128
- SAP 1000092296
- Code 8930273
