Tilkoplingslasker Hor./Vert.PE Rail X2
Pricing
Request a quote
We reply within 24 hours
Product Description

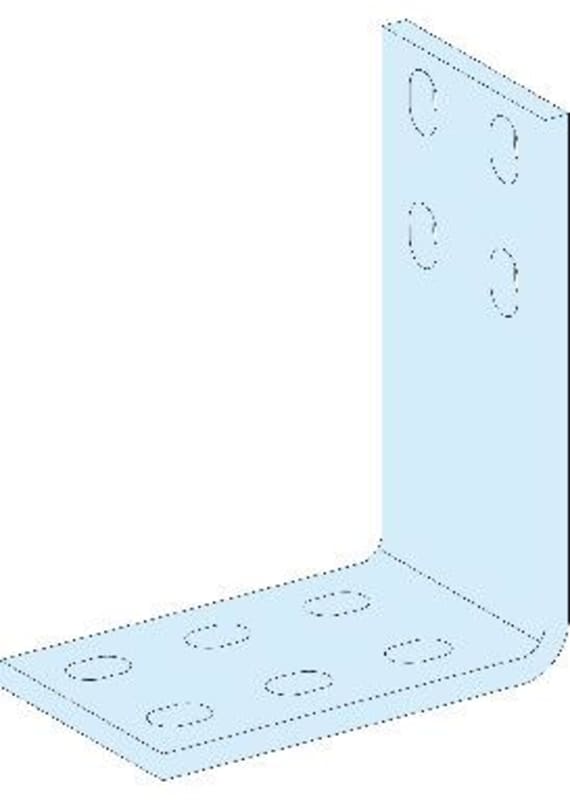

Schneider Electric LVS04672 — Connection plate, Linergy TB, angle bracket for horizontal to vertical PE bars, set of 2.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04672
- EAN / GTIN
- 3606481866844
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- Linergy
- Range of product
- Linergy TB
- Product or component type
- Connector plate
- Range compatibility
- PrismaSeT PrismaSeT P enclosure; Linergy Linergy TB PE conductor flat bar
- Accessory / separate part category
- Busbar accessory
- Product destination
- Busbar
- Quantity per set
- Set of 2
- Cubicle-device connection
- PE bar horizontal; PE bar vertical
- Height
- 85 mm
- Width
- 105 mm
- Depth
- 50 mm
- Product weight
- 0.84 kg
- Colour
- Natural
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 9.000 cm
- Package 1 Length
- 11.000 cm
- Package 1 Weight
- 830.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 10
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 8.632 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 80
- Package 3 Height
- 45.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 81.560 kg
- Country of origin
- FR
- Warranty (in months)
- 18
Cross References
- EAN 3606481866844
- SAP 1200547023
- Code 82879743
