Schneider Electric Standard coupling kit, PanelSeT SFN, PanelSet SF, set of 4 brackets, 2 connectors, sealing gasket and fixing elements NSYSFBK
Pricing
Request a quote
We reply within 24 hours
Product Description

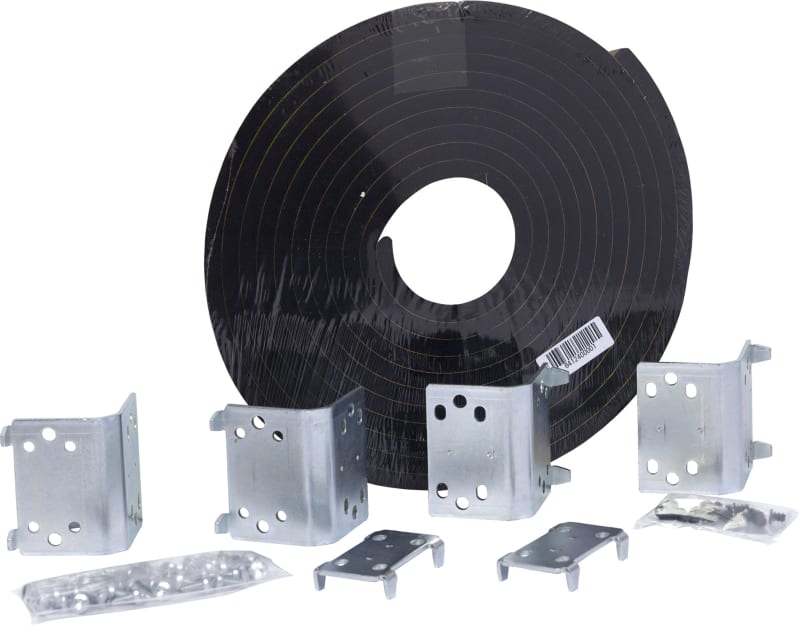

Schneider Electric NSYSFBK — Standard coupling kit, PanelSeT SFN, PanelSet SF, set of 4 brackets, 2 connectors, sealing gasket and fixing elements.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFBK
- EAN / GTIN
- 3606485131825
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Coupling accessory
- Product or component type
- Coupling kit
- Anwendung
- Multi-purpose
- Mounting location
- Side coupling of 2 enclosures; Depthwise coupling of 2 enclosures
- Range compatibility
- PanelSeT SF suitable enclosure
- Device composition
- 2 flat connector; 4 bracket; fixing elements; sealing gasket
- Quantity per set
- Set of 1
- Material
- Sealing gasket: EPDM; Bracket: steel; Flat connector: steel
- Surface finish
- Zinc coated
- Fixing mode
- By screws - screw type M6 self tapping
- Height
- 65 mm
- Width
- 340 mm
- Depth
- 365 mm
- IP degree of protection
- IP55
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.500 cm
- Package 1 Width
- 34.000 cm
- Package 1 Length
- 36.500 cm
- Package 1 Weight
- 1.664 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 100
- Package 2 Height
- 116.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 187.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Coupling set, side
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485131825
- SAP 1000089892
- Code 8884052
