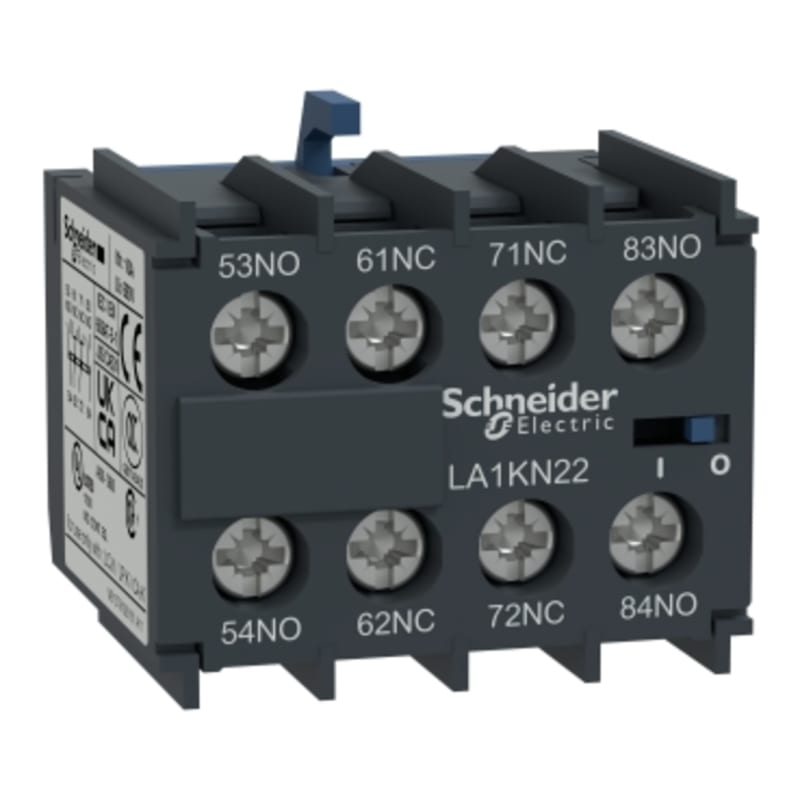

Schneider Electric TeSys K - Auxiliary contact block - 2 NO + 2 NC - screw-clamps terminals LA1KN22

Schneider Electric LA1KN22 Auxiliary block 2NO/2NC.

Manufacturer part number (MPN)

LA1KN22 EAN / GTIN: 3389110500110 Sales unit: pcs Package quantity: 10 pcs Contact configuration: 2 NO / 2 NC Range: TeSys Product name: TeSys K Product or component type: Auxiliary contact block Device short name: LA1 Range compatibility: TeSys K LC1K; TeSys K CA2K; TeSys K CA3K Mounting location: Front Pole contact composition: 2 NO + 2 NC Contacts operation: Instantaneous [Ue] rated operational voltage: 690 V AC 25...400 Hz [Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1; 600 V conforming to UL 60947-5-1; 600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current: 10 A (at 50 °C) Standards: EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB/T 14048.5; JIS C8201-5-1; UL 60335-2-40:Annex JJ Product certifications: CB Scheme; CCC; UL; CSA; CE; UKCA Irms rated making capacity: 110 A at <= 690 V AC conforming to IEC 60947 Permissible short-time rating: 80 A 1 s; 60 A 500 ms; 110 A 100 ms Associated fuse rating: 10 A gG at <= 690 V conforming to IEC 60947 minimum switching current: 5 mA minimum switching voltage: 17 V Non overlap distance: 0.5 mm Insulation resistance: > 10 MOhm Connections - terminals: Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end; Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 1.5…4 mm²rigid; Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 1.5…4 mm²rigid Tightening torque: 1.3 N.m - with screwdriver Philips No 2; 1.3 N.m - with screwdriver pozidriv No 2 Height: 30 mm Width: 38 mm Depth: 35 mm Product weight: 0.045 kg Environmental characteristic: Normal environment IP degree of protection: IP20 conforming to IEC 60529 Protective treatment: TC conforming to IEC 60068 Ambient air temperature for storage: -50…80 °C Ambient air temperature for operation: -25…50 °C Operating altitude: 2000 m Number of Units in Package 1: 1 Number of Units in Package 2: 100 Number of Units in Package 3: 1600 Country of origin: ID Warranty (in months): 18

HS Code

8538.90

• EAN 3389110500110
• SAP 1000036824
• Code 8516538
