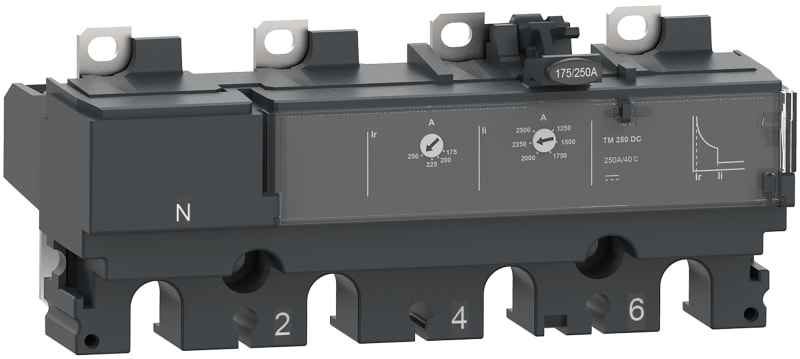

Schneider Electric Trip unit TM160DC, ComPacT NSX160 DC, 4 poles, thermal magnetic protections, 160A rating C164TM160D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C164TM160D Protection for circuit breaker ComPacT NSX-DC-TM160DC 4P-thermomagnetic-160A.
Technical Specifications
- Manufacturer part number (MPN)
- C164TM160D
- EAN / GTIN
- 3606481994967
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 32 pcs
- Number of poles
- 4P
- Range
- ComPacT
- Range of product
- ComPacT NSX100...250 DC
- Product or component type
- Trip unit
- Trip unit name
- TM-D
- Trip unit technology
- Thermal-magnetic
- Range compatibility
- ComPacT NSX160 DC
- Device application
- Distribution
- Poles description
- 4P
- Protected poles description
- 4D
- Trip unit protection functions
- LI
- Protection type
- L : for overload protection (thermal); I : for short-circuit protection (magnetic)
- Trip unit rating
- 160 A at 40 °C
- [Ue] rated operational voltage
- 750 V DC
- Network type
- DC
- Circuit breaker mounting mode
- Fixed
- Long-time pick-up adjustment type Ir (thermal protection)
- Adjustable
- [Ir] long-time protection pick-up adjustment range
- 0.7...1 x In
- Long-time protection delay adjustment type tr
- Fixed
- Instantaneous protection pick-up adjustment type Ii
- Fixed
- [Ii] instantaneous protection pick-up adjustment range
- 1250 A
- Earth-leakage protection
- Without
- Standards
- EN/IEC 60947-2
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60947-1
- IP degree of protection
- IP40 conforming to IEC 60529
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
