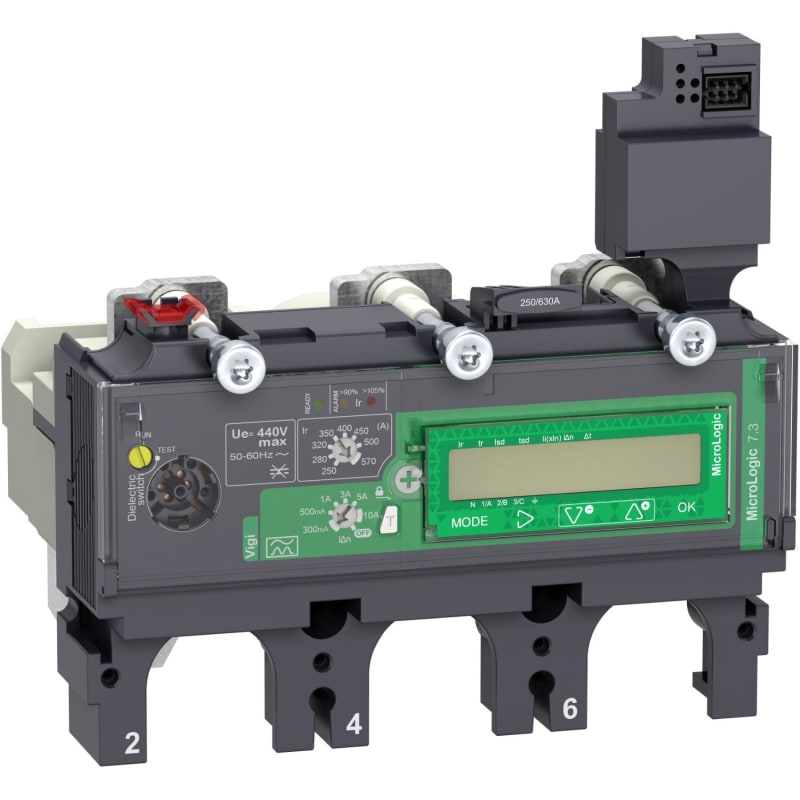

Schneider Electric Trip unit MicroLogic Vigi 7.3E, ComPacT NSX630, 3 poles, basic and earth leakage protections, energy meter, 570A rating C6337E570

Schneider Electric C6337E570 Protection for Circuit breaker ComPacT NSX630-electronic-energy metering-earth fault-Micrologic 7.3E 570A 3p.

Manufacturer part number (MPN)

C6337E570

EAN / GTIN

3606481994240

HS code

8536.90

Sales unit

pcs

Package quantity

2 pcs

Rated current

570 A

Trip unit

Micrologic 7.3E

Range

ComPacT

Range of product

ComPacT NSX400...630

Product or component type

Trip unit

Trip unit name

MicroLogic 7.3 E

Trip unit technology

Electronic

Range compatibility

ComPacT NSX630

Device application

Distribution

Poles description

3P

Protected poles description

3D

Trip unit protection functions

LSIR

Protection type

L : for overload protection (long time); S : for short time short-circuit protection; I : for instantaneous short-circuit protection; R : for earth-leakage protection

Trip unit rating

570 A at 40 °C

[Ue] rated operational voltage

440 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

250...570 A

Long-time protection delay adjustment type tr

Adjustable

[tr] long-time protection delay adjustment range

15…400 s at 1.5 x Ir; 0.35…11 s at 7.2 x Ir; 0.5…16 s at 6 x Ir

Thermal memory

20 minutes before and after tripping

Short-time protection pick-up adjustment type Isd

Adjustable

[Isd] Short-time protection pick-up adjustment range

1.5...10 x Ir

Short-time protection delay adjustment type tsd

Adjustable

[tsd] Short-time protection delay adjustment range

0…0.4 s I²t=off; 0.1…0.4 s I²t=on

Instantaneous protection pick-up adjustment type Ii

Adjustable

[Ii] instantaneous protection pick-up adjustment range

1.5...11 x In

Earth-leakage protection

Integrated

Earth-leakage protection class

Class A

Earth-leakage protection sensitity adjustment type IΔn

Adjustable

[IΔn] earth-leakage protection sensitivity adjustment range

0.3 A; 0.5 A; 1 A; 3 A; 5 A; 10 A

Earth-leakage protection specific mode

OFF using the IΔn rotary switch

Earth-leakage protection time delay adjustement type Δt

Adjustable

[Δt] Earth-leakage protection time delay adjustment range

0 ms; 60 ms; 150 ms; 500 ms; 1 s

Zone selective interlocking ZSI

Without

Local signalling

Flashing LED (green) for ready to operate; LED 105 % Ir (red) for overload; LED 90 % Ir (orange) for overload

Display type

LCD display

Type of measurement

Energy meter

Communication of data

Power quality; Earth leakage current; Protection and alarm settings; Maintenance indicators; Maximeters/minimeters; Energy metering; Demand current and power; Instantaneous and demand values; Test reports; Time-stamped histories and event tables

Standards

EN/IEC 60947-2

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60947-1

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

HS Code

8536.90
