Schneider Electric IP31 Cable Entry Box Kit for Altivar Drives
Pricing
Request a quote
We reply within 24 hours
Product Description

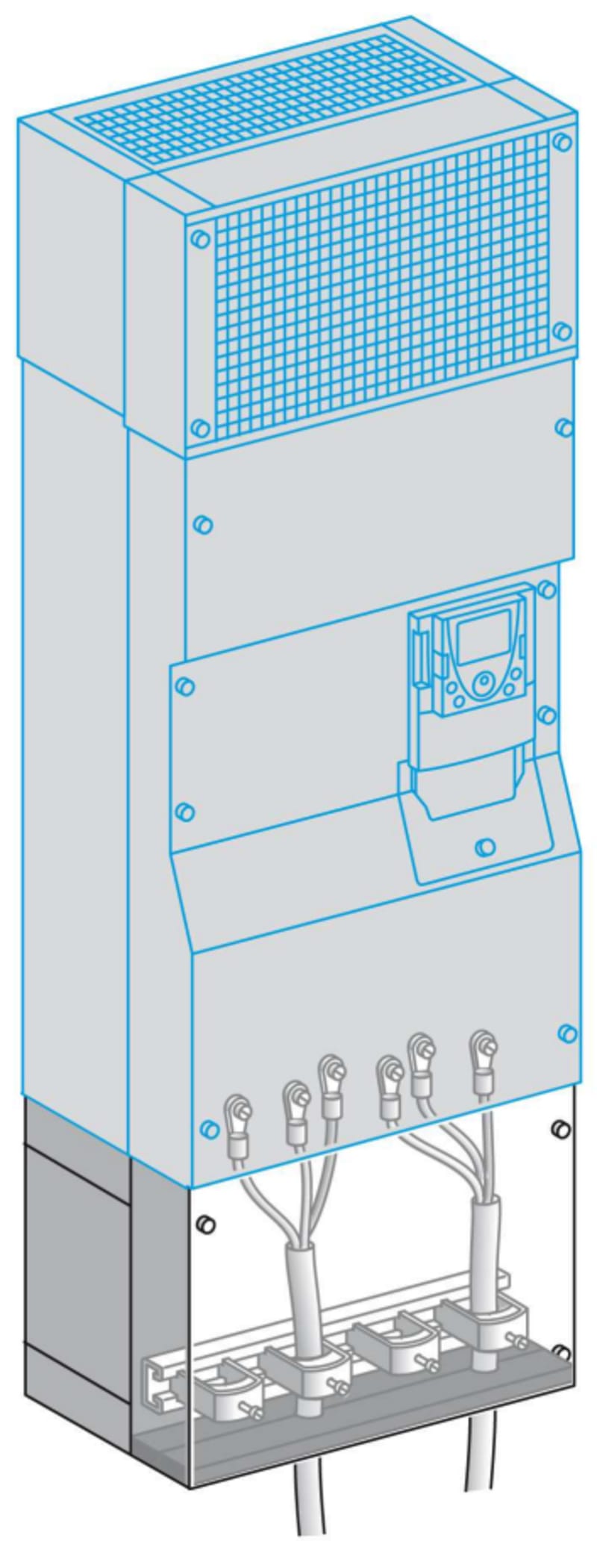

Schneider Electric VW3A9113 is an IP31 conformity kit for Altivar 61, 71, ATV600 and ATV900 variable speed drives without braking unit. The kit includes an IP31 cover, an IP54 casing, an EMC plate with cable clamps, fixing accessories and a manual. It suits the drive ratings listed in the technical data.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A9113
- EAN / GTIN
- 3389119201872
- Sales unit
- pcs
- IP rating
- IP31
- Accessory / separate part category
- Mounting and fixing accessory
- Accessory / separate part type
- IP31 conformity kit
- Product compatibility
- ATV61HC25N4D without braking unit; ATV61HC25Y without braking unit; ATV61HC31N4 without braking unit; ATV61HC31N4D without braking unit; ATV61HC31Y without braking unit; ATV61HC40Y without braking unit; ATV71HC20N4 without braking unit; ATV71HC20N4D without braking unit; ATV71HC20Y without braking unit; ATV71HC25N4 without braking unit; ATV71HC25N4D without braking unit; ATV71HC25Y without braking unit; ATV71HC28N4 without braking unit; ATV71HC28N4D without braking unit; ATV71HC31Y without braking unit; ATV61HC25N4 without braking unit; Variable speed drive ATV630 motor at 250 kW 380...480 V; Variable speed drive ATV630 motor at 315 kW 380...480 V; Variable speed drive ATV930 motor at 250 kW 380...480 V; Variable speed drive ATV930 motor at 315 kW 380...480 V
- Accessory / separate part destination
- Variable speed drive without braking unit
- Range compatibility
- Altivar Process ATV900; Altivar 71; Altivar 61; Altivar Process ATV600
- Kit composition
- 1 manual; Fixing accessories; 1 IP31 cover; 1 EMC plate with cable clamps; 1 IP54 casing
- Product weight
- 19.5 kg
- Number of Units in Package 1
- 1
- Country of origin
- CN
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389119201872
- SAP 1000528291
- Code 8885409
