Schneider Electric Switch disconnector, ComPacT NSXm 50NA, 3 poles, thermal current Ith 50A, EverLink lugs C113050LS
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C113050LS Load-break switch ComPacT NSXm 50A 3p Everlink.
Technical Specifications
- Manufacturer part number (MPN)
- C113050LS
- EAN / GTIN
- 3606481993168
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 9 pcs
- Rated current
- 50 A
- Range
- ComPacT
- Product name
- ComPacT NSXm
- Device short name
- NSXm 50NA
- Product or component type
- Switch disconnector
- Device application
- Distribution
- Poles description
- 3P
- [Ith] conventional free air thermal current
- 50 A at 40 °C
- [Ie] rated operational current
- AC-23: 50 A AC 50/60 Hz; AC-22: 50 A AC 50/60 Hz
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Network type
- AC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Utilisation category
- AC-22A; AC-23A
- Breaking capacity code
- NA
- Contact position indicator
- Yes
- Visible break
- No
- mounting mode
- Fixed
- [Icw] rated short-time withstand current
- 900 A during 1 s; 900 A during 3 s; 200 A during 20 s
- [Icm] rated short-circuit making capacity
- 1.28 kA switch-disconnector alone; 150 kA with upstream protection circuit breaker
- Control type
- Toggle
- [Ui] rated insulation voltage
- 800 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 8 kV
- Mounting support
- 35 mm symmetrical DIN rail; Backplate
- Connection pitch
- 27 mm
- Connections - terminals
- 1 Everlink lug wire size 2.5…70 mm², flexible copper; 1 Everlink lug wire size 2.5…95 mm², rigid or stranded aluminium/copper
- Mechanical durability
- 20000 cycles
- Electrical durability
- AC-22A: 20000 cycles 440 V AC 50/60 Hz Ie/2; AC-23A: 20000 cycles 440 V AC 50/60 Hz Ie/2; AC-22A: 10000 cycles 440 V AC 50/60 Hz Ie; AC-23A: 10000 cycles 440 V AC 50/60 Hz Ie; AC-22A: 10000 cycles 690 V AC 50/60 Hz Ie/2; AC-23A: 6000 cycles 690 V AC 50/60 Hz Ie/2; AC-22A: 5000 cycles 690 V AC 50/60 Hz Ie; AC-23A: 3000 cycles 690 V AC 50/60 Hz Ie
- Width (W)
- 81 mm
- Height (H)
- 137 mm
- Depth (D)
- 80 mm
- Product weight
- 1.06 kg
- Standards
- EN/IEC 60947-1; EN/IEC 60947-3
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60664-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481993168
- SAP 1200534684
- Code 82688418
Product Documentation
More from Schneider Electric
Schneider Electric
Wall-mounted. App.innt. 32A 3P+J 400V
83570
Schneider Electric
Swing RACK Stopper 180GR.
NSYRCDR18
Schneider Electric
Schneider Electric Illuminated push button, Harmony XB4, metal, red flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 120V AC XB4FW34G5
Schneider Electric
Schneider Electric Solid state panel mount relay, 50 A, zero voltage switching, thermal pad, input 18…36 V AC, output 48…530 V AC SSP3A250B7T
Schneider Electric

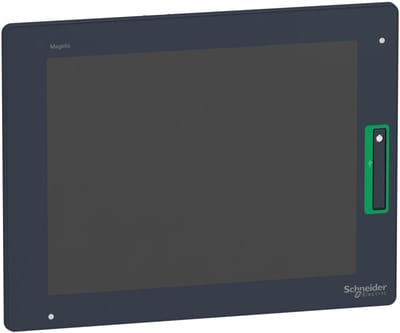

Schneider Electric 12.1 Touch Smart Display XGA HMIDT642
Schneider Electric

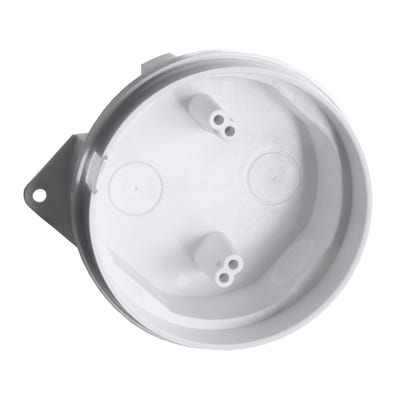

Sealed base box (FFS06720066)
Schneider Electric

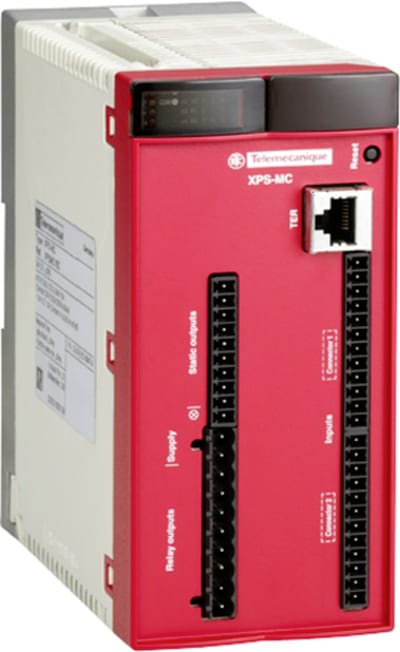

Schneider Electric safety controller XPS-MC - 24 V DC - 16 input - 30 LEDs signalling XPSMC16Z
Schneider Electric

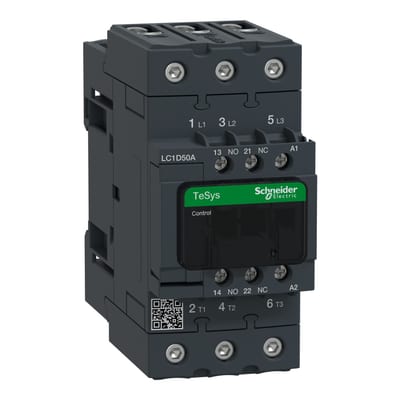

Schneider TeSys D Contactor LC1D50A 50A 3P 48-130V AC/DC Coil
