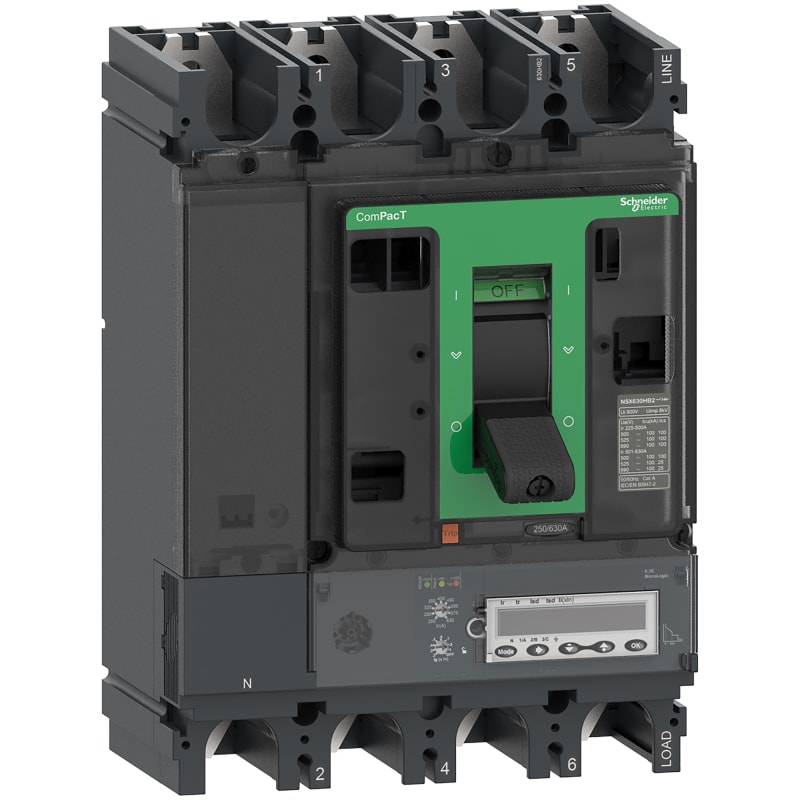

Schneider Electric Circuit breaker, ComPacT NSX630HB1, 75KA/690VAC, 4 poles, MicroLogic 6.3E trip unit 630A C63V46E630

Schneider Electric C63V46E630 Circuit breaker ComPacT NSX630HB1-protection with measurement-Micrologic 6.3E 630A 4P 630A 75kA/690VAC.

Manufacturer part number (MPN)

C63V46E630

EAN / GTIN

3606481989154

HS code

8536.90

Sales unit

pcs

Rated current

630 A

Number of poles

4P

Range

ComPacT

Product name

ComPacT NSX

Device short name

NSX630HB1

Product or component type

Circuit breaker

Device application

Distribution

Poles description

4P

Protected poles description

4D; 3D + OSN; 3D + N/2; 3D

Neutral position

Left

[In] rated current

630 A at 40 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category A

Breaking capacity

85 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 80 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2; 75 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

HB1 75 kA 690 V AC

Trip unit name

MicroLogic 6.3 E

Trip unit technology

Electronic

Trip unit protection functions

LSIG

Control type

Toggle

Circuit breaker mounting mode

Fixed

[Ui] rated insulation voltage

800 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ics] rated service breaking capacity

85 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2; 80 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2; 75 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Mechanical durability

15000 cycles

Electrical durability

8000 cycles at 440 V In/2; 4000 cycles at 440 V In; 6000 cycles at 690 V In/2; 2000 cycles at 690 V In

Power dissipation per pole

39.7 W

Mounting support

Backplate

Mounting position

Horizontal and vertical; Flat on the back

Upside connection

Front

Downside connection

Front

Connection pitch

45 mm

Protection type

L : for overload protection (long time); S : for short time short-circuit protection; I : for instantaneous short-circuit protection; G : for ground fault protection

Trip unit rating

630 A at 40 °C

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

250...630 A

Long-time protection delay adjustment type tr

Adjustable

[tr] long-time delay adjustment range

15…400 s at 1.5 x Ir; 0.5…16 s at 6 x Ir; 0.35…11 s at 7.2 x Ir

Neutral protection setting

0.5 x Ir (3D + N/2); 1 x Ir (4D); 1.6 x Ir (3D + OSN); No protection (3D)

Thermal memory

20 minutes before and after tripping

Short-time protection pick-up adjustment type Isd

Adjustable

[Isd] Short-time protection pick-up adjustment range

1.5...10 x Ir

Short-time protection delay adjustment type tsd

Adjustable 5 settings

[tsd] short-time delay adjustment range

0…0.4 s I²t=off; 0.1…0.4 s I²t=on

Instantaneous protection pick-up adjustment type Ii

Adjustable

[Ii] instantaneous protection pick-up adjustment range

1.5...11 x In

Ground-fault protection pick-up adjustment type Ig

Adjustable 9 settings

[Ig] ground-fault pick-up adjustment range

0.4...1 x In for In = 40 A; 0.2...1 x In for In > 40 A; Ig enable on/off

Ground-fault protection time delay adjustment type tg

Adjustable 5 settings

[tg] Ground-fault time delay adjustment range

0…0.4 s I²t=off; 0.1…0.4 s I²t=on

Earth-leakage protection

Without

Zone selective interlocking ZSI

With

Number of slots

6 slot(s)

Local signalling

Flashing LED (green) for ready to operate; LED 105 % Ir (red) for overload; LED 90 % Ir (orange) for overload

Display type

LCD display

Type of measurement

Energy meter

Communication of data

Demand current and power; Instantaneous and demand values; Power quality; Energy metering; Maintenance indicators; Maximeters/minimeters; Time-stamped histories and event tables; Protection and alarm settings

Width (W)

185 mm

Height (H)

255 mm

Depth (D)

110 mm

Product weight

8.13 kg

Standards

EN/IEC 60947-2

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60664-1

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Relative humidity

0…95 %

Operating altitude

0...2000 m without derating; 2000 m...5000 m with derating

Warranty (in months)

18
