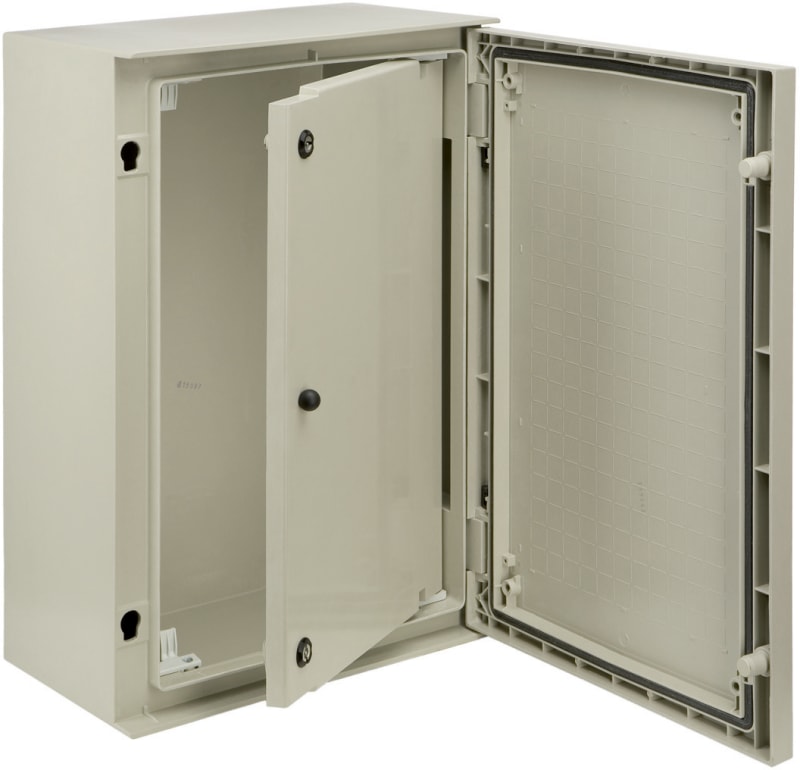

Schneider Electric reversible internal door polyester 2 locks grid pattern FORPLM43 NSYPAP43G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPAP43G Internal door 7035 PLM43.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPAP43G
- EAN / GTIN
- 3606480774188
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- -
- Mounting location
- Front side
- Range compatibility
- PanelSeT PLM
- Device composition
- 1 door; 1 handle; 4 fixing brackets
- Material
- Polyester charged with fibreglass
- Colour
- Grey (RAL 7035)
- Lock type
- Lock 5 mm double bar
- Number of locks
- 2
- Door type
- Internal plain
- Door opening side
- Reversible (110 °)
- Height
- Grid pattern: 315 mm
- Width
- Grid pattern: 205 mm
- Depth
- Available depth between enclosure door : 26 mm; Available depth between rear : 152 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 20.000 cm
- Package 1 Length
- 40.000 cm
- Package 1 Weight
- 1.102 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 150
- Package 2 Height
- 140.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 185.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Compartment door
- EMC-version
- No
- Degree of protection (IP)
- IP20
- Surface finishing
- Untreated
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606480774188
- SAP 1000752388
- Code 8489291
