Upper+lower frame SFN 600X500
Pricing
Request a quote
We reply within 24 hours
Product Description

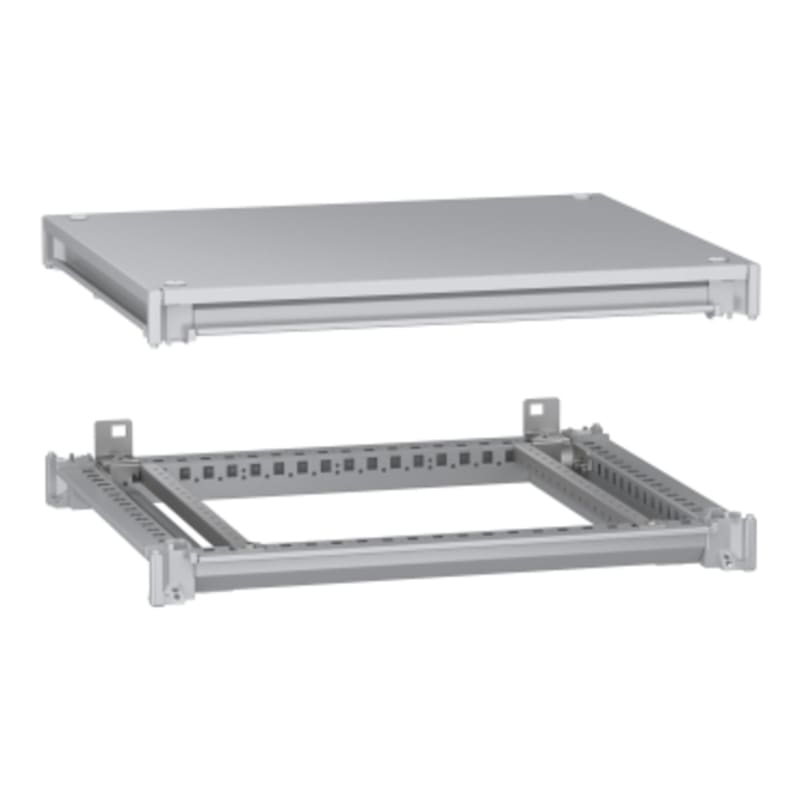

Schneider Electric NSYSFNC65 Upper and lower frame, PanelSeT SFN, 600x500.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFNC65
- EAN / GTIN
- 3606486104002
- Sales unit
- pcs
- Dimensions
- 600×500 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Application
- Multi-purpose
- Product or component type
- Framework kit
- For enclosure nominal dimensions
- - W: 600 mm D: 500 mm
- Mounting location
- Bottom of vertical uprights; Top of vertical uprights
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 bottom frame; 1 roof; 1 top frame
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - each corner of enclosure location
- Height
- 110 mm
- Width
- 600 mm
- Depth
- 500 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 16
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Profile
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building depth
- 500 mm
- Max. load capacity
- 1500 kg
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486104002
- SAP 1200698230
- Code 83799686
