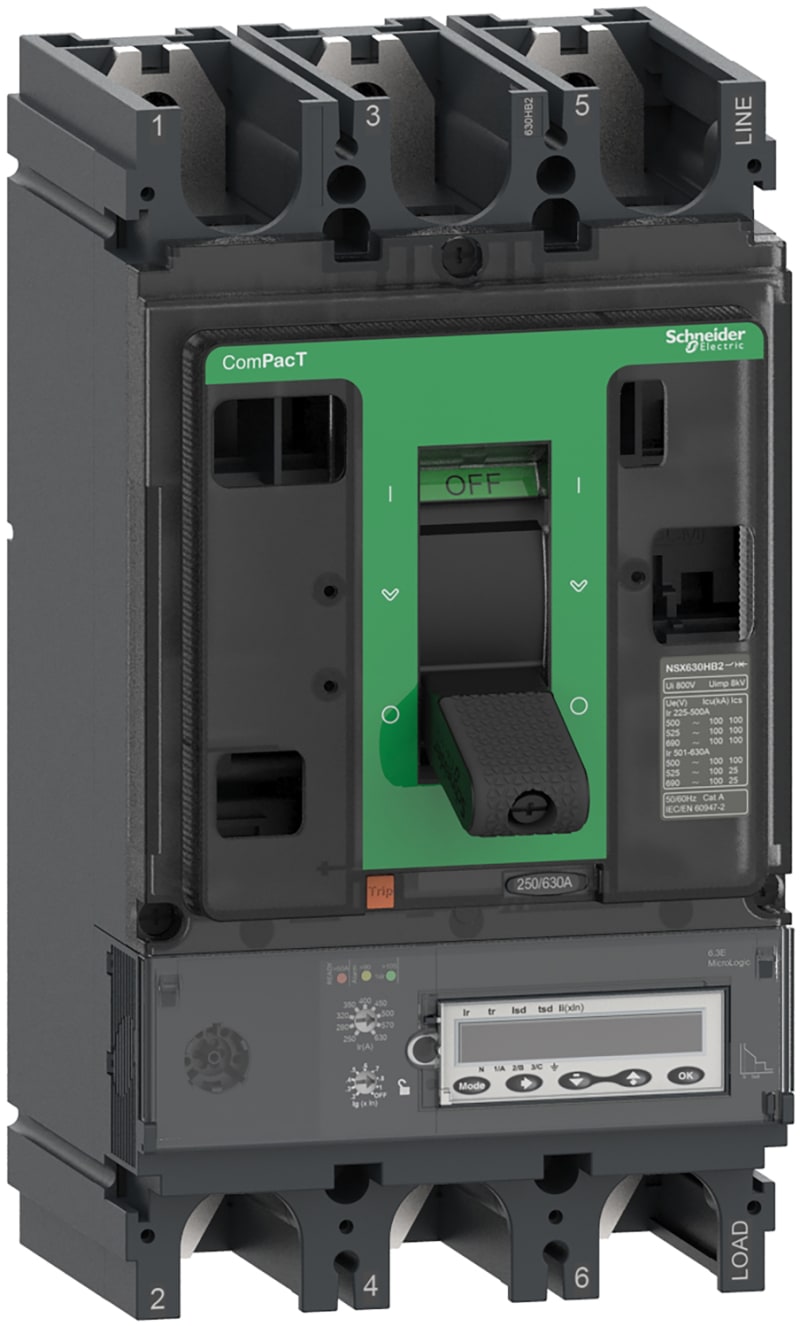

Schneider Electric Circuit breaker, ComPacT NSX630HB1, 75KA/690VAC, 3 poles, MicroLogic 6.3E-M trip unit 500A C63V36M500

Schneider Electric C63V36M500 Circuit breaker ComPacT NSX630HB1-motor protection-measurement-Micrologic 6.3EM 500A 3P 500A 75kA/690VAC.

Manufacturer part number (MPN)

C63V36M500

EAN / GTIN

3606481989086

HS code

8536.90

Sales unit

pcs

Rated current

500 A

Number of poles

3P

Range

ComPacT

Product name

ComPacT NSX

Device short name

NSX630HB1

Product or component type

Circuit breaker

Device application

Motor protection

Poles description

3P

Protected poles description

3D

[In] rated current

500 A at 65 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category A

Breaking capacity

85 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 80 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2; 75 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

HB1 75 kA 690 V AC

Trip unit name

MicroLogic 6.3 E-M

Trip unit technology

Electronic

Trip unit protection functions

LSIG

Control type

Toggle

Circuit breaker mounting mode

Fixed

[Ui] rated insulation voltage

800 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ics] rated service breaking capacity

85 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2; 80 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2; 75 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Mechanical durability

15000 cycles

Electrical durability

8000 cycles at 440 V In/2; 4000 cycles at 440 V In; 6000 cycles at 690 V In/2; 2000 cycles at 690 V In

Power dissipation per pole

39.7 W

Mounting support

Backplate

Mounting position

Horizontal and vertical; Flat on the back

Upside connection

Front

Downside connection

Front

Connection pitch

45 mm

Protection type

L : for overload protection (long time); So : for short time short-circuit protection; I : for instantaneous short-circuit protection; G : for ground fault protection

Trip unit rating

500 A at 65 °C

Motor tripping class

20; 5; 30; 10

Complementary motor protection

Protracted starting time; Stalled rotor; Phase unbalance; Underload

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

250...500 A

Long-time protection delay adjustment type tr

Adjustable

[tr] long-time delay adjustment range

120 s at 1.5 x Ir for trip class 5; 6.5 s at 6 x Ir for trip class 5; 5 s at 7.2 x Ir for trip class 5; 240 s at 1.5 x Ir for trip class 10; 13.5 s at 6 x Ir for trip class 10; 10 s at 7.2 x Ir for trip class 10; 480 s at 1.5 x Ir for trip class 20; 26 s at 6 x Ir for trip class 20; 20 s at 7.2 x Ir for trip class 20; 720 s at 1.5 x Ir for trip class 30; 38 s at 6 x Ir for trip class 30; 30 s at 7.2 x Ir for trip class 30

Thermal memory

20 minutes before and after tripping

Short-time protection pick-up adjustment type Isd

Adjustable

[Isd] Short-time protection pick-up adjustment range

5...13 x Ir

Short-time protection delay adjustment type tsd

Fixed

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

6500 A

Ground-fault protection pick-up adjustment type Ig

Adjustable 9 settings

[Ig] ground-fault pick-up adjustment range

0.6...1 x In for In = 25 A; 0.3...1 x In for In = 50 A; 0.2...1 x In for In > 50 A; Ig enable on/off

Ground-fault protection time delay adjustment type tg

Adjustable 5 settings

[tg] Ground-fault time delay adjustment range

0…0.4 s

Earth-leakage protection

Without

Zone selective interlocking ZSI

With

Number of slots

6 slot(s)

Local signalling

Flashing LED (green) for ready to operate; LED 95 % Ith (red) for temperature over set point

Display type

LCD display

Type of measurement

Energy meter

Communication of data

Protection and alarm settings; Demand current and power; Power quality; Thermal image function; Energy metering; Time-stamped histories and event tables; Maximeters/minimeters; Instantaneous and demand values; Phase sequence; Maintenance indicators

Width (W)

140 mm

Height (H)

255 mm

Depth (D)

110 mm

Product weight

6.2 kg

Standards

EN/IEC 60947-2

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60664-1

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Relative humidity

0…95 %

Operating altitude

0...2000 m without derating; 2000 m...5000 m with derating

Warranty (in months)

18

HS Code

8536.90
