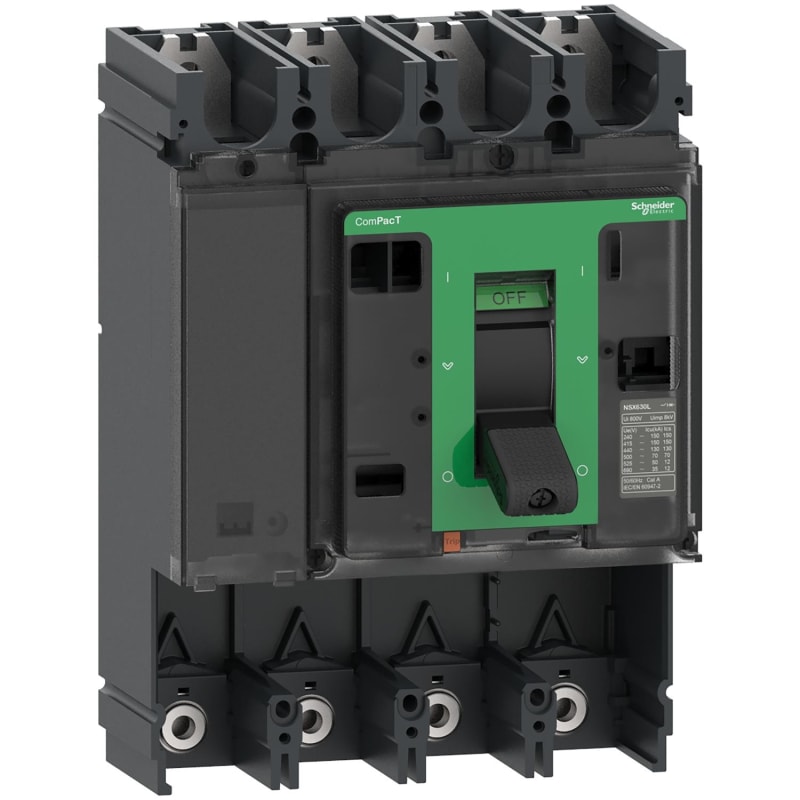

Schneider Electric Circuit breaker basic frame, ComPacT NSX630H, 70KA/415VAC, 4 poles, 630A frame rating, without trip unit C63H4
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C63H4 Circuit breaker ComPacT NSX switch base NSX630H 4P without protection 630A 70kA/415VAC - 100kA/230VAC.
Technical Specifications
- Manufacturer part number (MPN)
- C63H4
- EAN / GTIN
- 3606482003224
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- ComPacT
- Product name
- ComPacT NSX
- Device short name
- NSX630H
- Product or component type
- Basic frame
- Device application
- Distribution
- Poles description
- 4P
- Neutral position
- Left
- [In] rated current
- 630 A at 40 °C
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- Network type
- AC
- Network frequency
- 50/60 Hz
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Utilisation category
- Category A
- Breaking capacity
- 85 kA at 240 V AC 50/60 Hz conforming to UL 508; 65 kA at 480 V AC 50/60 Hz conforming to UL 508; 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 20 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2; 20 kA at 600 V AC 50/60 Hz conforming to UL 508
- Breaking capacity code
- H 70 kA 415 V AC
- Control type
- Toggle
- mounting mode
- Fixed
- [Ui] rated insulation voltage
- 800 V AC 50/60 Hz conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-2
- [Ics] rated service breaking capacity
- 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2; 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2; 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2; 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
- Mechanical durability
- 15000 cycles conforming to IEC 60947-2
- Electrical durability
- 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2; 2000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2; 4000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2; 8000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 45 mm
- Protection type
- Without protection
- Width (W)
- 185 mm
- Height (H)
- 255 mm
- Depth (D)
- 110 mm
- Standards
- EN/IEC 60947-2; UL 60947-4-1
- Overvoltage category
- III
- Electrical shock protection class
- Class II on front face
- Pollution degree
- 3 conforming to IEC 60664-1
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 28
- Warranty (in months)
- 18
