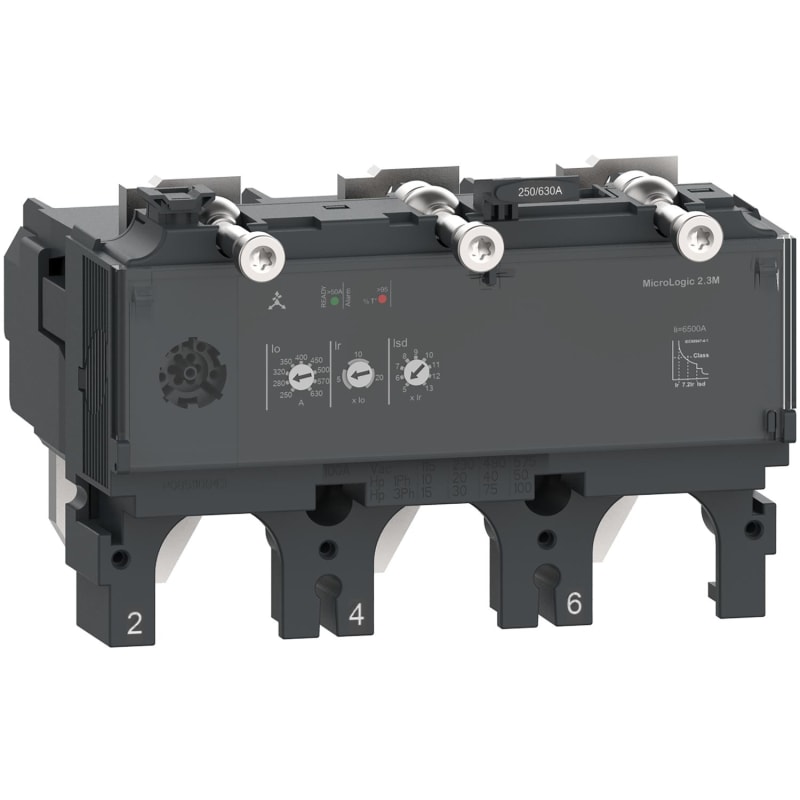

Schneider Electric Trip unit MicroLogic 2.3M, ComPacT NSX400/630, 3 poles, electronic basic protections, motor protection, 320A rating C4032M320

Schneider Electric C4032M320 Electronic motor protection for ComPacT NSX400/630-Micrologic 2.3 M 3P 320A.

Manufacturer part number (MPN)

C4032M320

EAN / GTIN

3606482003101

Sales unit

pcs

Package quantity

4 pcs

Number of poles

3P

Rated current

320 A

Trip unit

Micrologic 2.3

Range

ComPacT

Range of product

ComPacT NSX400...630

Product or component type

Trip unit

Trip unit name

MicroLogic 2.3 M

Trip unit technology

Electronic

Range compatibility

ComPacT NSX400; ComPacT NSX630

Device application

Motor

Poles description

3P

Protected poles description

3D

Trip unit protection functions

LSoI

Protection type

L : for overload protection (long time); So : for short time short-circuit protection with fixed delay; I : for instantaneous short-circuit protection

Trip unit rating

320 A at 65 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Motor tripping class

10; 20; 5

Complementary motor protection

Phase unbalance

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

160...320 A

Long-time protection delay adjustment type tr

Fixed

[tr] long-time protection delay adjustment range

120 s at 1.5 x Ir for trip class 5; 6.5 s at 6 x Ir for trip class 5; 5 s at 7.2 x Ir for trip class 5; 240 s at 1.5 x Ir for trip class 10; 13.5 s at 6 x Ir for trip class 10; 10 s at 7.2 x Ir for trip class 10; 480 s at 1.5 x Ir for trip class 20; 26 s at 6 x Ir for trip class 20; 20 s at 7.2 x Ir for trip class 20

Thermal memory

20 minutes before and after tripping

Short-time protection pick-up adjustment type Isd

Adjustable 9 settings

[Isd] Short-time protection pick-up adjustment range

5...13 x Ir

Short-time protection delay adjustment type tsd

Fixed

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

4800 A

Earth-leakage protection

Without

Zone selective interlocking ZSI

Without

Local signalling

Flashing LED (green) for ready to operate; LED 95 % Ith (red) for temperature over set point

Standards

EN/IEC 60947-2

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60947-1

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Warranty (in months)

18

Width

139.7 mm

Height

94.6 mm

Depth

112.6 mm

Rated permanent current Iu

320 A

Short-circuit release function

Delayed

External power supply required

No

Voltage type (operating voltage)

AC

With ground fault protection function

No

Rated switch current

320 A

End value adjustment range undelayed short-circuit release

4800 A

Type of motor protection

Electronic release

Voltage type for actuating

AC

Country of origin

France

HS Code

8536.30
