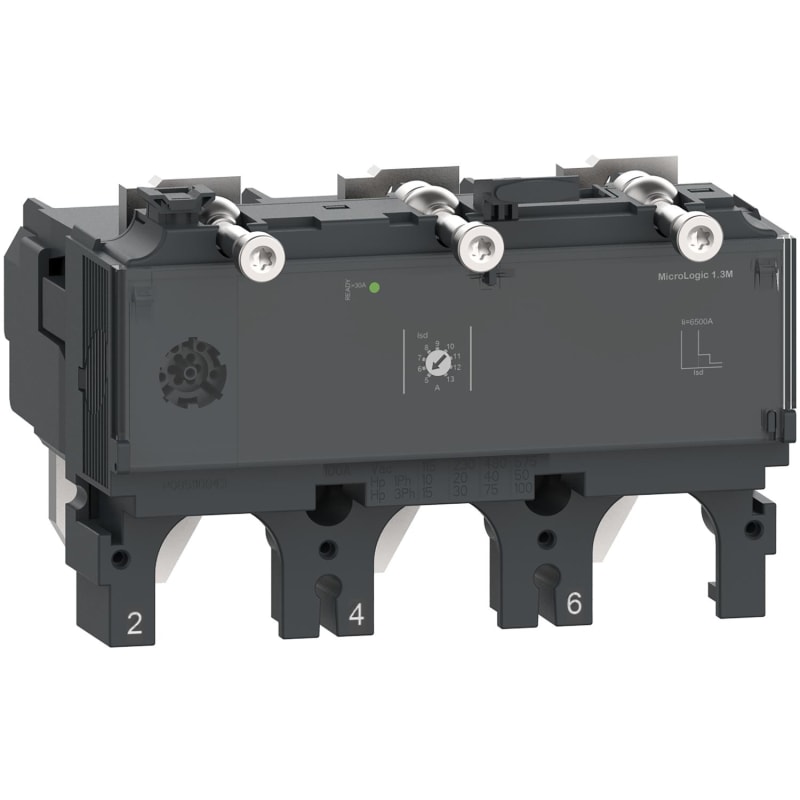

Schneider Electric Trip unit MicroLogic 1.3M, ComPacT NSX400/630, 3 poles, electronic magnetic protection, motor protection, 320A C4031M320

Schneider Electric C4031M320 Electronic short-circuit protection for ComPacT NSX400/630-Micrologic 1.3 M 3P 320A.

Manufacturer part number (MPN)

C4031M320

EAN / GTIN

3606482003088

Sales unit

pcs

Package quantity

4 pcs

Number of poles

3P

Rated current

320 A

Trip unit

Micrologic 1.3

Range

ComPacT

Range of product

ComPacT NSX400...630

Product or component type

Trip unit

Trip unit name

MicroLogic 1.3 M

Trip unit technology

Electronic

Range compatibility

ComPacT NSX400; ComPacT NSX630

Device application

Motor

Poles description

3P

Protected poles description

3D

Trip unit protection functions

SI

Protection type

S : for short time short-circuit protection with fixed delay; I : for instantaneous short-circuit protection

Trip unit rating

320 A at 65 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Short-time protection pick-up adjustment type Isd

Adjustable 9 settings

[Isd] Short-time protection pick-up adjustment range

1600 A; 1920 A; 2240 A; 2560 A; 2880 A; 3200 A; 3520 A; 3840 A; 4160 A

Short-time protection delay adjustment type tsd

Fixed

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

4800 A

Earth-leakage protection

Without

Zone selective interlocking ZSI

Without

Local signalling

Flashing LED (green) for ready to operate

Standards

EN/IEC 60947-2

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60947-1

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Warranty (in months)

18

Width

139.7 mm

Height

94.6 mm

Depth

112.6 mm

Rated permanent current Iu

320 A

Short-circuit release function

Delayed

External power supply required

No

Voltage type (operating voltage)

AC

With ground fault protection function

No

Rated switch current

320 A

End value adjustment range undelayed short-circuit release

4800 A

Operating voltage AC 50 Hz

690 V

Operating voltage AC 60 Hz

690 V

Type of motor protection

Electronic release

Voltage type for actuating

AC

Current setting undelayed short-circuit release

4800 A

Current setting delayed short-circuit release

1600–4160 A

Country of origin

France

HS Code

8536.30
