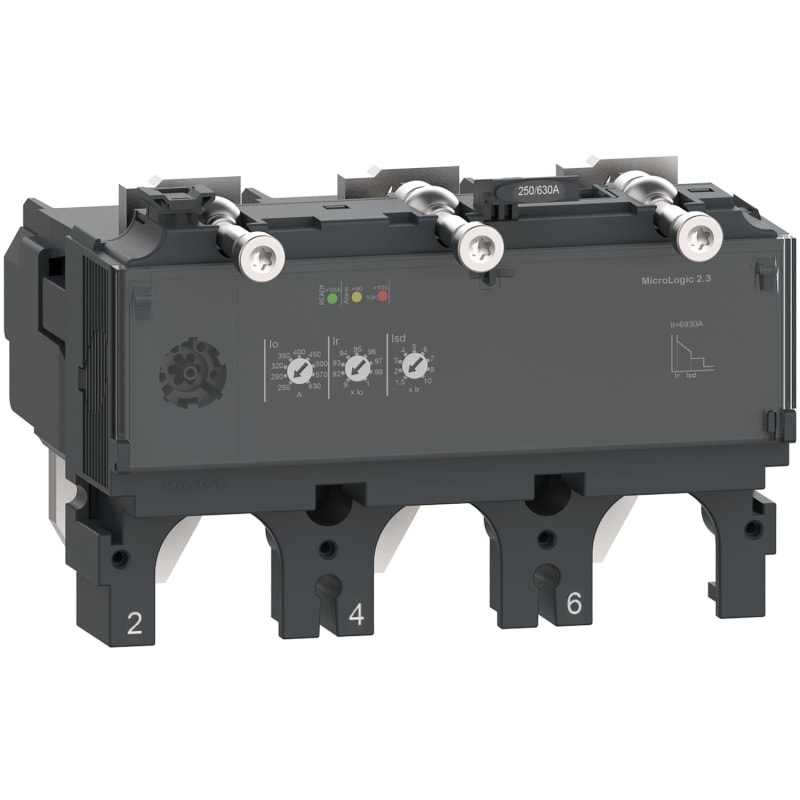

Schneider Electric Trip unit MicroLogic 2.3, ComPacT NSX630, 3 poles, electronic basic protections, 630A rating C6332D630

Schneider Electric C6332D630 Electronic protection for ComPacT NSX630-Micrologic 2.3 3P 630A.

Manufacturer part number (MPN)

C6332D630

EAN / GTIN

3606482003033

Sales unit

pcs

Package quantity

4 pcs

Rated current

630 A

Number of poles

3P

Range

ComPacT

Range of product

ComPacT NSX400...630

Product or component type

Trip unit

Trip unit name

MicroLogic 2.3

Trip unit technology

Electronic

Range compatibility

ComPacT NSX630

Device application

Distribution

Poles description

3P

Protected poles description

3D

Trip unit protection functions

LSoI

Protection type

L : for overload protection (long time); So : for short time short-circuit protection with fixed delay; I : for instantaneous short-circuit protection

Trip unit rating

630 A at 40 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

250...630 A

Long-time protection delay adjustment type tr

Fixed

[tr] long-time protection delay adjustment range

11 s at 7.2 x Ir; 16 s at 6 x Ir; 400 s at 1.5 x Ir

Thermal memory

20 minutes before and after tripping

Short-time protection pick-up adjustment type Isd

Adjustable 9 settings

[Isd] Short-time protection pick-up adjustment range

1.5...10 x Ir

Short-time protection delay adjustment type tsd

Fixed

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

6900 A

Earth-leakage protection

Without

Zone selective interlocking ZSI

Without

Local signalling

Flashing LED (green) for ready to operate; LED 105 % Ir (red) for overload; LED 90 % Ir (orange) for overload

Standards

EN/IEC 60947-2

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60947-1

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Warranty (in months)

18

Width

139.7 mm

Height

94.6 mm

Depth

112.6 mm

Rated permanent current Iu

630 A

Short-circuit release function

Delayed

Overload release current setting

250–630 A

External power supply required

No

Voltage type (operating voltage)

AC

With ground fault protection function

No

Rated switch current

630 A

End value adjustment range undelayed short-circuit release

6900 A

Operating voltage AC 50 Hz

690 V

Operating voltage AC 60 Hz

690 V

Type of motor protection

Electronic release

Voltage type for actuating

AC

Current setting undelayed short-circuit release

6900 A

Current setting delayed short-circuit release

375–6300 A

Country of origin

France

HS Code

8536.30
