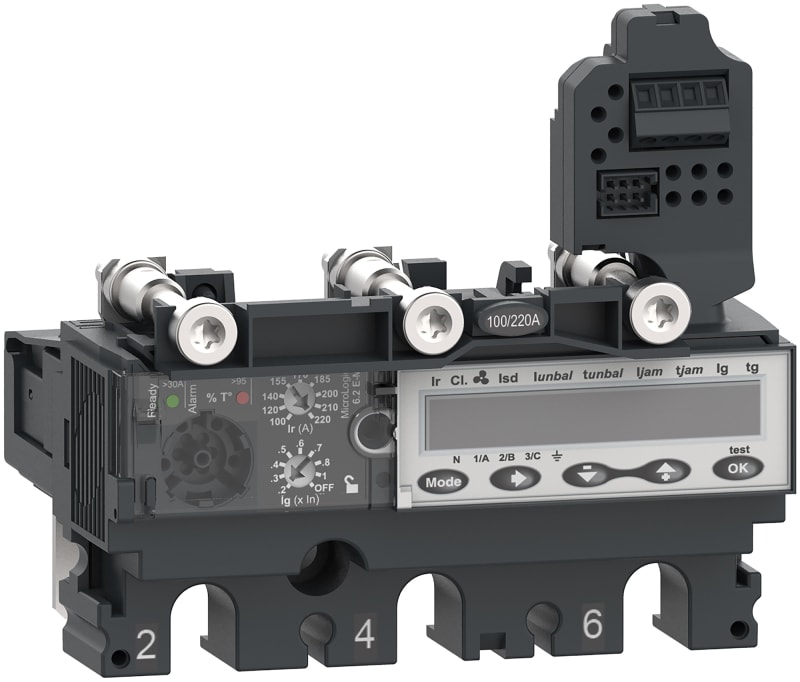

Schneider Electric Trip unit MicroLogic 6.2EM, ComPacT NSX160/250, 3 poles, basic and ground fault protections, motor, energy meter, 150A C1636M150

Schneider Electric C1636M150 Electronic protection for ComPacT NSX circuit breaker-Micrologic 6.2 EM 3P 150A.

Manufacturer part number (MPN)

C1636M150

EAN / GTIN

3606482000469

HS code

8536.90

Sales unit

pcs

Package quantity

11 pcs

Number of poles

3P

Range

ComPacT

Range of product

ComPacT NSX100...250

Product or component type

Trip unit

Trip unit name

MicroLogic 6.2 E-M

Trip unit technology

Electronic

Range compatibility

ComPacT NSX160; ComPacT NSX250

Device application

Motor

Poles description

3P

Protected poles description

3D

Trip unit protection functions

LSIG

Protection type

L : for overload protection (long time); S : for short time short-circuit protection with fixed delay; I : for instantaneous short-circuit protection; G : for ground fault protection

Trip unit rating

150 A at 65 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Motor tripping class

10; 30; 5; 20

Complementary motor protection

Protracted starting time; Stalled rotor; Current unbalance; Underload

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

70...150 A

Long-time protection delay adjustment type tr

Adjustable

[tr] long-time protection delay adjustment range

120 s at 1.5 x Ir for trip class 5; 6.5 s at 6 x Ir for trip class 5; 5 s at 7.2 x Ir for trip class 5; 240 s at 1.5 x Ir for trip class 10; 13.5 s at 6 x Ir for trip class 10; 10 s at 7.2 x Ir for trip class 10; 480 s at 1.5 x Ir for trip class 20; 26 s at 6 x Ir for trip class 20; 20 s at 7.2 x Ir for trip class 20; 720 s at 1.5 x Ir for trip class 30; 38 s at 6 x Ir for trip class 30; 30 s at 7.2 x Ir for trip class 30

Thermal memory

20 minutes before and after tripping

Short-time protection pick-up adjustment type Isd

Adjustable 9 settings

[Isd] Short-time protection pick-up adjustment range

5...13 x Ir

Short-time protection delay adjustment type tsd

Fixed

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

2250 A

Ground-fault protection pick-up adjustment type Ig

Adjustable

[Ig] ground-fault protection pick-up adjustment range

0.2...1 x In for In = 50 A; Ig enable on/off

Ground-fault protection time delay adjustment type tg

Adjustable

[tg] ground-fault protection time delay adjustment range

0…0.4 s

Earth-leakage protection

Without

Zone selective interlocking ZSI

With

Local signalling

Flashing LED (green) for ready to operate; LED 95 % Ith (red) for temperature over set point

Display type

LCD display

Type of measurement

Energy meter

Communication of data

Energy metering; Protection and alarm settings; Time-stamped histories and event tables; Instantaneous and demand values; Maintenance indicators; Demand current and power; Power quality; Maximeters/minimeters

Electrical data recording

Maintenance indicators

Standards

EN/IEC 60947-2

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60947-1

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

HS Code

8536.90

• EAN 3606482000469
• SAP 1200533585
• Code 82687728
