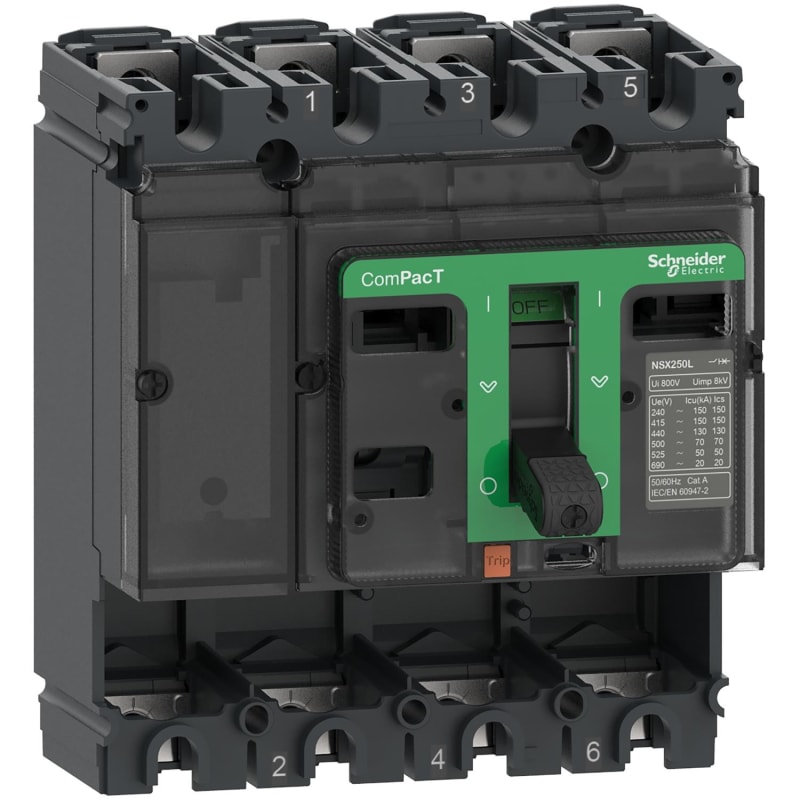

Schneider Electric Circuit breaker basic frame, ComPacT NSX100B, 25KA/415VAC, 4 poles, 100A frame rating, without trip unit C10B4

Schneider Electric C10B4 Circuit breaker switch base ComPacT NSX100B 4P without Protection 100A 25kA/415VAC - 40kA/230VAC.

Manufacturer part number (MPN)

C10B4

EAN / GTIN

3606481999740

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

Number of poles

4P

Range

ComPacT

Product name

ComPacT NSX

Device short name

NSX100B

Product or component type

Basic frame

Device application

Distribution

Poles description

4P

Neutral position

Left

[In] rated current

100 A at 40 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category A

Breaking capacity

15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

B 25 kA 415 V AC

Control type

Toggle

mounting mode

Fixed

[Ui] rated insulation voltage

800 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947-2

[Ics] rated service breaking capacity

20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2; 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 7.5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2

Mechanical durability

50000 cycles conforming to IEC 60947-2

Electrical durability

10000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2; 20000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2; 30000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2; 50000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2

Mounting support

Backplate

Upside connection

Front

Downside connection

Front

Connection pitch

35 mm

Protection type

Without protection

Width (W)

140 mm

Height (H)

161 mm

Depth (D)

86 mm

Standards

EN/IEC 60947-2; UL 60947-4-1

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60664-1

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481999740
• SAP 1200533532
• Code 82686518
