Top plate IP55 PrismaSeT P B400 D400
Pricing
Request a quote
We reply within 24 hours
Product Description

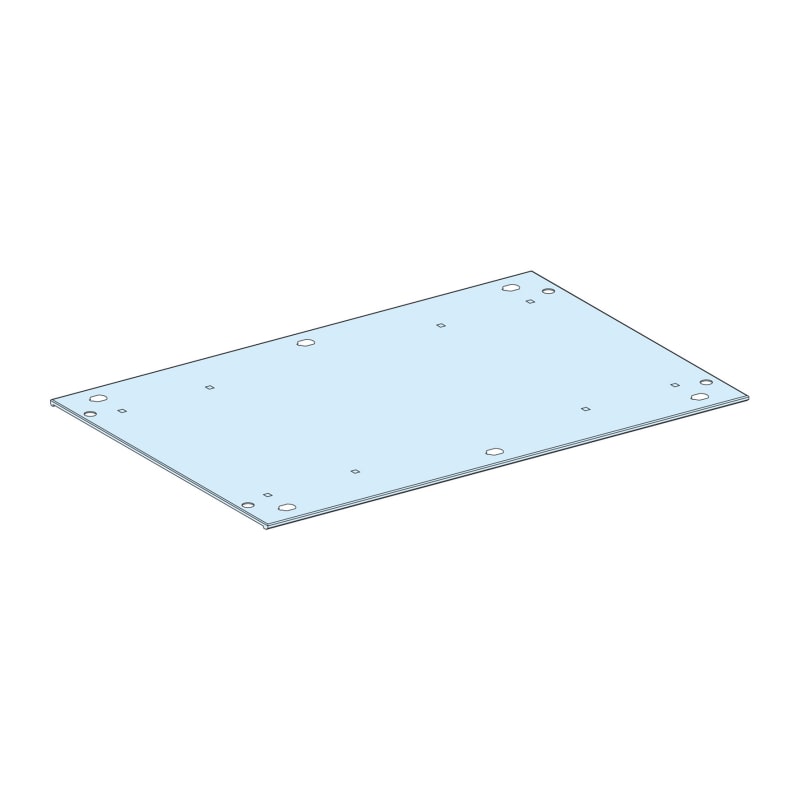

Schneider Electric LVS08454 Top plate IP55 PrismaSeT P-width 400mm depth 400mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08454
- EAN / GTIN
- 3606481877307
- Sales unit
- pcs
- IP rating
- IP55
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Roof
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure
- installation description
- Cubicle - width 400 mm, depth 400 mm
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Special colour options
- Yes
- Width
- 400 mm
- Depth
- 400 mm
- Product weight
- 1.82 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP55 for enclosure
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 42.000 cm
- Package 1 Length
- 43.000 cm
- Package 1 Weight
- 1.818 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 20
- Package 2 Height
- 33.000 cm
- Package 2 Width
- 86.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 48.360 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
- With cable entry
- No
- Suitable for enclosure building width
- 400 mm
- Suitable for enclosure building depth
- 400 mm
- With de-aeration
- No
- Suitable for outdoor set-up
- No
- Surface finishing
- Powder coating
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- No
- Suitable for outdoor installation
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481877307
- SAP 1200547569
- Code 82880122
Product Documentation
