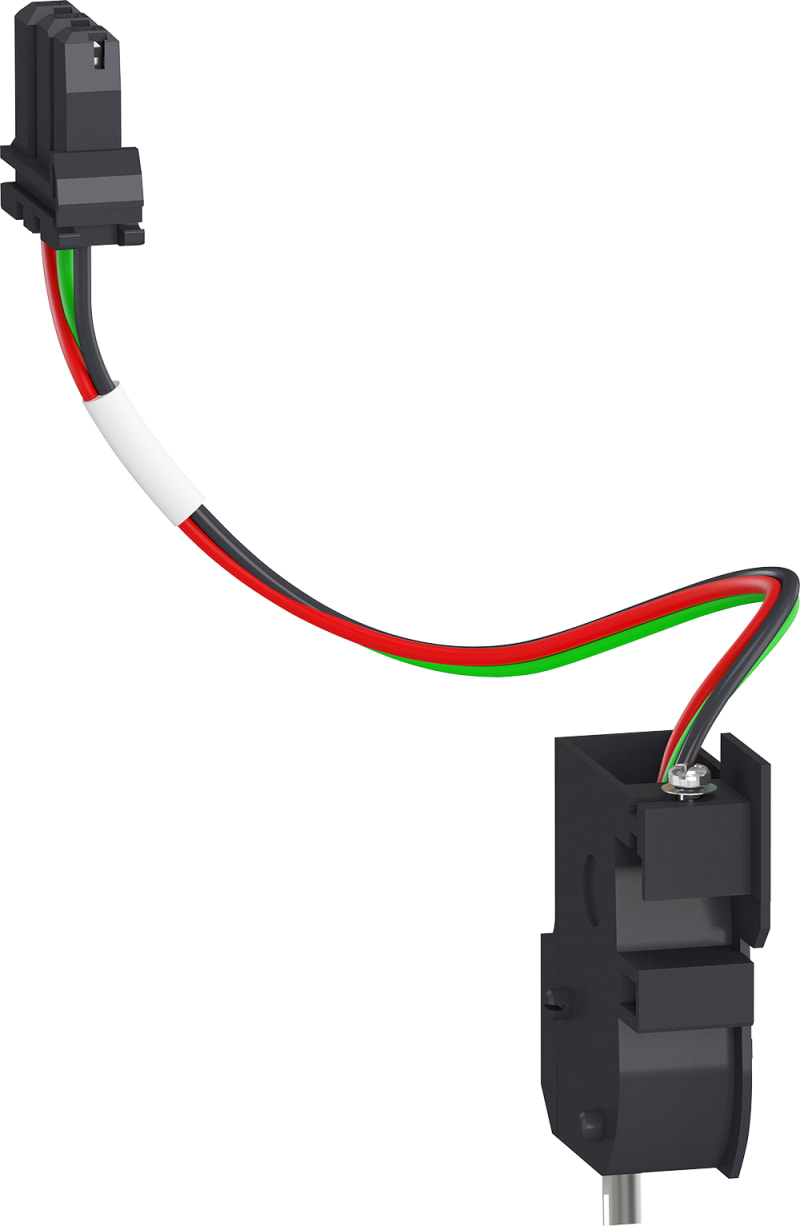

Schneider Electric MN undervoltage release, diagnostics, Masterpact MTZ1/2/3, 200/250 VAC 50/60 Hz, 200/250 VDC, spare part LV836671SP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV836671SP Undervoltage coil diagnose MN 200/250 VAC/DC for Masterpact MTZ, reserve.
Technical Specifications
- Manufacturer part number (MPN)
- LV836671SP
- EAN / GTIN
- 3606481186751
- Sales unit
- pcs
- Maximum response time
- 45 ms on opening for MasterPact MTZ1; 95 ms on opening for MasterPact MTZ2; 95 ms on opening for MasterPact MTZ3
- Range
- MasterPact
- Device short name
- MN diag
- Product or component type
- Undervoltage release
- Device application
- Safety
- Range compatibility
- Masterpact MasterPact MTZ1 circuit breaker; Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker
- Voltage release type
- Instantaneous
- Control type
- Communicating
- Signalling function
- MN open; Coil powered; Error
- [Un] voltage power supply
- 200...250 V AC 50/60 Hz; 200...250 V DC
- Threshold tripping voltage
- 0.35...0.7 Un opening; 0.85 Un closing
- Holding power consumption
- 4.5 W
- Circuit breaker mounting mode
- Fixed/drawout
- Provided equipment
- 1 instruction sheet
- Offer type
- Spare part
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.200 cm
- Package 1 Width
- 6.000 cm
- Package 1 Length
- 8.200 cm
- Package 1 Weight
- 234.000 g
- Country of origin
- FR
- Warranty (in months)
- 18
- Delayed
- No
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- No
- Type of electric connection
- Flat plug-in connection
- Rated control supply voltage AC 50 Hz
- 200–250 V
- Rated control supply voltage AC 60 Hz
- 200–250 V
- Rated control supply voltage DC
- 200–250 V
- Suitable for motor safety switch
- Yes
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC/DC
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481186751
- SAP 1200050723
- Code 81878758
Product Documentation
