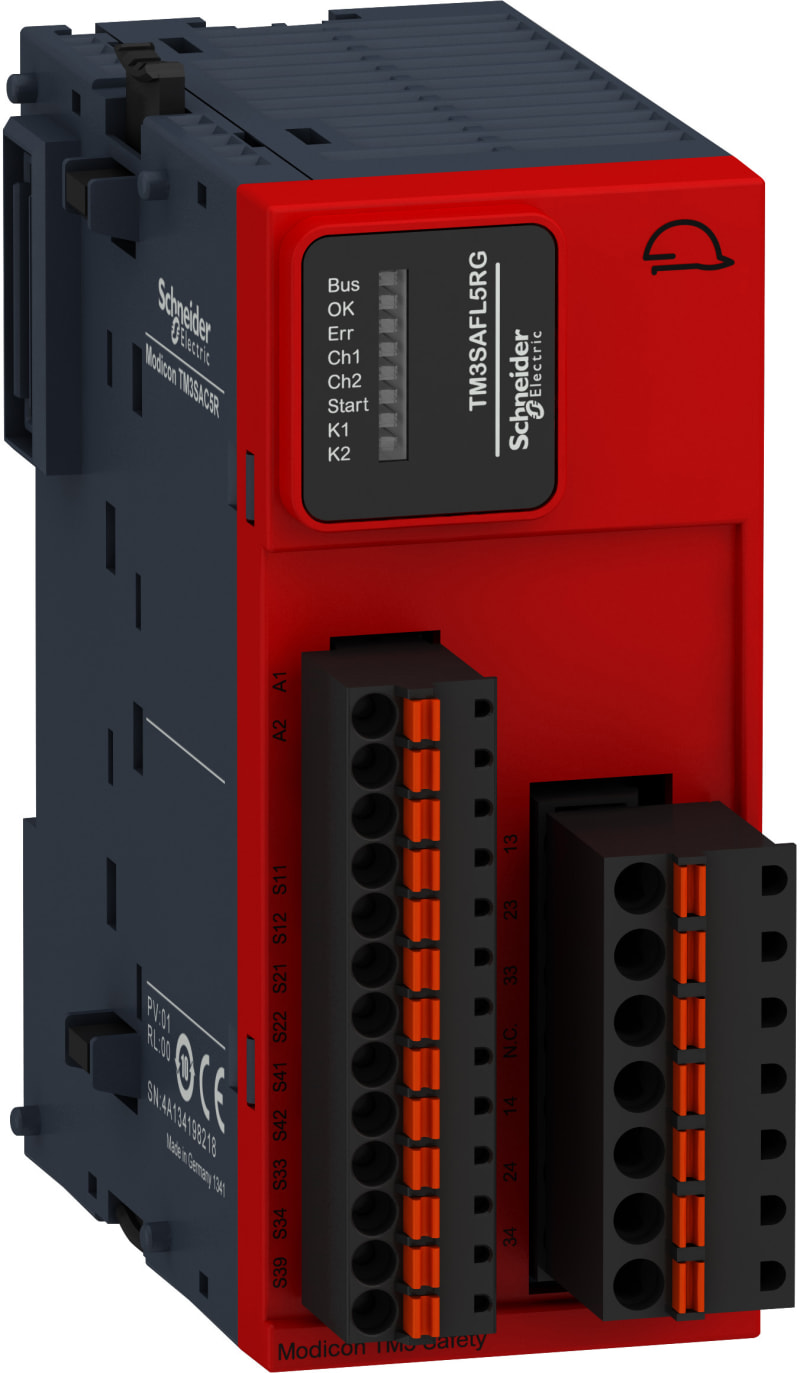

Schneider Electric Modicon TM3 Safety module - 2 Function, Cat 3 PL d/SIL CL2 (spring) 24VDC TM3SAFL5RG

Schneider Electric TM3SAFL5RG Accessories Modicon PLS - Safety Module for M2xx - 2 functions.

Manufacturer part number (MPN)

TM3SAFL5RG EAN / GTIN: 3606485393025 Sales unit: pcs Package quantity: 18 pcs Range of product: Modicon TM3 Safety Product or component type: Safety module Device short name: TM3SAFL Safety module application: For emergency stop, switch and safety light curtain monitoring Function of module: Emergency stop monitoring 2-channel wiring; Monitoring of a movable guard with 2 switches and automatic start; Monitoring of a movable guard; Multiple emergency stop monitoring 2-channel wiring; Proximity sensor monitoring PNP/PNP; Monitoring of electro-sensitive protection equipment (ESPE) PNP/PNP Safety level: Can reach PL d/category 3 conforming to ISO 13849-1: 2008; Can reach PL d/category 3 conforming to ISO 13849-2: 2012; Can reach SILCL 2 conforming to IEC 62061: 2005; Can reach SIL 2 conforming to IEC 61508: 2010 Safety reliability data: DC = 95 % conforming to ISO 13849-1; PFHd = 5E-9 1/h conforming to IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A; PFHd = 30E-9 1/h conforming to IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A; MTTFd = 500 years conforming to ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A; MTTFd = 85 years conforming to ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A; SFF = 95 % conforming to IEC 61508-1; HFT = 1 conforming to IEC 61508-1; Type = A conforming to IEC 61508-1 Synchronisation time between inputs: Unlimited Connections - terminals: Captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34; Captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34; Captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34; Captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34; Captive spring terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34; Captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals; Captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals; Captive spring terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals; Captive spring terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals Output type: Relay instantaneous opening, 3 NO circuit(s), potential free Number of safety circuits: 3 NO for relay instantaneous opening Maximum switching voltage: 230 V utilisation category AC-15 at 50 Hz (relay instantaneous opening); 24 V utilisation category DC-13 (relay instantaneous opening) [Us] rated supply voltage: 24 V - 15...20 % DC Power consumption in W: 0.2 W at 5 V DC; 3.6 W at 24 V DC Input protection type: Internal, electronic [Uc] control circuit voltage: 24 V DC Maximum cable distance between devices: 30 m Breaking capacity: 360 VA holding AC-15 B300 relay output; 3600 VA inrush AC-15 B300 relay output Output thermal current: 6 A per relay for relay output [Ith] conventional free air thermal current: 18 A Associated fuse rating: 4 A gG or gL for relay output conforming to IEC 60947-5-1; 6 A fast blow for relay output conforming to IEC 60947-5-1 minimum output current: 10 mA for relay output Output voltage: 10 V relay output Maximum response time on input open: 40 ms [Ui] rated insulation voltage: 300 V (pollution degree 2) conforming to IEC 60647-5-1 [Uimp] rated impulse withstand voltage: 4 kV overvoltage category III conforming to IEC 60647-5-1 Current consumption: 100 mA at 24 V DC external supply Local signalling: 8 LEDs (green/red) for user Electrical connection: Spring terminal Product compatibility: Safety light curtains conforming to EN/IEC 61496-1 (type 4) Standards: ISO 13849-1:2008; ISO 13849-2:2012; IEC 62061:2005; IEC 61508:2010; IEC 60947-5-1:2010; IEC 61131-2:2007; IEC 60204-1:2005; IEC 60204-1:2009/A1; IEC 61010-1:2010; EN 50581:2012 Product certifications: CSA 61010-2-201 (pending); RCM; UL 61010-2-201; EAC; ANSI Haz Loc Class 1 Division 2 (pending); CSA Haz Loc Class 1 Division 2 (pending); TÜV Marking: RCM; UL; CSA; EAC; CE; TÜV; EFUP 10 Electromagnetic compatibility: Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3; Magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8; Electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4; 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5; Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6; Radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011; Radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011 Mounting support: Top hat type TH35-7.5 rail conforming to IEC 60715; Top hat type TH35-15 rail conforming to IEC 60715; wall mount using attached fasteners Height: 94 mm Depth: 73 mm Width: 43.7 mm Product weight: 0.19 kg Resistance to electrostatic discharge: 8 kV in air conforming to IEC 61000-4-2; 6 kV on contact conforming to IEC 61000-4-2 Resistance to electromagnetic fields: 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3; 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3 Resistance to magnetic fields: 30 A/m 50/60 Hz conforming to IEC 61000-4-8 Resistance to fast transients: 3 kV for power lines (DC) (DC) conforming to IEC 61000-4-4; 2 kV for I/O lines conforming to IEC 61000-4-4 Surge withstand: 1 kV power lines (DC) differential mode conforming to IEC 61000-4-5 DC; 1 kV power lines (DC) common mode conforming to IEC 61000-4-5 DC Resistance to conducted disturbances: 10 V 0.15...80 MHz conforming to IEC 61000-4-6 Electromagnetic emission: Radiated emissions - test level: 50 dBµV/m class A ( 24 V DC) at 30…230 Hz conforming to IEC 61131-3; Radiated emissions - test level: 57 dBµV/m class A ( 24 V DC) at 230…1000 Hz conforming to IEC 61131-3 Ambient air temperature for operation: -10…55 °C horizontal installation Ambient air temperature for storage: -25…70 °C Relative humidity: 10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage) IP degree of protection: IP20 (terminals) conforming to IEC 60529 Pollution degree: 2 Operating altitude: 0...2000 m Storage altitude: 0…3000 m Vibration resistance: +/- 3.5 mm (f= 5…150 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Mechanical robustness: Bumps 6 ms 300 shocks (25 gn) conforming to IEC 60068-2-27 Number of Units in Package 1: 1 Number of Units in Package 2: 18 Country of origin: FR Warranty (in months): 18 Power consumption: 1.1 W Rated switch current: 1.1 A Voltage type (operating voltage): DC Type of control voltage 1: DC Type of control voltage 2: DC Suitable for monitoring of position switches: Yes Suitable for monitoring of emergency-stop circuits: Yes Suitable for monitoring of valves: No Suitable for monitoring of tactile sensors: Yes Suitable for monitoring of magnetic switches: Yes Suitable for monitoring of proximity switches: Yes Type of electric connection: Spring clamp connection Suitable for rail mounting: Yes Voltage type for actuating: DC With detachable clamps: No With start input: No With muting function: No With feedback circuit: No Number of outputs, safety related, undelayed, with contact: 3 Type of safety according to IEC 61496-1: 4 Stop category according to IEC 60204: 1 Performance level according to EN ISO 13849-1: Level d SIL according to IEC 61508: 2 With approval for BG BIA: No With approval according to UL: Yes

HS Code

8536.41

• EAN 3606485393025
• SAP 1000601515
