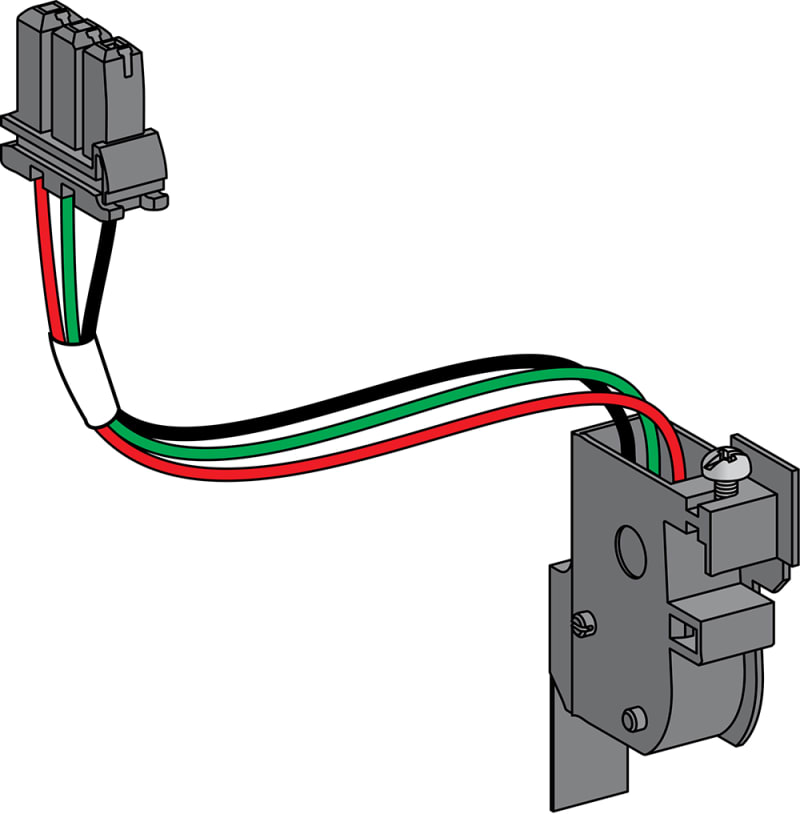

Schneider Electric MN undervoltage release, standard, Masterpact MTZ1/2/3, 200/250 VAC 50/60 Hz, 200/250 VDC, spare part LV833671SP

Schneider Electric LV833671SP — MN undervoltage release, standard, Masterpact MTZ1/2/3, 200/250 VAC 50/60 Hz, 200/250 VDC, spare part.

Manufacturer part number (MPN)

LV833671SP

EAN / GTIN

3606480932601

Sales unit

pcs

Package quantity

120 pcs

Maximum response time

45 ms on opening for MasterPact MTZ1; 95 ms on opening for MasterPact MTZ2; 95 ms on opening for MasterPact MTZ3

Range

MasterPact

Device short name

MN

Product or component type

Undervoltage release

Device application

Safety

Range compatibility

Masterpact MasterPact MTZ1 circuit breaker; Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker

Voltage release type

Instantaneous

Control type

Standard

[Un] voltage power supply

200...250 V AC 50/60 Hz; 200...250 V DC

Threshold tripping voltage

0.35...0.7 Un opening; 0.85 Un closing

Holding power consumption

4.5 W

Circuit breaker mounting mode

Fixed/drawout

Provided equipment

1 instruction sheet

Offer type

Spare part

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.000 cm

Package 1 Width

3.600 cm

Package 1 Length

8.600 cm

Package 1 Weight

169.000 g

Unit Type of Package 2

S04

Number of Units in Package 2

20

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

4.012 kg

Country of origin

FR

Warranty (in months)

18

Delayed

No

Suitable for off-load switch

Yes

Suitable for overload relay

No

Type of electric connection

Flat plug-in connection

Rated control supply voltage AC 50 Hz

200–250 V

Rated control supply voltage AC 60 Hz

200–250 V

Rated control supply voltage DC

200–250 V

Suitable for motor safety switch

Yes

Suitable for power circuit breaker

Yes

Voltage type for actuating

AC/DC

HS Code

8536.30
