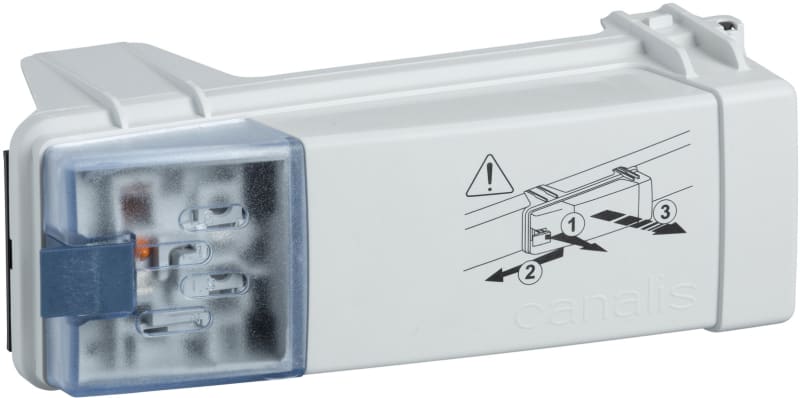

Schneider Electric Canalis - tap-off unit - 16A - phase selection - L+N+PE KBC16DCB21

Schneider Electric KBC16DCB21 Canalis KBC outlet plugs 10-16A. with or without fasevalg is used for light and st.

Manufacturer part number (MPN)

KBC16DCB21

EAN / GTIN

3606480002229

HS code

8544.42

Sales unit

pcs

Package quantity

10 pcs

Range

Canalis

Offer type

Control system

Product or component type

Connector

Device application

Lighting; Power socket distribution

Range compatibility

Canalis KBA busbar trunking; Canalis KBB busbar trunking

[Ie] rated operational current

16 A at 35 °C

[Ue] rated operational voltage

230...240 V

Network frequency

50/60 Hz

Communication port protocol

DALI; KNX

Tap-off unit polarity

L1 + N + PE; L2 + N + PE; L3 + N + PE

Tap-off unit connector type

With phase selection

Tap-off lock colour

Blue

Colour

Cream (RAL 9001)

[Uimp] rated impulse withstand voltage

4 kV

[Ui] rated insulation voltage

690 V

Protection type

Without protection

Width

168 mm

Depth

33 mm

Height

53 mm

Product weight

90 g

Quantity per set

Set of 10

Standards

EN/IEC 61439-1; EN/IEC 61439-6

IP degree of protection

IP55 conforming to EN/IEC 60529

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

440

Country of origin

FR

Warranty (in months)

18

HS Code

8544.42

• EAN 3606480002229
• SAP 1000285153
• Code 8291476
