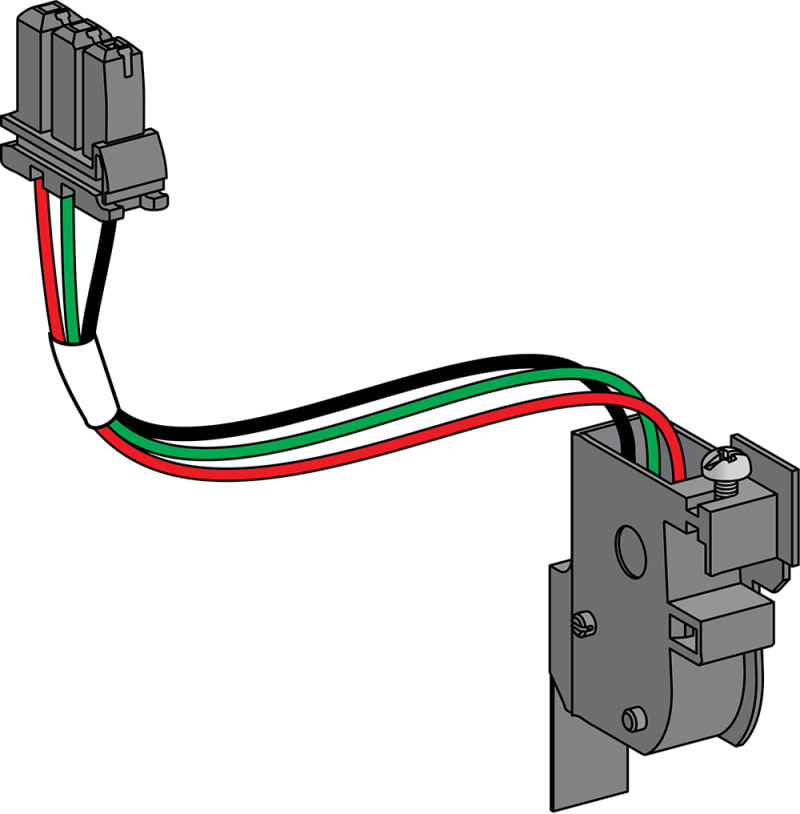

Schneider Electric MN undervoltage release, standard, Masterpact MTZ1/2/3, 48 VAC 50/60 Hz, 48/60 VDC, spare part LV833669SP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV833669SP Undervoltage coil MN 48/60VDC 48VAC for Masterpact MTZ, reserve.
Technical Specifications
- Manufacturer part number (MPN)
- LV833669SP
- EAN / GTIN
- 3606480932588
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 48/60 V DC
- Maximum response time
- 45 ms on opening for MasterPact MTZ1; 95 ms on opening for MasterPact MTZ2; 95 ms on opening for MasterPact MTZ3
- Range
- MasterPact
- Device short name
- MN
- Product or component type
- Undervoltage release
- Device application
- Safety
- Range compatibility
- Masterpact MasterPact MTZ1 circuit breaker; Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker
- Voltage release type
- Instantaneous
- Control type
- Standard
- [Un] voltage power supply
- 48 V AC 50/60 Hz; 48...60 V DC
- Threshold tripping voltage
- 0.35...0.7 Un opening; 0.85 Un closing
- Holding power consumption
- 4.5 W
- Circuit breaker mounting mode
- Fixed/drawout
- Provided equipment
- 1 instruction sheet
- Offer type
- Spare part
- Country of origin
- FR
- Warranty (in months)
- 18
- Delayed
- No
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- No
- Type of electric connection
- Flat plug-in connection
- Rated control supply voltage AC 50 Hz
- 48 V
- Rated control supply voltage AC 60 Hz
- 48 V
- Rated control supply voltage DC
- 48–60 V
- Suitable for motor safety switch
- Yes
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC/DC
