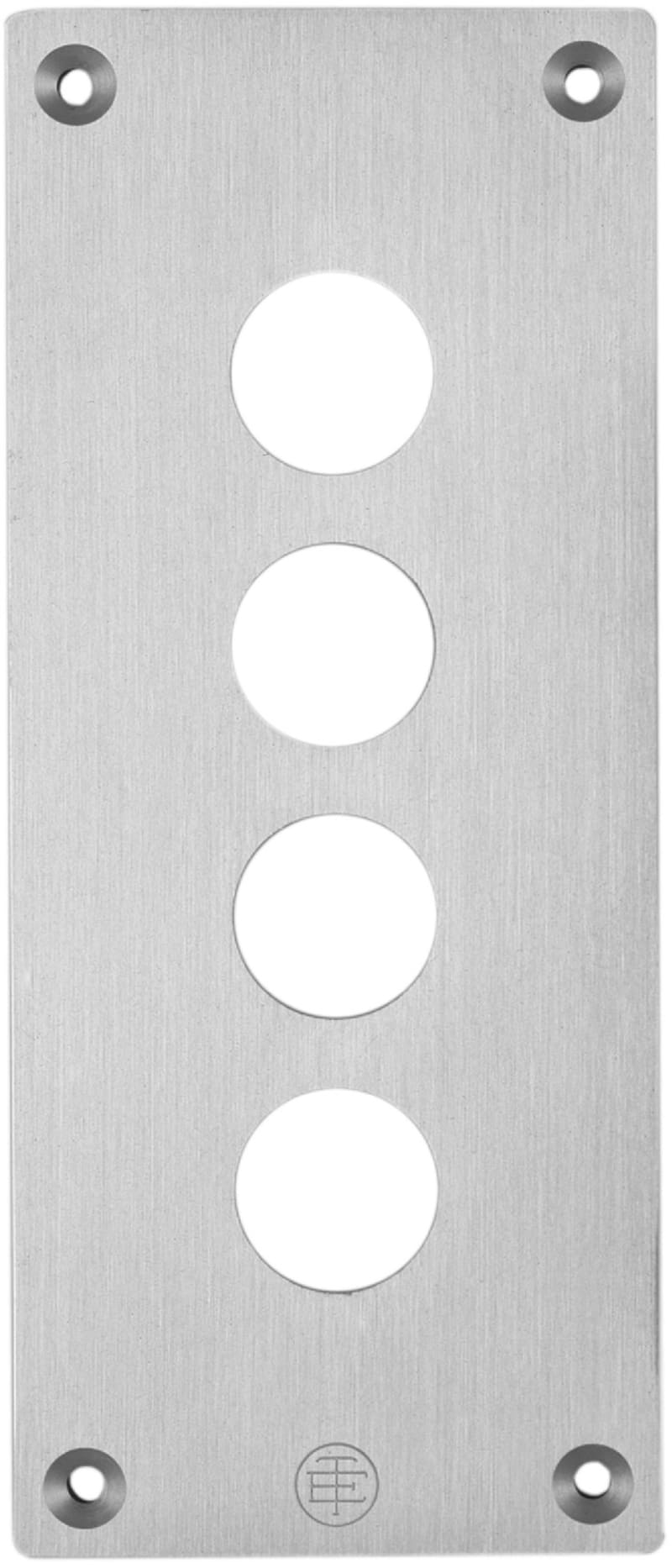

Plate FOR RECESSED (XAPE304)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XAPE304 Front plate For Recessed Mounting 4 Hole.
Technical Specifications
- Manufacturer part number (MPN)
- XAPE304
- EAN / GTIN
- 3389110628067
- Sales unit
- pcs
- Range of product
- Harmony XAP
- Product or component type
- Front plate with fixing screws
- Device short name
- XAPE
- Product destination
- For Ø 22 mm control and signalling units
- Product front plate size
- 72 x 171 mm
- Number of cut-out
- 4 cut-outs
- Material
- Anodised aluminium
- Device mounting
- Flush
- IP degree of protection
- IP65 conforming to IEC 60529; IP65 conforming to NF C 20-010
- Resistance to chemical agents
- Good resistant to acetone; Good resistant to alcohols; Good resistant to chloride and fluoride solvents; Good resistant to diluted mineral acids; Good resistant to oils and petrol; Good resistant to organic acids; Good resistant to salts
- Product weight
- 0.115 kg
- Protective treatment
- TH; TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Overvoltage category
- Class I conforming to IEC 60536; Class I conforming to NF C 20-030
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.9 cm
- Package 1 Width
- 13.7 cm
- Package 1 Length
- 21.8 cm
- Package 1 Weight
- 137.0 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 21
- Package 2 Height
- 15.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 3.195 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 72 mm
- Height
- 171 mm
- Diameter openings
- 22 mm
- Number of command positions
- 4
- Degree of protection (IP)
- IP65
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3389110628067
- SAP 1000063551
- Code 8727005
