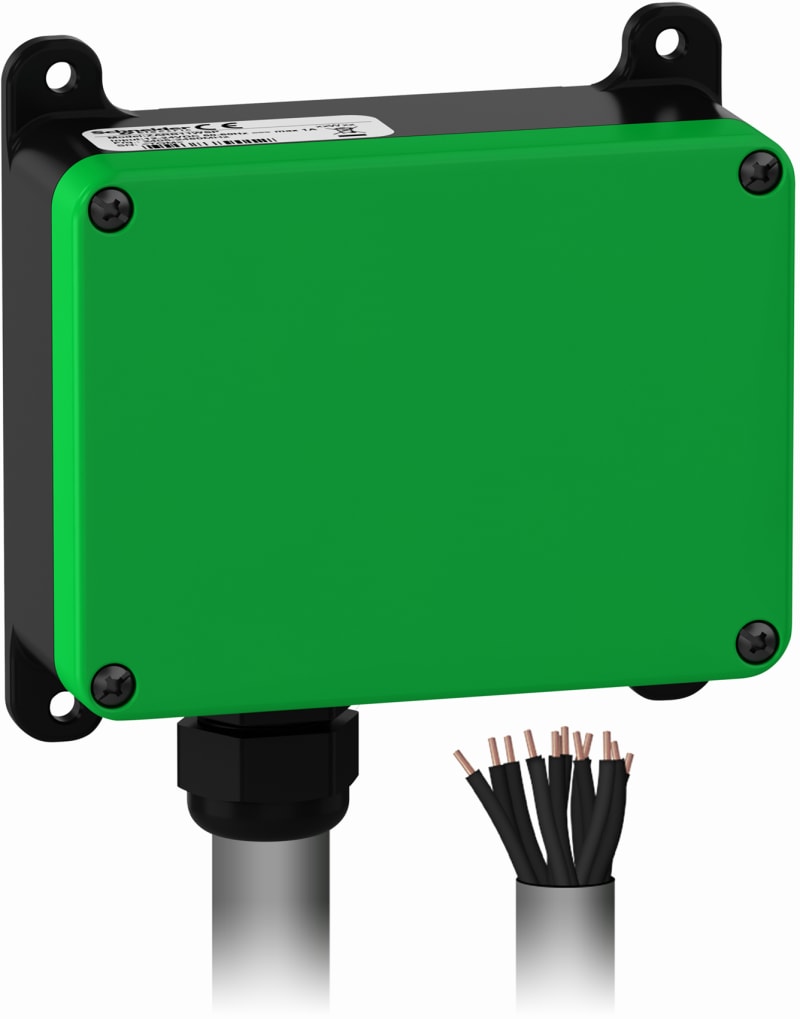

Schneider Electric Receiver, Harmony pocket remote, 5 relays output, pre-wired 1.5 m cable, 12...24 V DC ZARB05WSP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZARB05WSP Harmony pocket remote wireless receiver with 5 relayer on 10A and 1,5 meter cable and 12-24VDC supply.
Technical Specifications
- Manufacturer part number (MPN)
- ZARB05WSP
- EAN / GTIN
- 3606481499417
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Voltage
- 12-24 V DC
- Range of product
- Harmony Pocket Remote
- Product or component type
- Base station
- Device short name
- ZARB
- cable entry
- Cable pre-wired
- Material
- ABS + PC
- [Us] rated supply voltage
- 12...24 V DC
- Provided equipment
- Internal antenna
- Number of relays
- 5
- Relay type
- Motion relay outputs with 5 C/O contact ; Auxiliary relay outputs
- Safety outputs
- 2 NC relay outputs
- Maximum switching current
- 10 A AC
- Maximum switching voltage
- 240 V AC (+/- 20 %)
- Communication network type
- Wireless
- Transmission frequency
- 2.4 GHz
- Maximum sensing distance
- 300 m in free field
- fixing mode
- 4 holes
- Electrical durability
- 100000 cycles
- Mechanical durability
- 10000000 cycles
- Width
- 120 mm
- Height
- 117 mm
- Depth
- 51 mm
- Product weight
- 0.40 kg
- IP degree of protection
- IP66
- Radio agreement
- FCC; IC
- Relative humidity
- 0…97 %
- Ambient air temperature for operation
- -20…55 °C
- Ambient air temperature for storage
- -40…70 °C
- Product certifications
- CE
- Country of origin
- CN
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481499417
- SAP 1200455617
- Code 82510493
Product Documentation
