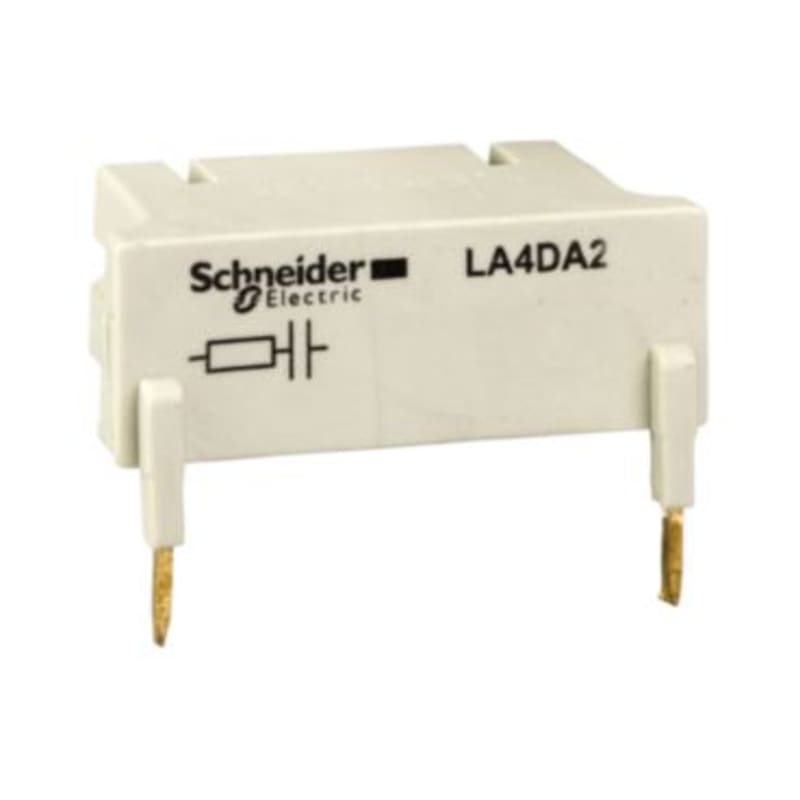

Schneider Electric TeSys D - suppressor module - RC circuit - 110...240 V AC LA4DA2U
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LA4DA2U Rc-Element 110/240V D09-D95.
Technical Specifications
- Manufacturer part number (MPN)
- LA4DA2U
- EAN / GTIN
- 3389110233063
- Sales unit
- pcs
- Package quantity
- 78 pcs
- Voltage
- 110/240 V
- Range
- TeSys
- Device short name
- LA4D
- Product or component type
- Suppressor module
- Product compatibility
- 3P LC1D80...D150; 4P LC1D80004...D115004; 4P LC1D40008...D80008
- Mounting location
- Top
- mounting mode
- By screws
- Suppressor technology
- RC circuit
- [Uc] control circuit voltage
- 110...240 V AC 50/60 Hz
- Maximum peak voltage
- 3 Uc
- Product weight
- 0.018 kg
- Standards
- IEC 60947-5-1; EN 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB/T 14048.5
- Product certifications
- UL; CSA
- IP degree of protection
- IP2X conforming to IEC 60529
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 78
- Number of Units in Package 3
- 2496
- Country of origin
- FR
- Warranty (in months)
- 18
- Function
- RC-element
- Rated control supply voltage AC 50 Hz
- 110–240 V
- Rated control supply voltage AC 60 Hz
- 110–240 V
- Voltage type (operating voltage)
- AC
- With LED indication
- No
- Operating voltage AC 50 Hz
- 110–240 V
- Operating voltage AC 60 Hz
- 110–240 V
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3389110233063
- SAP 1000009159
- Code 884451
Product Documentation
More from Schneider Electric
Schneider Electric
Mounting frame S-One with dust cover, black
306580027
Schneider Electric
Front ALUMIN.F 40 AN L=2,5
5580030
Schneider Electric
Schneider Electric Contactor, TeSys K, 3P, AC-3/AC-3E,440V 12A, aux. 1NC, 230V AC coil, screw clamp terminals LC1K1201P7
Schneider Electric
Schneider Electric Miniature plug-in relay, 12 A, 2 CO, 24 V DC RXM2AB1BD
Schneider Electric
Schneider Electric LV431543 standard motor mechanism module MT250, ComPact NSX250, 24/30 VDC
Schneider Electric
Schneider Electric XACB9112 booted head for pushbutton XAC-B - black - 4 mm, -25..+70 °C
Schneider Electric
Schneider Electric Floor standing duct, PrismaSeT G, W 300mm, H 2030mm (36M), IP30, without side plates LVS08275
Schneider Electric
Wood screw TEL 4.2X21, 100 pcs
IMT38056
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LA4DA2U?
- LA4DA2U can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LA4DA2U.
- What is the HS code for LA4DA2U?
- The customs tariff (HS) code for LA4DA2U is 8536.30.
- Who manufactures LA4DA2U?
- LA4DA2U is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for LA4DA2U?
- Yes — the LA4DA2U datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LA4DA2U?
- The minimum order quantity is 1.
- Is LA4DA2U available?
- Yes — LA4DA2U is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
