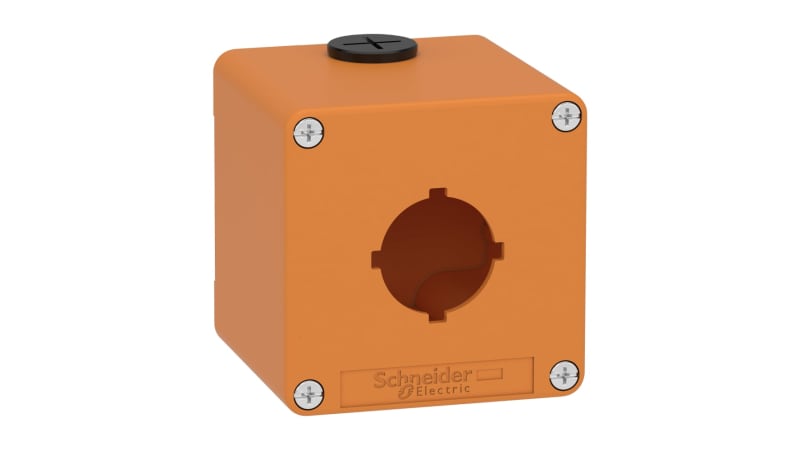

Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, orange, M20, 1 cut-out 30mm with notches, 80 x 80 X77, UL cULus XAPO1601
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XAPO1601 Push-Button Station empty in orange metal with 1 x Ø30 mm hole and 2 x M20 cable glands 80 x 80 x 77 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XAPO1601
- EAN / GTIN
- 3389119013482
- Sales unit
- pcs
- Diameter
- 30 mm
- Range of product
- Harmony XAP
- Product or component type
- Die-cast empty control station
- Device short name
- XAPO
- Product destination
- For Ø 30 mm control and signalling units
- Product front plate size
- 80 x 80 mm
- Usable depth
- 74.5 mm
- Number of cut-out
- 1 cut-out
- Colour of base of enclosure
- Orange (RAL 2008)
- Colour of cover
- Orange (RAL 2008)
- Material
- Die cast zinc
- Sale per indivisible quantity
- 1
- IP degree of protection
- IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
- Number of vertical rows
- 1
- Number of horizontal rows
- 1
- Cut-out dimensions
- Ø 30 mm
- Control station type
- Metal
- Cable entry
- 2 x cable gland conforming to ISO
- Thread type
- M20 x 1.5
- CAD overall width
- 80 mm
- CAD overall height
- 80 mm
- CAD overall depth
- 77 mm
- Product weight
- 0.605 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class I conforming to IEC 61140
- Degree of protection
- UL type 4 conforming to UL 50 E; UL type 4X conforming to UL 50 E
- IK degree of protection
- IK07 conforming to IEC 62262
- Resistance to chemical agents
- Special treatment can be obtained on request
- Product certifications
- UL; cULus; EAC
- Number of Units in Package 1
- 1
- Country of origin
- MA
- Warranty (in months)
- 18
- Width
- 80 mm
- Height
- 80 mm
- Depth
- 77 mm
- Diameter openings
- 30.5 mm
- Number of command positions
- 1
- Housing material
- Zinc
- Construction type housing
- Surface mounted housing
Standards & Compliance
- HS Code
- 7325.10
Cross References
- EAN 3389119013482
- SAP 1200589400
- Code 82960787
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric APC Easy UPS On-Line Modbus Card SRVSMB001
Schneider Electric
Schneider Electric Vigi IC60 - earth leakage add-on block - 4P - 63A - 300MA - A type A9V54463
Schneider Electric
Schneider Electric Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19 AP8481
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100F AC/DC, 18KA/415VAC, 2 poles, TMD trip unit 16A C10F2TM016
Schneider Electric
Schneider Electric PC box IP66 IK08 RAL7035 INT.H125W80D65 EXT.H138W93D72 opaque PC cover H20 NSYTBP1397
Schneider Electric
Schneider Electric differential thermal overload relay, TeSys K, 0.36...0.54A, class 10A LR2K0304
Schneider Electric

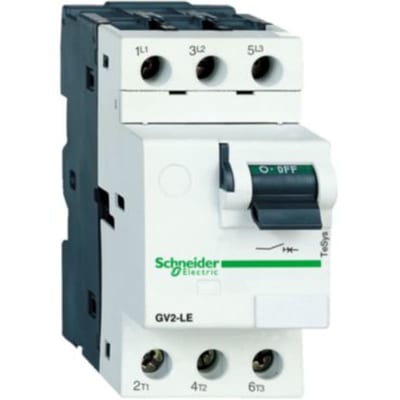

Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 0.4 A, magnetic, toggle control, screw clamp terminals GV2LE03
Schneider Electric

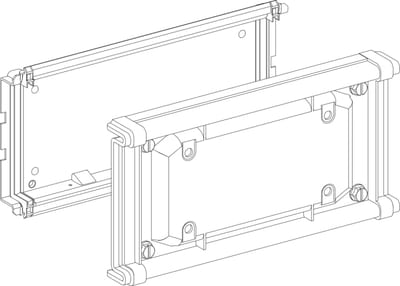

Schneider Electric Canalis KN Coupling Block 40-63 A
