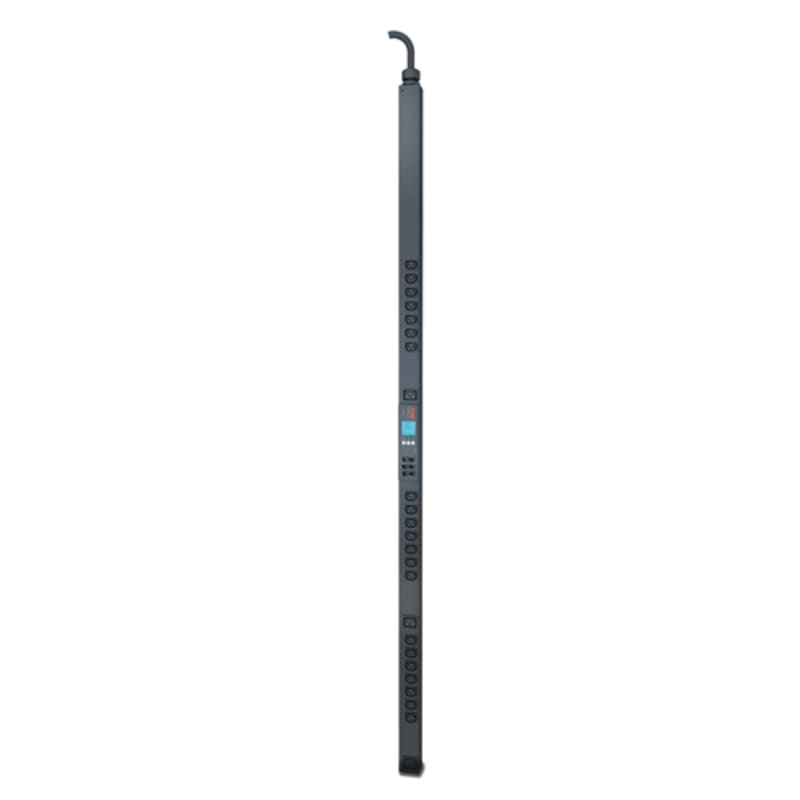

Schneider Electric Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19 AP8481
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP8481 APC by Schneider Electric.
Technical Specifications
- Manufacturer part number (MPN)
- AP8481
- EAN / GTIN
- 0731304317609
- HS code
- 8536.90
- Sales unit
- pcs
- Presentation
- APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection. Current metering provides real-time remote monitoring of connected loads. Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Metered outlet
- Cord length
- 1.8 m
- Number of cables
- 1
- Provided equipment
- CAN port terminator; Installation guide; Rack mounting brackets; Safety guide; Serial configuration cable
- Input Voltage
- 400 V 3 phases
- Height
- 1829 mm
- Width
- 56 mm
- Output Voltage
- 230 V
- Depth
- 51 mm
- Product weight
- 8.21 kg
- Mounting location
- Side
- Mounting preference
- No preference
- Input Plug Type
- IEC 60309 16 A 3P + N + PE; IEC 60309 20 A 3P + N + PE
- mounting mode
- Rack-mounted
- Rack units
- 0U
- Mounting position
- Vertical
- [In] rated current
- 16 A
- Max line current
- 16 A
- Input current limits
- 16 A
- Load capacity
- 11000 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 21 IEC 60320 C13 ; 3 IEC 60320 C19
- Product certifications
- cUL listed; UL listed; VDE
- Standards
- EN 55022 class A; EN 55024; EN 61000-3-2; EN 61000-3-3; FCC part 15 class A; ICES-003
- Ambient air temperature for operation
- -5…60 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Number of Units in Package 1
- 1
- Country of origin
- IN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0731304317609
- SAP 1200723107
- Code 83853219
Product Documentation
