Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M20, 2 cut-outs 22mm, 80 x 130 x 77, UL cULus XAPD2502
Pricing
Request a quote
We reply within 24 hours
Product Description

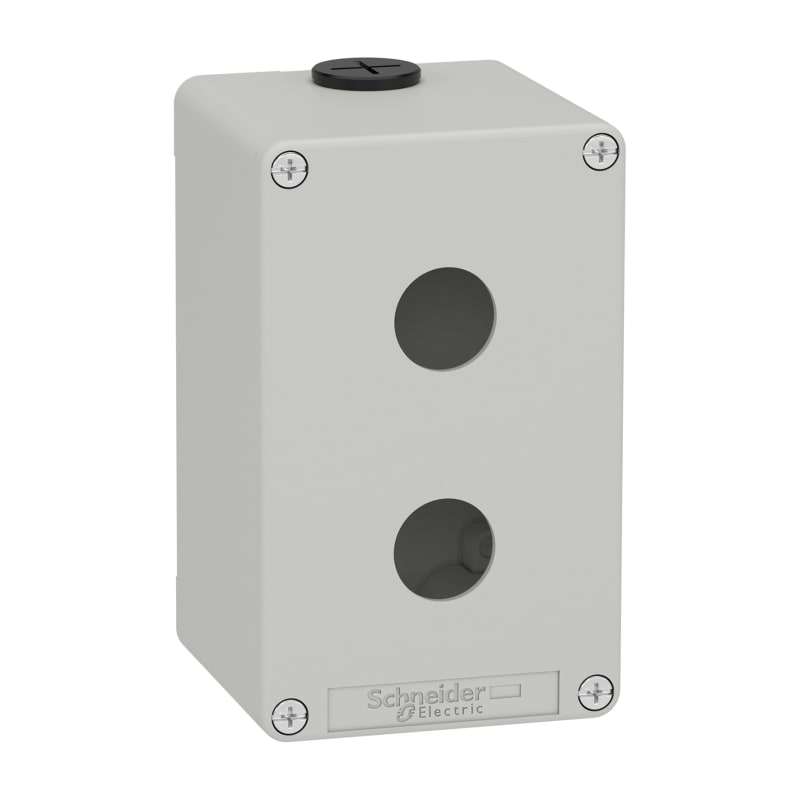

Schneider Electric XAPD2502 Push-Button Station empty in light grey metal with 2 x Ø22 mm holes and 2 x M20 cable glands 130 x 80 x 77 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XAPD2502
- EAN / GTIN
- 3389118042179
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Diameter
- 22 mm
- Range of product
- Harmony XAP
- Product or component type
- Die-cast empty control station
- Device short name
- XAPD
- Product destination
- For Ø 22 mm control and signalling units
- Product front plate size
- 80 x 130 mm
- Usable depth
- 74.5 mm
- Number of cut-out
- 2 cut-outs
- Colour of base of enclosure
- Grey (RAL 7035)
- Colour of cover
- Grey (RAL 7035)
- Material
- Die cast zinc
- Sale per indivisible quantity
- 1
- IP degree of protection
- IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
- Number of vertical rows
- 1
- Number of horizontal rows
- 2
- Cut-out dimensions
- Ø 22 mm
- Control station type
- Metal
- Cable entry
- 2 x cable gland conforming to ISO
- Thread type
- M20 x 1.5
- CAD overall width
- 80 mm
- CAD overall height
- 130 mm
- CAD overall depth
- 77 mm
- Product weight
- 0.81 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class I conforming to IEC 61140
- Degree of protection
- UL type 4 conforming to UL 50 E; UL type 4X conforming to UL 50 E
- IK degree of protection
- IK07 conforming to IEC 62262
- Resistance to chemical agents
- Special treatment can be obtained on request
- Product certifications
- UL; cULus; EAC
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 96
- Country of origin
- MA
- Warranty (in months)
- 18
- Width
- 80 mm
- Height
- 130 mm
- Depth
- 77 mm
- Diameter openings
- 22.5 mm
- Number of command positions
- 2
- Colour housing cover
- Grey
- Housing material
- Zinc
- Construction type housing
- Surface mounted housing
Standards & Compliance
- HS Code
- 7907.00
Cross References
- EAN 3389118042179
- SAP 1200565689
- Code 82952804
Product Documentation
More from Schneider Electric
Schneider Electric
Overload relay Easy TeSys,0.1-0.16A
LRE01
Schneider Electric
Schneider Electric analog input module X80 - 8 inputs - temperature BMXART0814
Schneider Electric
Schneider Electric miniature circuit breaker - C60H - 2 poles - 13 A - C curve A9N61529
Schneider Electric
Stillbart clamp TSK 14-20 V
2334019
Schneider Electric
DIN Rail 35X7,5 F/ KAPS, 150
NSYAMRD15357SB
Schneider Electric
Flatcable 2XHE10, 3M
TSXCDP302
Schneider Electric
Schneider Electric Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10S, 100...240V AC DC XB5DTGM2
Schneider Electric
Schneider Electric Arc fault detection RCBO, ACTI9 ICV40N ARC, 1P+N, 16A, B curve, 30MA, type A-SI, 6000A A9TDE3616
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XAPD2502?
- XAPD2502 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is XAPD2502.
- What is the HS code for XAPD2502?
- The customs tariff (HS) code for XAPD2502 is 7907.00.
- Who manufactures XAPD2502?
- XAPD2502 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for XAPD2502?
- Yes — the XAPD2502 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XAPD2502?
- The minimum order quantity is 1.
- Is XAPD2502 available?
- Yes — XAPD2502 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
