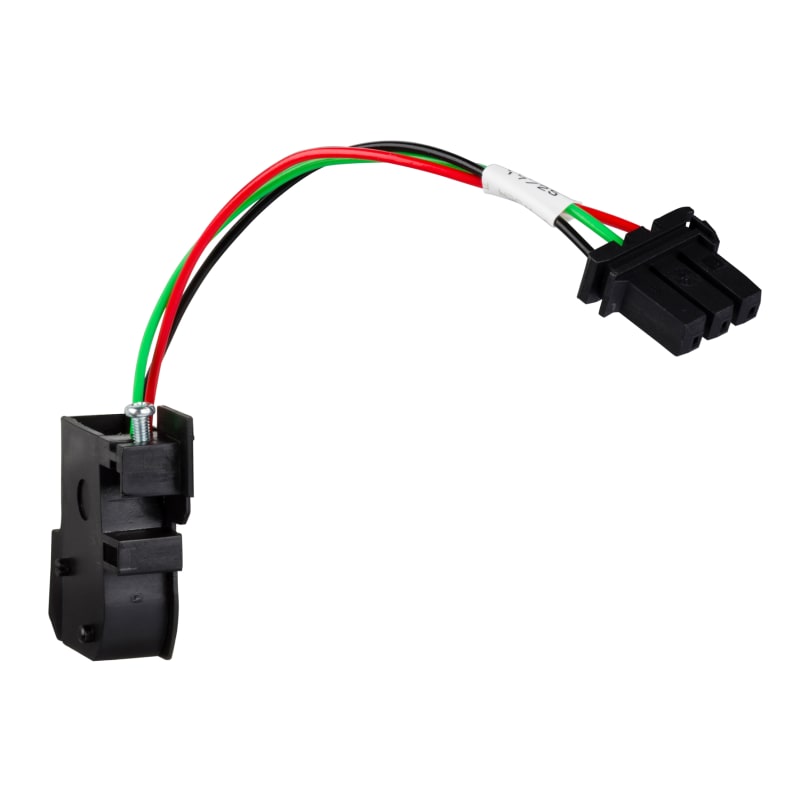

Schneider Electric Masterpact MTZ/NT/NW Low-Level PF Auxiliary Contact Spare

Schneider Electric LV847081SP is a pre-wired, low-level PF auxiliary contact supplied as a spare part for Masterpact MTZ1, MTZ2 and MTZ3 air circuit breakers (compatible with NT/NW families). Contact rating is 3 A AC-12 at 24/48 V and 240 V AC 50/60 Hz, 3 A DC-12 at 24/48 V and 0.3 A DC-12 at 125 V, with a minimum load of 2 mA at 15 V for direct interfacing to PLC or protection inputs. The contact reports breaker position ready-to-close signalling to the control system. Supplied with instruction sheet.

Manufacturer part number (MPN)

LV847081SP EAN / GTIN: 3606481186881 Sales unit: pcs Package quantity: 48 pcs Range: MasterPact Device short name: PF Product or component type: Auxiliary contact Device application: Control Range compatibility: Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker; Masterpact MasterPact MTZ1 circuit breaker Auxiliary contacts type: Low level Breaking capacity: 3 A AC-12 24/48 V AC 50/60 Hz; 3 A AC-12 240 V AC 50/60 Hz; 3 A DC-12 24/48 V; 0.3 A DC-12 125 V minimum load: 2 mA at 15 V Provided equipment: 1 instruction sheet Offer type: Spare part Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 2.0 cm Package 1 Width: 11.0 cm Package 1 Length: 5.0 cm Package 1 Weight: 84.0 g Unit Type of Package 2: S04 Number of Units in Package 2: 48 Package 2 Height: 30.0 cm Package 2 Width: 40.0 cm Package 2 Length: 60.0 cm Package 2 Weight: 4.732 kg Country of origin: FR Warranty (in months): 18

HS Code

8538.90

• EAN 3606481186881
• SAP 1200287073
• Code 82255125
