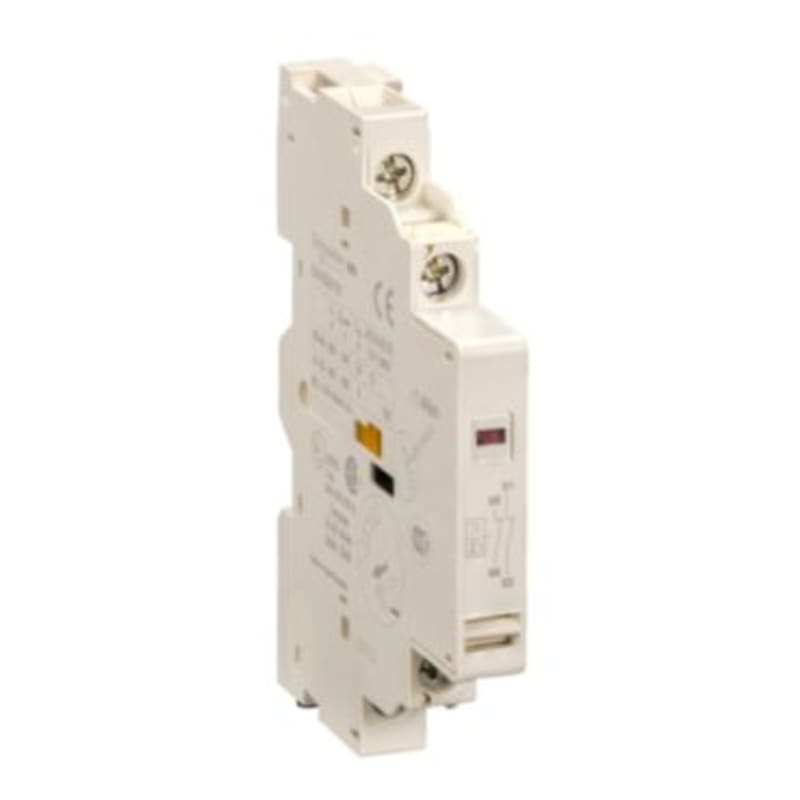

Schneider Electric TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NO (fault) GVAD1010

Schneider Electric GVAD1010 Auxiliary block 1NO(Fault)+1NO GV2.

Manufacturer part number (MPN)

GVAD1010 EAN / GTIN: 3389110343557 Sales unit: pcs Package quantity: 10 pcs Contact configuration: 1 NO Range: TeSys; TeSys Deca Device short name: GVAD Product or component type: Auxiliary contact block Product compatibility: GV2L; GV2P; GV2RT; GV3L; GV2LE; GV3P; GV2ME Mounting location: Left side Auxiliary contacts operation: Fault signal 1 NO Pole contact composition: 2 NO [Ui] rated insulation voltage: 690 V conforming to IEC 60947-1; 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14 [Ue] rated operational voltage: 48...690 V AC; 24...240 V DC [Ith] conventional free air thermal current: 6 A; 2.5 A for fault signalling Mechanical durability: 100000 cycles minimum switching current: 5 mA minimum switching voltage: 17 V Protection type: GB2CB... circuit breaker; GG fuse 10 A Rated operational power in VA: 300 VA at 48 V AC-15 - electrical durability: 100000 cycles; 414 VA at 690 V AC-15 - electrical durability: 100000 cycles; 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles; 500 VA at 500 V AC-15 - electrical durability: 100000 cycles; 650 VA at 440 V AC-15 - electrical durability: 100000 cycles; 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles; 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles; 36 VA at 24 V AC-14 - electrical durability: 1000 cycles; 48 VA at 48 V AC-14 - electrical durability: 1000 cycles; 72 VA at 110…127 V AC-14 - electrical durability: 1000 cycles Rated operational power in W: 120 W at 240 V DC-13 - electrical durability: 100000 cycles; 140 W at 110 V DC-13 - electrical durability: 100000 cycles; 140 W at 24 V DC-13 - electrical durability: 100000 cycles; 180 W at 60 V DC-13 - electrical durability: 100000 cycles; 240 W at 48 V DC-13 - electrical durability: 100000 cycles; 15 W at 48 V DC-13 - electrical durability: 1000 cycles; 24 W at 24 V DC-13 - electrical durability: 1000 cycles; 9 W at 60 V DC-13 - electrical durability: 1000 cycles Height: 89 mm Width: 9.3 mm Depth: 66 mm Product weight: 0.055 kg Colour: Dark grey Environmental characteristic: Normal environment Product certifications: UKCA Number of Units in Package 1: 1 Number of Units in Package 2: 25 Number of Units in Package 3: 800 Country of origin: CZ Warranty (in months): 18

HS Code

8538.90

• EAN 3389110343557
• SAP 1000019753
• Code 8164360
