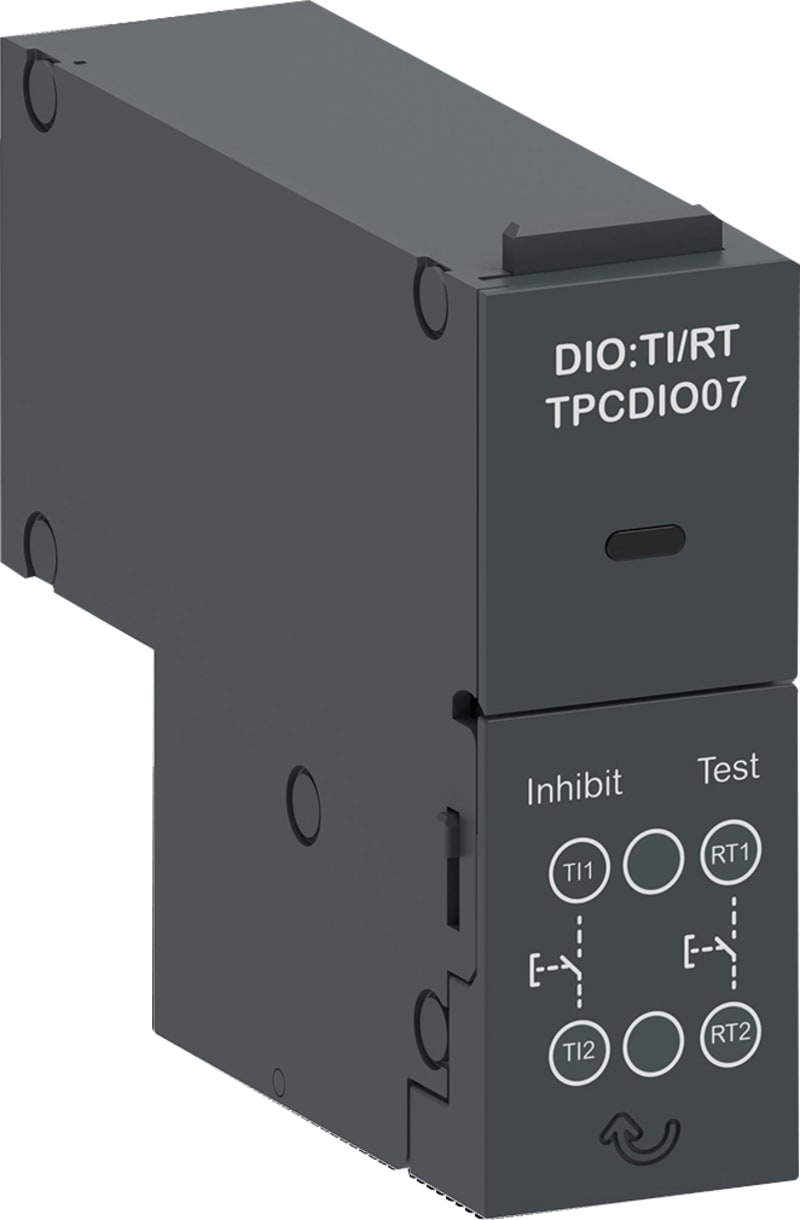

Schneider Electric function module,TransferPacT, transfer inhibit and remote testing, input signal TPCDIO07
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric TPCDIO07 Function Module-TransferPacT-locking of transfer-and fjerntesting-inngangs-signal.
Technical Specifications
- Manufacturer part number (MPN)
- TPCDIO07 EAN / GTIN: 3606481065995 Sales unit: pcs Package quantity: 20 pcs Range of product: TransferPacT Product or component type: I/O module; Dry contact Device application: Signalling Auxiliary contact composition: 2 NO Signalling function: Transfer inhibit; Remote testing Auxiliary connection terminal: Screw clamp terminal 0.05…2.6 mm² mounting mode: Plug-in Mounting position: Left-bottom minimum input current: 5 mA [Ui] rated insulation voltage: 30 V DC Tightening torque: 0.6 N.m +/- 0.1 N.m Height: 56.5 mm Width: 20 mm Depth: 69 mm Product weight: 40 g Accessory / separate part category: Signalling accessory IP degree of protection: IP20 Pollution degree: 3 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 4.500 cm Package 1 Width: 10.600 cm Package 1 Length: 10.600 cm Package 1 Weight: 90.000 g Unit Type of Package 2: S02 Number of Units in Package 2: 20 Package 2 Height: 15.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 2.160 kg Country of origin: CN Warranty (in months): 18
Cross References
- EAN 3606481065995
- SAP 1200586062
- Code 82956230
Product Documentation
