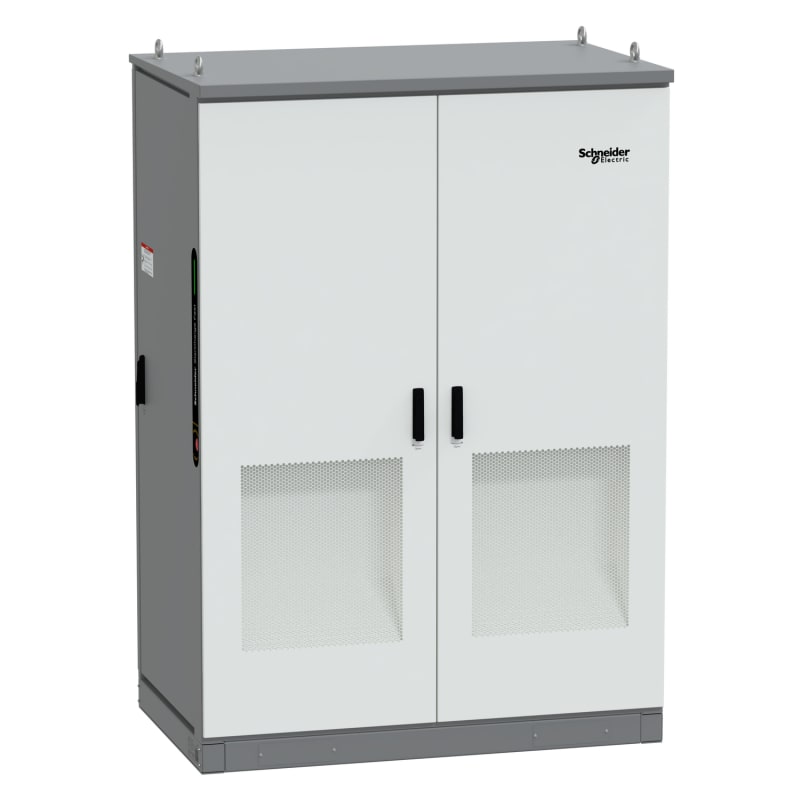

Schneider Electric Power cabinet, Schneider StarCharge Fast 720, 720kW EVD1S720
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric EVD1S720 Power cabinet, Schneider StarCharge Fast 720, 720kW.
Technical Specifications
- Manufacturer part number (MPN)
- EVD1S720
- EAN / GTIN
- 3606487894254
- Sales unit
- pcs
- Power
- 720 kW
- Range
- Schneider StarCharge Fast 720
- Product name
- Schneider StarCharge Fast 720
- Product or component type
- Power cabinet
- Type of installation
- Indoor/outdoor
- Poles description
- 3P + N + E
- Range compatibility
- EVlink EVlink Field Services; EVlink EVlink Load Management System
- Device application
- Electrical Vehicle charger
- Mounting location
- Floor stand
- Earthing system
- TN-S; TN-C-S; TT; Compatible IT with additional isolation transformer on the power supply
- [Us] rated supply voltage
- 380...415 V AC at 50/60 Hz, 3 phases + neutral
- Input current
- 1139…1266 A
- Nominal output power
- 720 kW at 0…380 A150...1000 V DC; 720 kW ( upgradable )
- Number of outputs
- 12
- Protection type
- Short-circuit protection on output; Overload protection; Ground fault protection; Temperature rise protection
- Local signalling
- 1 green LED light strip, function: available; 1 red LED light strip, function: fault indication
- Control button type
- Charge interruption button
- Material
- Enclosure: stainless steel 430
- Colour
- Front door: signal white (RAL 9003); Side panels: black (RAL 9005); Side panels: dark grey silver
- Efficiency
- 97 %
- Power factor
- 0.99
- Ambient air temperature for operation
- -30…50 °C (with derating above 50 °C)
- Height
- 2206 mm
- Width
- 1503 mm
- Depth
- 1220 mm
- Net weight
- 922 kg (without power module); 1228 kg (with power module)
- Services
- Commercial service plan; Commissioning service; Warranty extension up to 5 years; Repair service
- Ethernet service
- Web browser
- Communication port protocol
- OCPP 1.6; Modbus TCP; Ethernet TCP/IP
- Communication network type
- 4G; WLAN; Ethernet TCP/IP; Wi-Fi
- Electromagnetic compatibility
- Immunity for industrial environments: ; Emission standard for industrial environments:
- IP degree of protection
- IP55
- IK degree of protection
- IK10
- Ambient air temperature for storage
- -40…70 °C
- Operating altitude
- 0...2000 m
- Relative humidity
- 5…95 %, without condensation
- Standards
- IEC 61851-1:ed. 3; IEC 61851-23:ed. 1; IEC 62196-1; IEC 62196-3; EN/IEC 61000-6-2:2005; EN/IEC 61000-6-4:class A; ISO 15118-2; DIN 70121; VDV 261
- Atmospheric-corrosivity category
- C4
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 238 cm
- Package 1 Width
- 170.5 cm
- Package 1 Length
- 137.5 cm
- Package 1 Weight
- 1366 kg
- Country of origin
- CN
