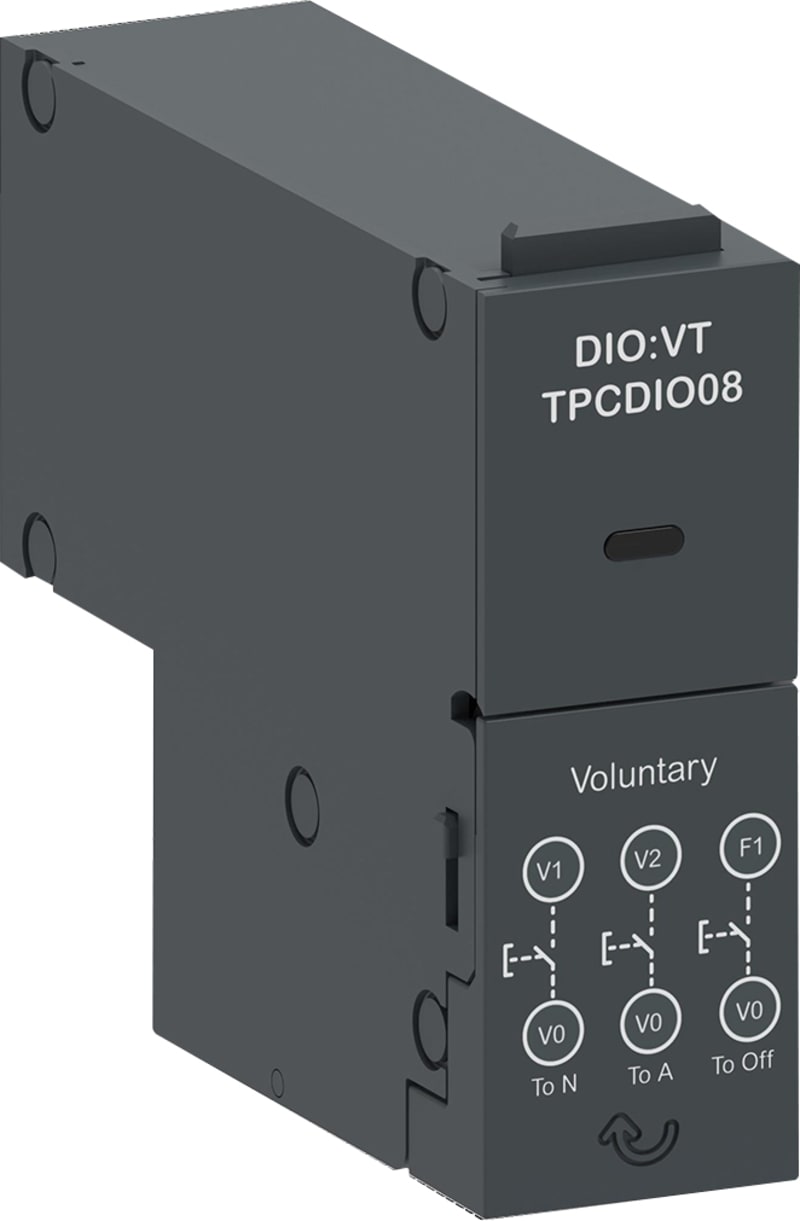

Schneider Electric function module, TransferPacT, voluntary remote control, input signal TPCDIO08

Schneider Electric TPCDIO08 Function Module-TransferPacT-frivillig remote control-overstyring, active inngangs-signal.

Manufacturer part number (MPN)

TPCDIO08 EAN / GTIN: 3606481066008 Sales unit: pcs Package quantity: 20 pcs Range of product: TransferPacT Product or component type: I/O module; Dry contact Device application: Signalling Auxiliary contact composition: 3 NO Signalling function: Voluntary to N source/Voluntary to A source; Force to off position Auxiliary connection terminal: Screw clamp terminal 0.05…2.6 mm² mounting mode: Plug-in Mounting position: Left-bottom minimum input current: 5 mA [Ui] rated insulation voltage: 30 V DC Tightening torque: 0.6 N.m +/- 0.1 N.m Height: 56.5 mm Width: 20 mm Depth: 69 mm Product weight: 40 g Accessory / separate part category: Signalling accessory IP degree of protection: IP20 Pollution degree: 3 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 4.500 cm Package 1 Width: 10.800 cm Package 1 Length: 10.800 cm Package 1 Weight: 80.000 g Unit Type of Package 2: S02 Number of Units in Package 2: 20 Package 2 Height: 15 cm Package 2 Width: 30 cm Package 2 Length: 40 cm Package 2 Weight: 2.000 kg Country of origin: CN Warranty (in months): 18

• EAN 3606481066008
• SAP 1200586044
• Code 82956226
