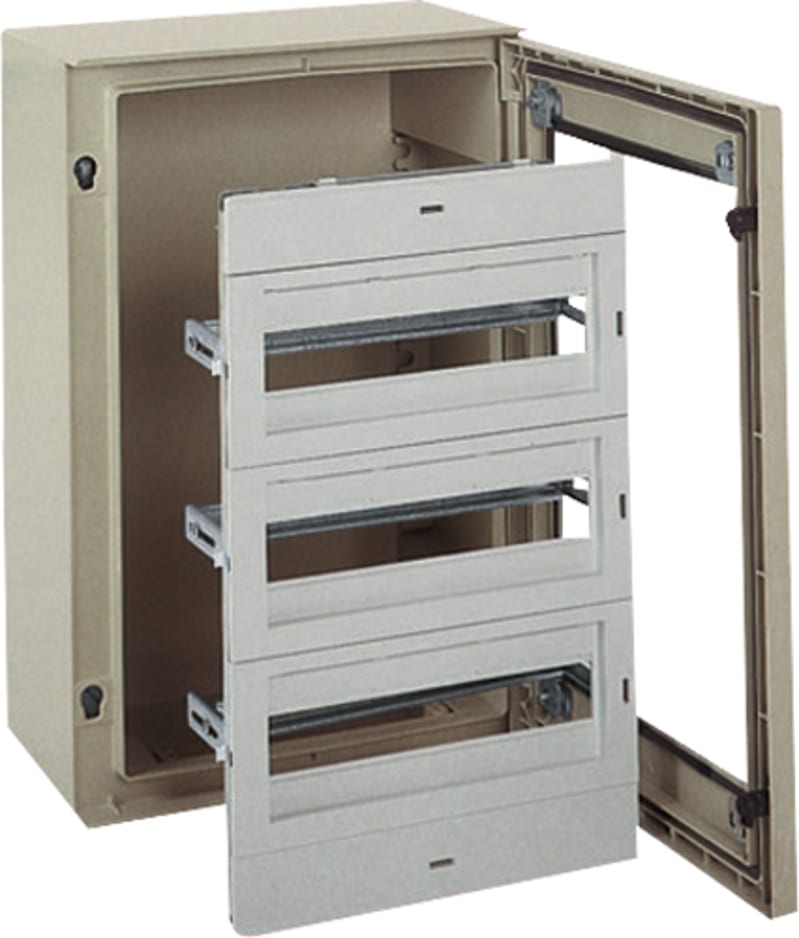

Mod insert 36M for 36X27PLS

Schneider Electric NSYDLS36 Mod insert 36m for 36x27PLS.

Manufacturer part number (MPN)

NSYDLS36

EAN / GTIN

3606480188480

Sales unit

pcs

Range

PanelSeT

Accessory / separate part category

Mounting accessory

Application

Modular distribution application; Multi-purpose

Product or component type

Chassis

Device short name

DLS

For enclosure nominal dimensions

- H: 360 mm W: 270 mm D: 180 mm

Mounting location

Front of enclosure

Range compatibility

PanelSeT PLS

Device composition

1 chassis structure; 1 front panel; 3 35 mm DIN rail

Material

Front panel: self-extinguishing; Chassis structure and rails: galvanised steel

Colour

Front panel: grey (RAL 7032)

Fixing mode

By fixing element - on front with supports location

Number of horizontal rows

3

Total number of 18 mm modules

36

Type of front plate

Cut-out plate

Number of cut-out

3 cut-outs

Height

340 mm

Width

260 mm

Depth

90 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.000 cm

Package 1 Width

36.500 cm

Package 1 Length

34.500 cm

Package 1 Weight

958.000 g

Unit Type of Package 2

PAL

Number of Units in Package 2

6

Package 2 Height

29.000 cm

Package 2 Width

37.500 cm

Package 2 Length

120.000 cm

Package 2 Weight

5.748 kg

Country of origin

ES

Warranty (in months)

18

Spare part

No

Accessory

No

Type of accessory/spare part

Adaptor kit

HS Code

8538.10

• EAN 3606480188480
• SAP 1000470101
• Code 8579623
