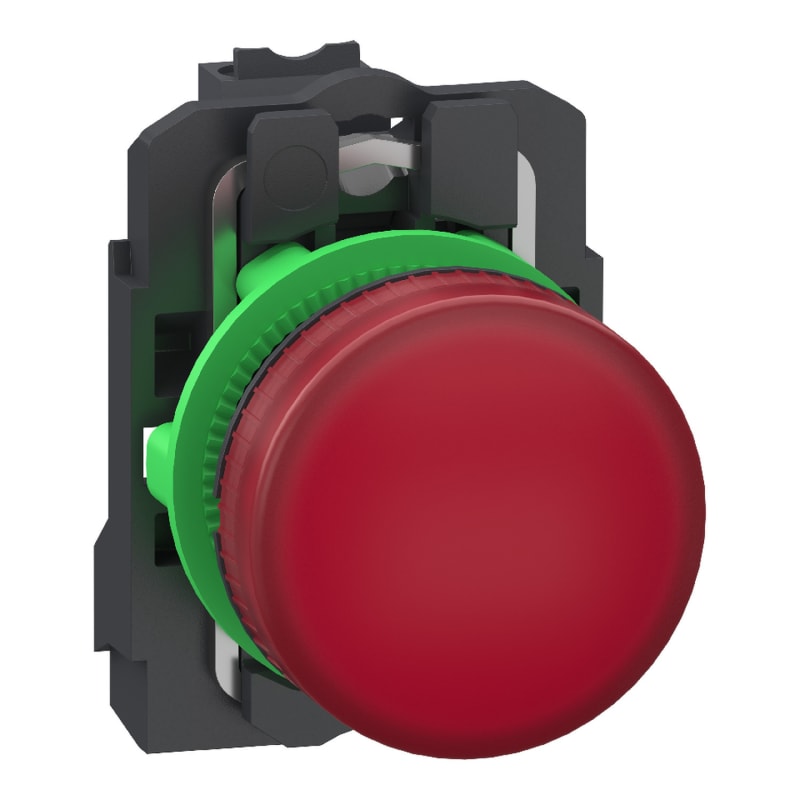

Schneider Electric Pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 24V AC DC, compact push in terminals XB5AVB45

Schneider Electric XB5AVB45 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Indicator lamp complete with LED in red colour and 24VAC/DC supply with push-in.

Manufacturer part number (MPN)

XB5AVB45

EAN / GTIN

3606486341452

HS code

8539.52

Sales unit

pcs

Voltage

24 V

Range of product

Harmony XB5

Product or component type

Pilot light

Device short name

XB5

Bezel material

Dark grey plastic

Fixing collar material

Plastic

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Cap/operator or lens colour

Red

Operator additional information

With plain lens

Light source

Universal LED

Bulb base

Integral LED

Light source colour

Red

[Us] rated supply voltage

24 V AC/DC at 50/60 Hz

Device presentation

Complete product

Height

42 mm

Width

30 mm

Depth

45.2 mm

Terminals description ISO n°1

(X1-X2)PL

Product weight

0.034 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Connections - terminals

Push-in, = 1 x 0.34 mm² without wire end ferrule conforming to IEC 60947-1

[Ui] rated insulation voltage

300 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Signalling type

Steady

GCR BRIDGE

XB5AVCUST03

Compatibility code

XB5

Supply voltage limits

20.4…26.4 V DC; 20.4…26.4 V AC

Current consumption

15 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653

Enclosure Type

UL type 4X/13

IK degree of protection

IK05 conforming to IEC 50102

Standards

IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-5-5; UL 60947-1; UL 60947-5-1; UL 60947-5-5; UL 1059; UL 486E; CSA C22.2 No 60947-1; CSA C22.2 No 60947-5-1; CSA C22.2 No 158; CSA C22.2 No 65; IACS E10

Product certifications

EAC; IECEE CB Scheme; CCC; UL; CSA

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Electromagnetic compatibility

Electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electromagnetic emission class B conforming to IEC 55011

Resistance to electrostatic discharge

4 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Number of Units in Package 1

1

Warranty (in months)

18

HS Code

8539.52

• EAN 3606486341452
• SAP 1200836673
• Code 84025723
