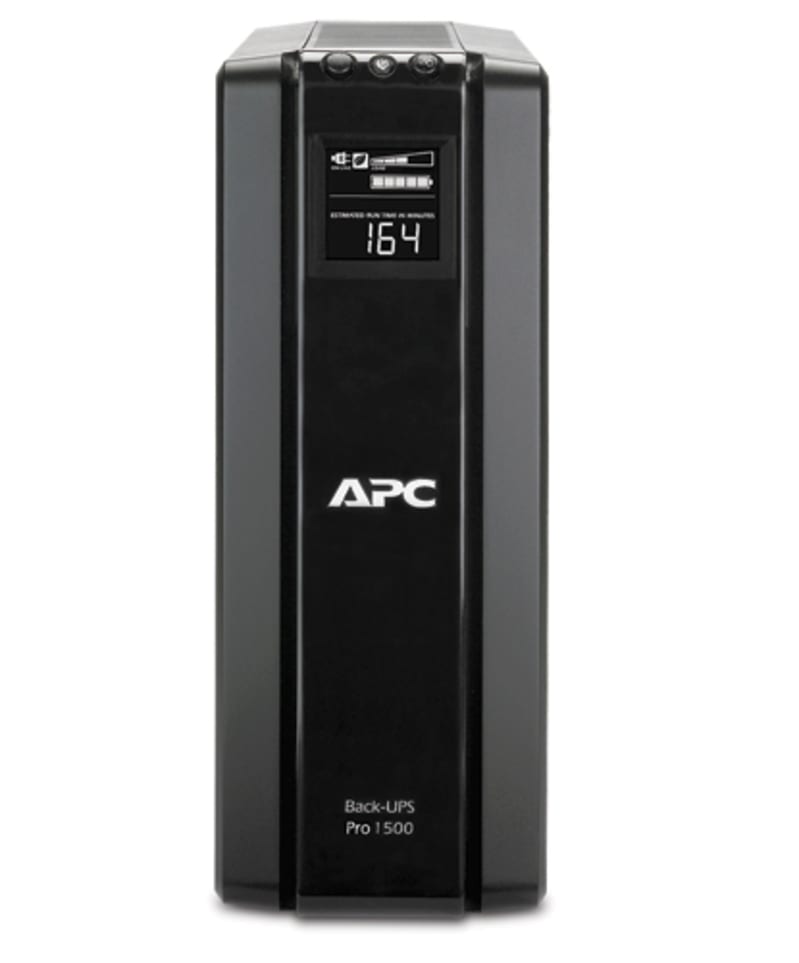

Schneider Electric APC Back-UPS Pro, 1500VA/865W, Tower, 230V, 6X CEE 7/7 Schuko outlets, Its Wave, AVR, LCD, User Replaceable Battery BR1500G-GR
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BR1500G-GR Power-Saving Back-UPS Pro 1500, 230V, Sc.
Technical Specifications
- Manufacturer part number (MPN)
- BR1500G-GR
- EAN / GTIN
- 0731304286875
- Sales unit
- pcs
- Voltage
- 230 V
- Main input voltage
- 230 V AC 1 phase
- Efficiency at full load
- 156...300 V adjustable; 176...294 V
- Input frequency
- 50 Hz +/- 1 Hz; 60 Hz +/- 1 Hz
- Output voltage
- 230 V AC 1 phase
- Rated power in W
- 865 W
- Rated power in VA
- 1500 VA
- Output connection
- 3 CEE 7/3; 3 CEE 7/3 surge
- Type of USB power supply
- None
- Maximum configurable power in VA
- 1500 VA
- Maximum configurable power in W
- 865 W
- Transfer time
- 10 ms typical : 12 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Stepped approximation to a sinewave
- Output frequency
- 50/60 Hz +/- 1 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised
- Replacement battery
- APCRBC124
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery capacity
- 9.0 Ah
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- UPS connectivity
- USB port
- Data line protection
- RJ11 modem/fax/DSL protection (two wire single line)
- Surge energy rating
- 441 J
- Cable length
- 1.5 m
- Height
- 301 mm
- Width
- 112 mm
- Depth
- 382 mm
- Product weight
- 13 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- Yes
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Back-UPS Pro
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- BSI 1363; CE; NEMKO
- Equipment protection policy
- Lifetime : 200000 AUD; Lifetime : 150000 euros; Lifetime : 75000 GBP
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 45 dBA
- Operating altitude
- 0...10000 ft
- Battery voltage
- 24 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 8 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 23 W rated
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- SCC14
- 10731304286872
- Warranty (in months)
- 24
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304286875
- SAP 1200723261
- Code 83845711
Product Documentation
