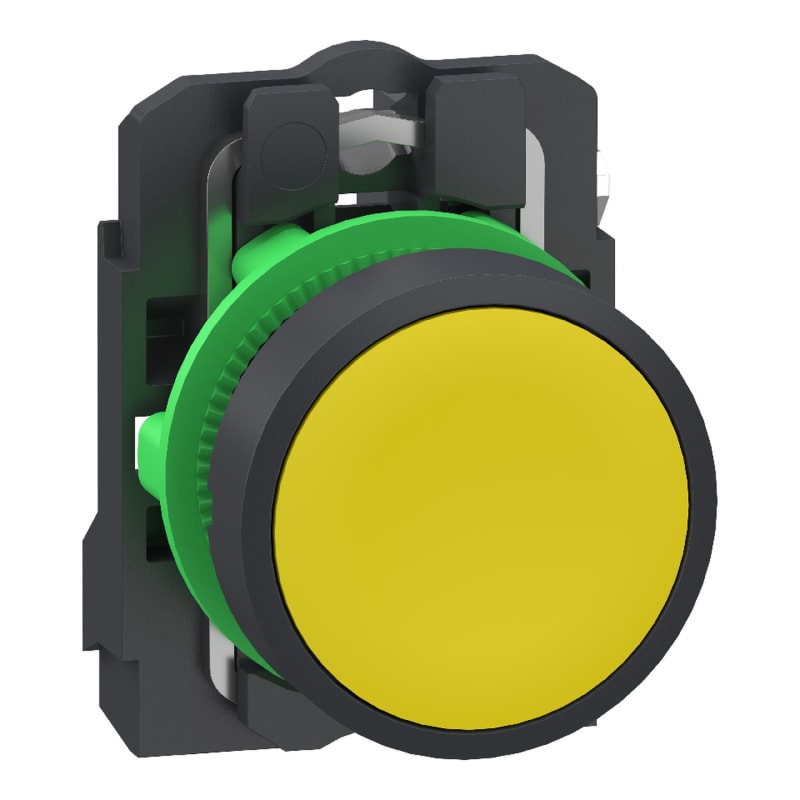

Schneider Electric Push button, Harmony XB5, grey plastic, flush, yellow, 22mm, spring return, unmarked, 1 NO, compact push in terminals XB5AA515

Schneider Electric XB5AA515 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Push-button complete with spring return and plan push surface in yellow colour 1xNO with push-in.

Manufacturer part number (MPN)

XB5AA515

EAN / GTIN

3606486341230

Sales unit

pcs

Range of product

Harmony XB5

Product or component type

Push-button

Device short name

XB5

Bezel material

Plastic

Head type

Standard

Fixing collar material

Plastic

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Yellow flush, unmarked

Contacts type and composition

1 NO

Contact operation

Slow-break

Connections - terminals

Push-in, = 1 x 0.34 mm² without wire end ferrule conforming to IEC 60947-1

Height

42 mm

Width

30 mm

Depth

43.2 mm

Terminals description ISO n°1

(13-14)NO

Product weight

0.033 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Contacts usage

Standard contacts

Positive opening

Without

Operating travel

2.05 mm (NO changing electrical state); 4.3 mm (total travel)

Operating force

2.45 N NO changing electrical state

Mechanical durability

10000000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

300 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

6 A at 120 V, AC-15, A300 conforming to IEC 60947-5-1; 3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q300 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1

Device presentation

Complete product

Customizable

No

GCR BRIDGE

XB5AACUST01

Compatibility code

XB5

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 50102

Standards

IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-5-5; UL 60947-1; UL 60947-5-1; UL 60947-5-5; UL 1059; UL 486E; CSA C22.2 No 60947-1; CSA C22.2 No 60947-5-1; CSA C22.2 No 158; CSA C22.2 No 65; IACS E10

Product certifications

EAC; IECEE CB Scheme; CCC; UL; CSA

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.2 cm

Package 1 Width

3.3 cm

Package 1 Length

8.6 cm

Package 1 Weight

33 g

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Yellow

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Type of button

Flat

Colour front ring

Grey

Degree of protection (IP)

IP66

Material front ring

Plastic

With front ring

Yes

Transparent

No

Construction type lens

Round

Switching function latching

No

Number of contacts as normally open contact

1

HS Code

8536.50
