PLA510 metal mounting plate
Pricing
Request a quote
We reply within 24 hours
Product Description

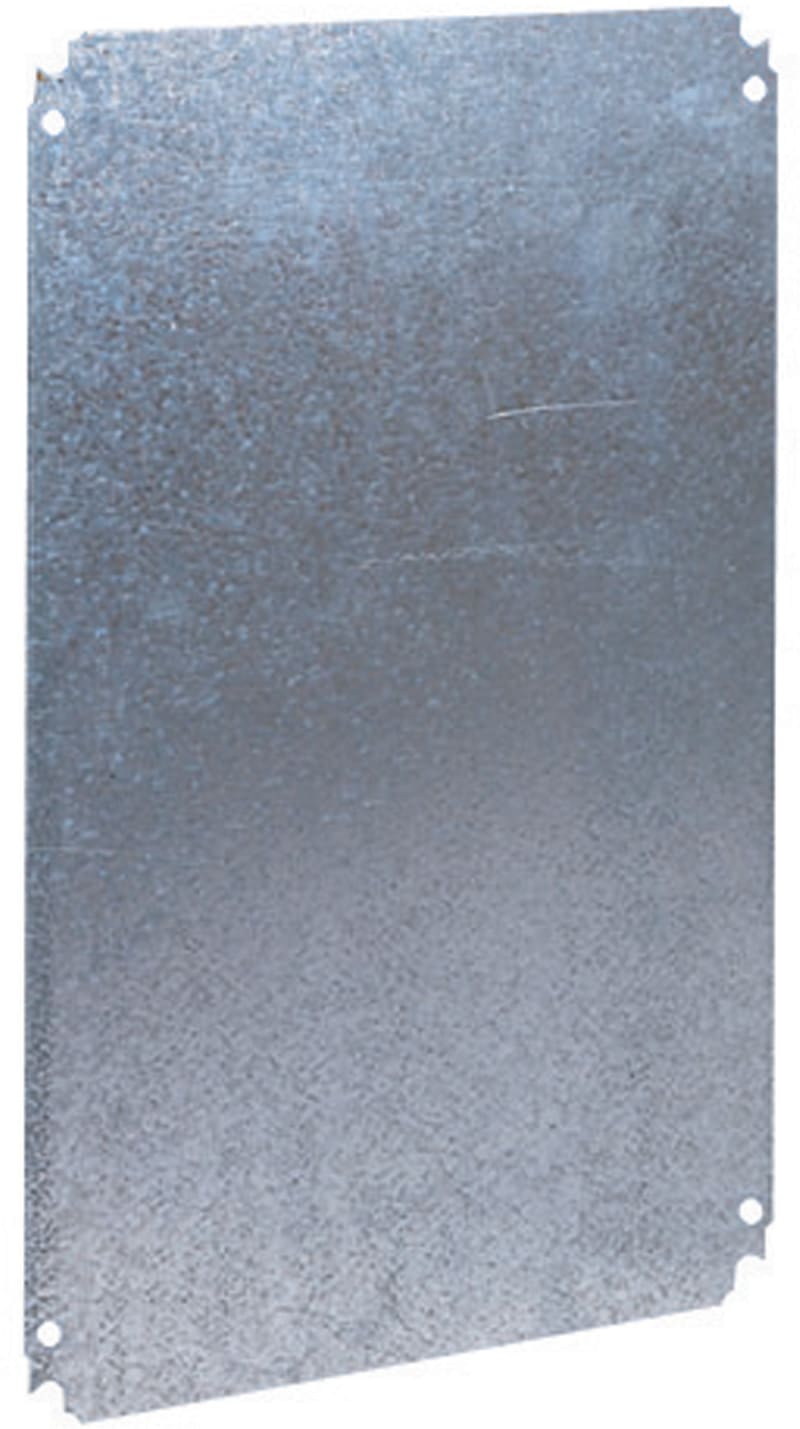

Schneider Electric NSYPMM510 PLA510 metal mounting plate.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPMM510
- EAN / GTIN
- 3606480193798
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Step slide; Back inserts
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT PLA PLA
- Device composition
- 1 mounting plate
- Material
- Galvanised steel
- Fixing mode
- By screws - screw type M8 - on back inserts location
- Permanent permissible load
- 150 kg
- Height
- Nominal: 500 mm; Real: 390 mm
- Width
- Nominal: 1000 mm; Real: 875 mm
- Depth
- Real : 125 mm
- thickness
- 2.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.300 cm
- Package 1 Width
- 39.000 cm
- Package 1 Length
- 87.500 cm
- Package 1 Weight
- 6.052 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 50
- Package 2 Height
- 27.500 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 316.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480193798
- SAP 1000318056
- Code 8343223
