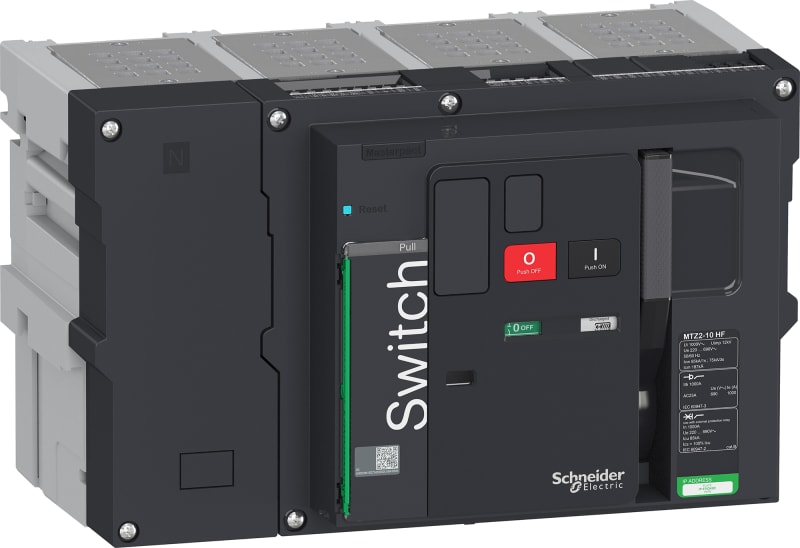

Schneider Electric switch disconnector Masterpact MTZ2 10 HF, 1000 A, 4 poles, drawout LV848257
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV848257 Load-break switch Masterpact MTZ2 10HF 1000A 4p withdrawable without pocket and connections.
Technical Specifications
- Manufacturer part number (MPN)
- LV848257
- EAN / GTIN
- 3606480819247
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- MasterPact
- Product or component type
- Switch disconnector
- Device application
- Distribution
- Switch-disconnector name
- MasterPact MTZ2 10 HF
- Poles description
- 4P
- Neutral position
- Left
- Network type
- AC
- Network frequency
- 50/60 Hz
- Control type
- Push-button
- mounting mode
- Drawout
- Mounting support
- Chassis
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Ie] rated operational current
- 1000 A AC 50/60 Hz 690 V
- [Ui] rated insulation voltage
- 1000 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Uimp] rated impulse withstand voltage
- 12 kV conforming to EN/IEC 60947-3
- [Icw] rated short-time withstand current
- 50 kA during 3 s conforming to EN/IEC 60947-3; 85 kA during 1 s conforming to EN/IEC 60947-3
- [Icm] rated short-circuit making capacity
- 187 kA peak 220...690 V AC at 50/60 Hz
- Utilisation category
- AC-23A; AC-3
- performance level
- HF
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Contact position indicator
- Yes
- Visible break
- No
- Mechanical durability
- 25000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
- Electrical durability
- AC-23A: 10000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-23A: 10000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- Connection pitch
- 115 mm
- Height
- 439 mm
- Width
- 556 mm
- Depth
- 403 mm
- Product weight
- 120 kg
- Standards
- EN/IEC 60947-3
- Product certifications
- IECEE CB Scheme
- IP degree of protection
- IP30
- Pollution degree
- 3 conforming to EN/IEC 60947-4-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480819247
- SAP 1200498201
- Code 82621699
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 24V AC LUCA1XB
Schneider Electric

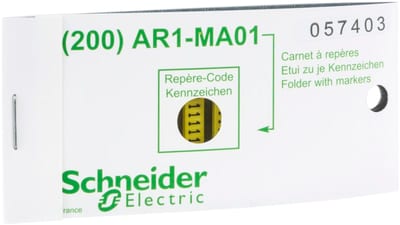

Schneider Electric Marker, Linergy TR cable ends, yellow, clipin type, character 0, Numeric, set of 200 AR1MA010
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V 12A, 110V DC low consumption coil, snap-in terminals LC1D12AFL
Schneider Electric

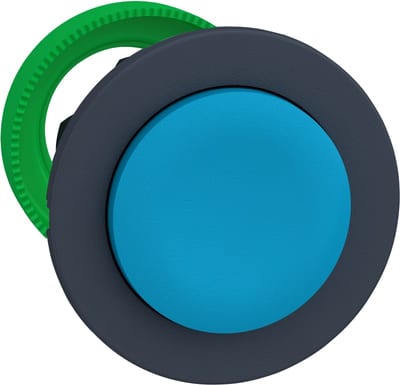

Schneider Electric flush mounted blue projecting pushbutton head ZB5FL6
Schneider Electric

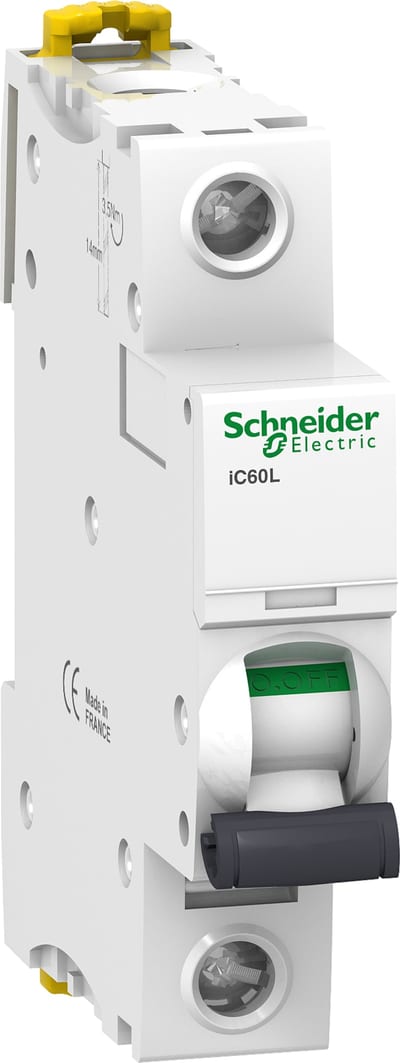

Schneider Electric A9F93125 ACTI9 IC60L Miniature Circuit Breaker 1P 25 A, Curve B
Schneider Electric

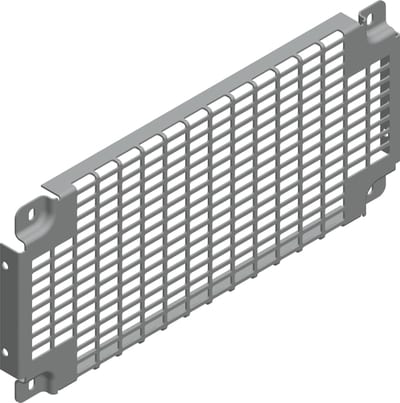

Mounting Plate TELEQ. 450X600
NSYSTMP4560
Schneider Electric

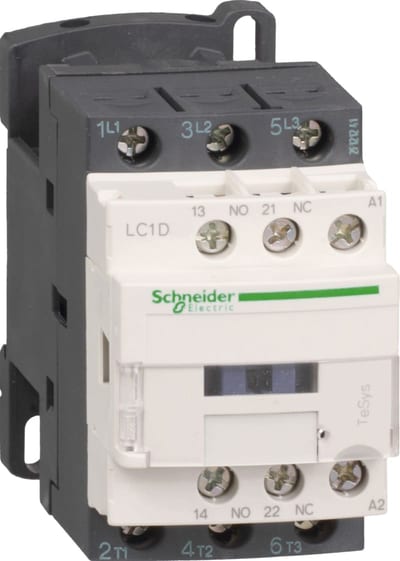

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 380V AC 50/60Hz coil, screw clamp terminals LC1D18Q7
Schneider Electric

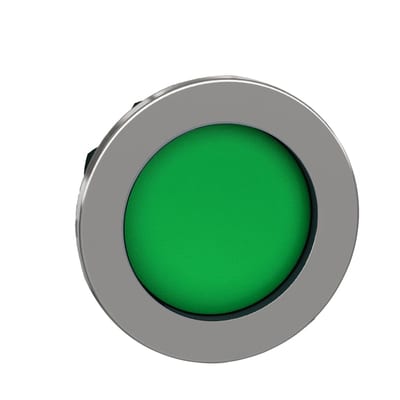

Push-button flush green nedsenk.
