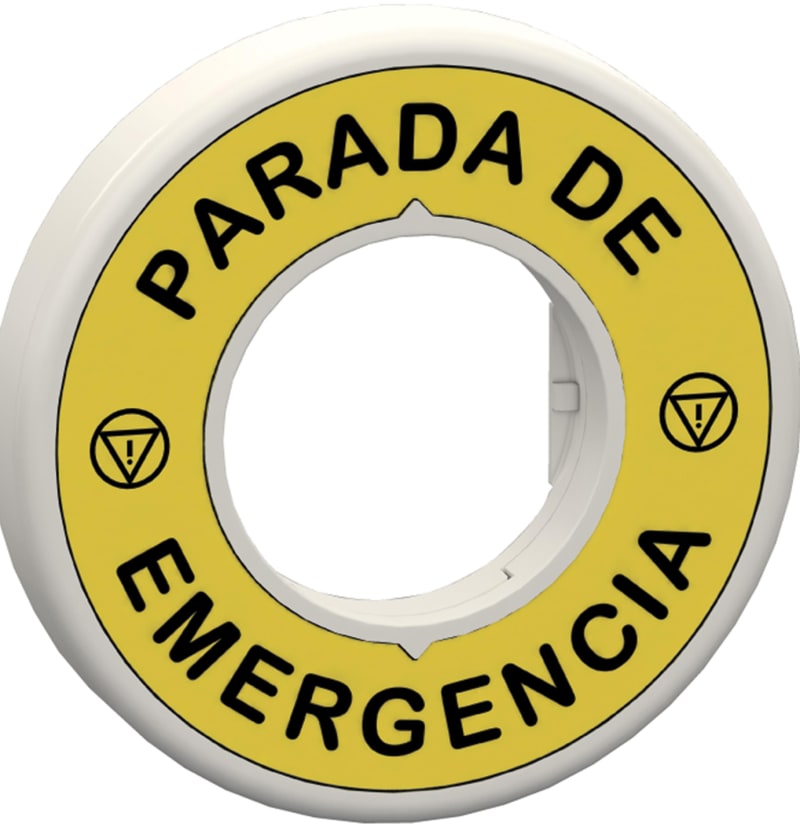

Emergency stop sign with LED 230V SP

Schneider Electric ZBY9W2M430 Emergency stop sign with red LED 230VAC and marked "PARADA DE EMERGENCIA".

Manufacturer part number (MPN)

ZBY9W2M430

EAN / GTIN

3606489745332

Sales unit

pcs

Package quantity

50 pcs

Voltage

230 V

Range of product

Harmony

Product or component type

Illuminated marked legend ring

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Cap/operator or lens colour

Red

Operator additional information

With illuminated ring

Light source

Protected LED

Bulb base

Integral LED

Light source colour

Red

[Us] rated supply voltage

230...240 V AC at 50/60 Hz

Device presentation

Intermediate ring

Accessory / separate part destination

Emergency stop mushroom head push-button

Material

Plastic

Marking

Black PARADA DE EMERGENCIA on yellow background

Label dimensions

Ø 60 mm

User language

Italian

Height

60 mm

Width

9.3 mm

Product weight

0.016 kg

Electrical insulation class

Class II conforming to IEC 61140

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

Signalling type

Steady

Supply voltage limits

195…264 V AC

Current consumption

14 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Compatibility code

XB4; XB5

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50E; Type 12 conforming to UL 50E; Type 4 conforming to UL 50E; Type 4X conforming to UL 50E

IK degree of protection

IK05 conforming to IEC 62262

Standards

CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; UL 508; IEC 60947-1; JIS C8201-5-1; JIS C8201-1

Product certifications

UL listed; CSA

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

4 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Number of Units in Package 1

1

Number of Units in Package 2

2880

Country of origin

ID

Warranty (in months)

18

Colour

Yellow

Outer diameter

60 mm

Shape

Round

HS Code

8538.90

• EAN 3606489745332
• SAP 1200338033
• Code 82352825
