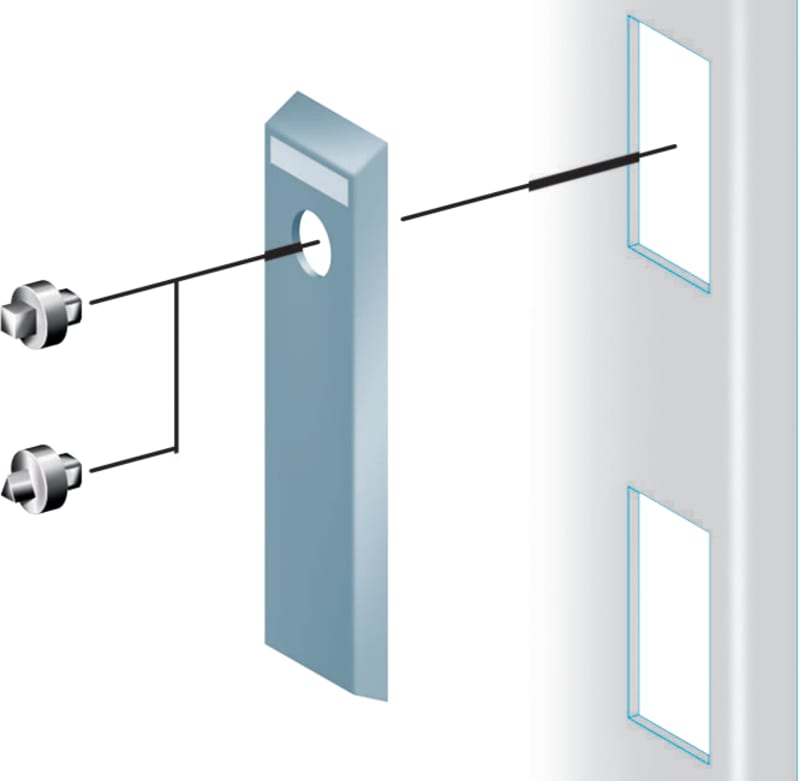

5mm db insert (NSYTDB5PL)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTDB5PL 5mm db insert.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTDB5PL
- EAN / GTIN
- 3606480192616
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Lock insert
- Accessory / separate part category
- Locking accessory
- Accessory / separate part type
- Handle 4 point lock
- Device application
- Multi-purpose
- Mounting support
- Direct mounting on door
- Range compatibility
- PanelSeT PLM
- Device composition
- 1 shape insert; 1 handle with lock
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.000 cm
- Package 1 Width
- 14.000 cm
- Package 1 Length
- 4.000 cm
- Package 1 Weight
- 130.000 g
- Country of origin
- DE
- Warranty (in months)
- 18
- Model
- Double bit
Standards & Compliance
- HS Code
- 8301.40
Cross References
- EAN 3606480192616
- SAP 1000470233
- Code 8579796
