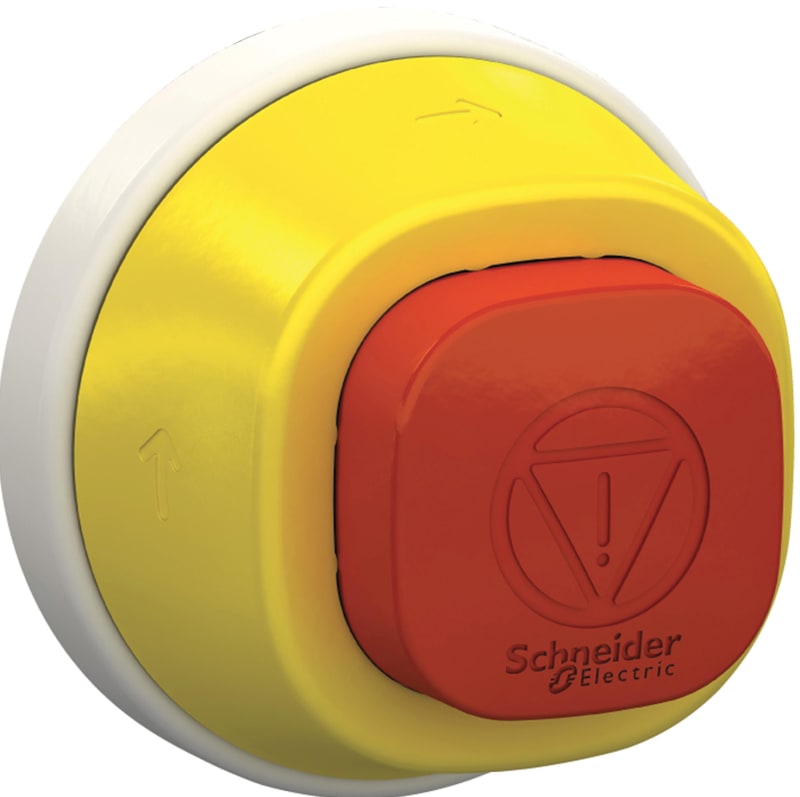

Emergency stop head square without LED

Schneider Electric ZB5AS84W00 Emergency stop head square without LED push/turn.

Manufacturer part number (MPN)

ZB5AS84W00

EAN / GTIN

3606489744939

Sales unit

pcs

Package quantity

60 pcs

Range of product

Harmony XB5

Product or component type

Head for emergency stop push-button

Product destination

Emergency stop push-button

Device short name

ZB5

Bezel material

Plastic

Head type

Standard

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

trigger action and mechanical latching

Reset

Turn to release

Operator profile

Red square 32 mm

Device presentation

Basic element

CAD overall width

60 mm

CAD overall height

60 mm

CAD overall depth

40 mm

Product weight

0.063 kg

Electrical insulation class

Class II conforming to IEC 61140

Resistance to electrostatic discharge

4 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Mechanical durability

300000 cycles

Station name

XALKW01

Electrical composition code

C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting; C10 for <4 contacts using single and double blocks in front mounting

Compatibility code

ZB5

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50E; Type 12 conforming to UL 50E; Type 4 conforming to UL 50E; Type 4X conforming to UL 50E

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK05 conforming to IEC 50102

Standards

IEC 60947-5-1; IEC 60947-5-4; UL 508; UL 60947-5-1; UL 60947-5-5; ISO 21702; ISO 22196:2011

Product certifications

UL listed; CSA; EAC; CCC

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

60

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/green

Suitable for lighting

No

Spring-return

No

Diameter cap

40 mm

Suitable for emergency stop

Yes

Type of button

High

Colour front ring

Black

With lighting

No

Width opening

60 mm

Height opening

60 mm

Degree of protection (IP)

IP66

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

Yes

HS Code

8536.50

• EAN 3606489744939
• SAP 1200338038
• Code 82335903
