Blind Pl. for 96X96 Instr. PrismaSeT G/P
Pricing
Request a quote
We reply within 24 hours
Product Description

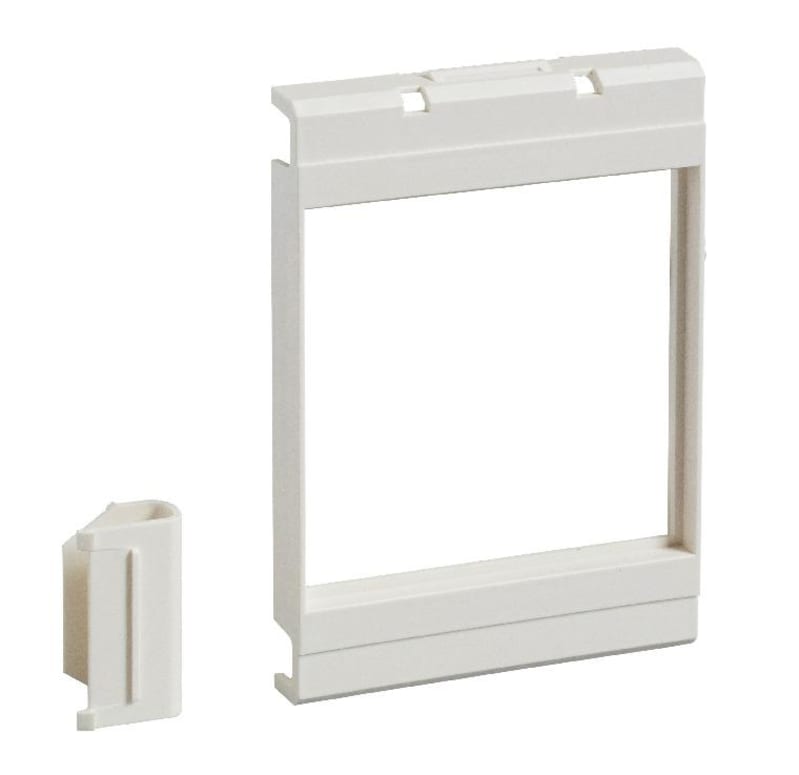

Schneider Electric LVS03901 Blind mounting plate For 96X96 Instrumenter-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03901
- EAN / GTIN
- 3606481885715
- Sales unit
- pcs
- Package quantity
- 75 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P; PrismaSeT G
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- installation description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 400 mm depth 400 mm; Cubicle - width 650 mm depth 400 mm; Cubicle duct - width 300 mm depth 400 mm
- Mounting plate description
- Plain
- Installed device
- Human-switchboard interface: HSI
- Number of vertical modules [50 mm]
- 3 module(s): HSI in 600 mm Widefloor-standing enclosure; 3 module(s): HSI in 600 mm Widewall-mounted enclosure; 3 module(s): HSI in 650 mm Widecubicle; 3 module(s): HSI in 300 mm Widecubicle duct; 3 module(s): HSI in 400 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Plastic
- Colour
- White (RAL 9001)
- Width
- 101 mm
- Height
- 150 mm
- Depth
- 15 mm
- Product weight
- 0.042 kg
- Functional unit
- 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 4 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface HSI 4 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 4 3; 300 mm 400 mm PrismaSeT P cubicle duct human-switchboard interface HSI 4 3; 400 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 4 3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 75
- Warranty (in months)
- 18
- Model
- Blind plate
- RAL-number
- 9001
- Country of origin
- France
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606481885715
- SAP 1200546764
- Code 82879741
Product Documentation
More from Schneider Electric
Schneider Electric
1250X420X900 Sok 7035 PLAZ(T)
NSYZHPLA124G
Schneider Electric
APC Smart-UPS X 3000VA Short D
SMX3000HV
Schneider Electric
Passiva filter 369A 460V 60Hz 5%THD
VW3A46174
Schneider Electric
Schneider Electric Altivar ATV12 VFD 0.37 kW 1x100-120 V IP20
ATV12P037F1
Schneider Electric
Resistor for MCH 440/480V MTZ1
LV833193SP
Schneider Electric
Schneider Electric TeSys F - set of connections - 3P - reversing LA9FK976
Schneider Electric
Schneider Galaxy VS Battery String High Capacity 9 Ah Long Life
GVSBTH4LL
Schneider Electric
Cam switch 4 steps 1-Pole bottom
K1D004NCH
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS03901?
- LVS03901 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS03901.
- What is the HS code for LVS03901?
- The customs tariff (HS) code for LVS03901 is 3926.90.
- Who manufactures LVS03901?
- LVS03901 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for LVS03901?
- Yes — the LVS03901 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS03901?
- The minimum order quantity is 1.
- Is LVS03901 available?
- Yes — LVS03901 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
