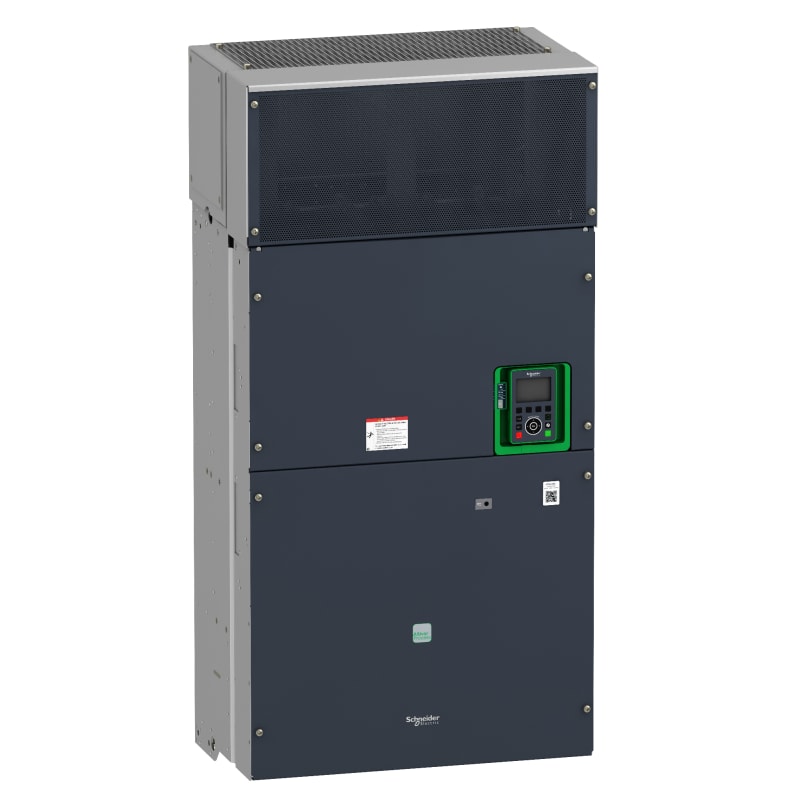

ATV630 IP00 315kW 400V DNV
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ATV630C31N4428 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Variable-frequency drive for pump & ventilation IP00 315kW 400V marine sertificat.
Technical Specifications
- Manufacturer part number (MPN)
- ATV630C31N4428
- EAN / GTIN
- 3606481714831
- HS code
- 8504.40
- Sales unit
- pcs
- Voltage
- 400 V
- IP rating
- IP00
- Power
- 315 kW
- Width
- 595 mm
- Height
- 1190 mm
- Depth
- 377 mm
- Number of digital inputs
- 6
- Number of analogue inputs
- 3
- Number of analogue outputs
- 2
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-485
- 1
- Degree of protection (IP)
- IP00
- Mains frequency
- 50/60 Hz
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Max. output frequency
- 500 Hz
- Max. output at linear load at rated output voltage
- 315 kW
- Max. output at quadratic load at rated output voltage
- 315 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 480 V
- Nominal output current I2N
- 616 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606481714831
- SAP 1200722452
- Code 83837191
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(55kW)/400...440V(110kW) ATS22C21Q
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400K, 36KA/800VAC, 10KA/1000VAC, 3 poles, MicroLogic 2.3 trip unit, 400A C40K32D400
Schneider Electric

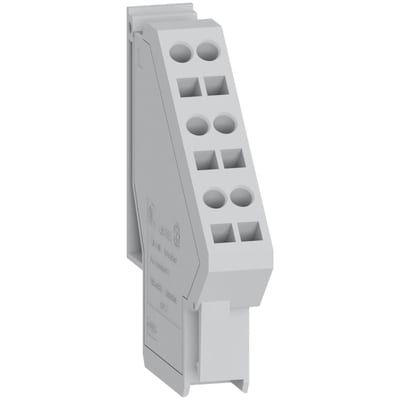

Schneider Electric 3 wires terminal block, Masterpact MTZ1/2/3, fixed, spare part, 1 part LV847074SP
Schneider Electric
S3D Hanceiling EDF1400
NSYAEDLEDF14S3D
Schneider Electric

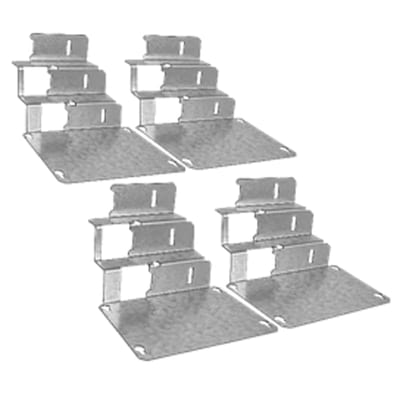

mounting frame for SLC
FFS00703965
Schneider Electric

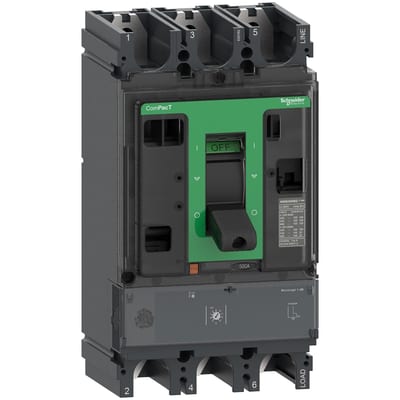

Schneider Electric Circuit breaker, ComPacT NSX630R, 200KA/415VAC, 3 poles, MicroLogic 1.3M trip unit 500A C63R31M500
Schneider Electric

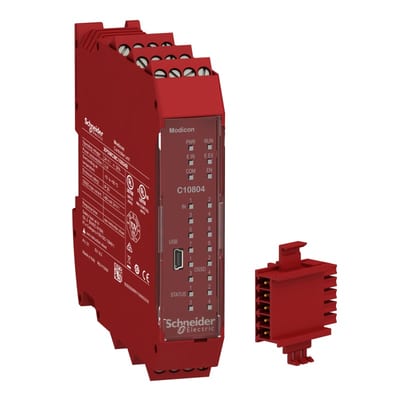

Schneider Electric Modicon Safety Controller CPU, 8DI/4DO, screw
XPSMCMC10804B
Schneider Electric

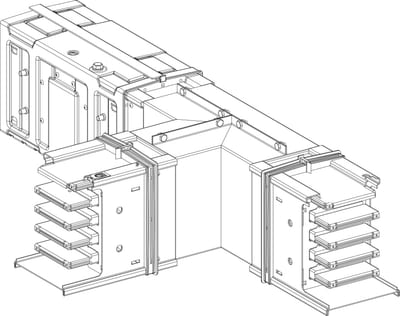

T-Element 800-1000A (KSA1000DTC40)
