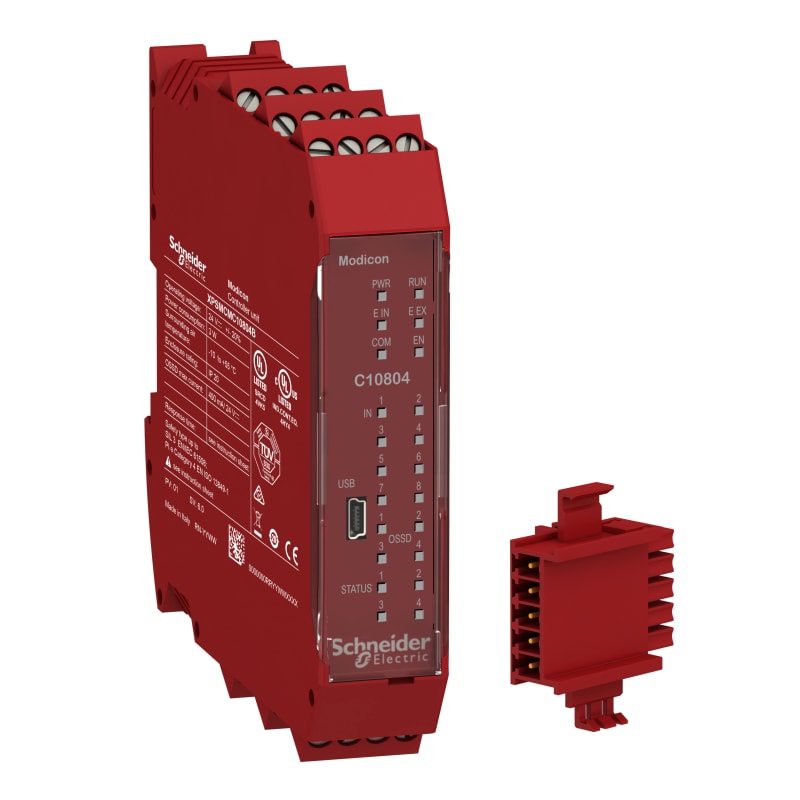

Schneider Electric Modicon Safety Controller CPU, 8DI/4DO, screw

Schneider Electric XPSMCMC10804B Safety controller with 8 inputs 4 outputs with screw terminal + connector for expansion.

Manufacturer part number (MPN)

XPSMCMC10804B

EAN / GTIN

3606481987075

Sales unit

pcs

Range of product

Modicon Safety automation

Device short name

XPSMCM

Electrical connection

Screw terminal

Product or component type

Modular safety controller CPU kit

[Us] rated supply voltage

24 V - 20...20 % DC

Number of inputs

8 digital for input connection; 4 digital for interlock start/restart or external device monitoring

Number of outputs

4 safety outputs OSSD for contactor/drive connection; 4 test for line control outputs; 4 configurable for diagnostic connection

Discrete input voltage

24 V

Discrete output current

400 mA

Discrete input current

400 mA

Discrete input type

Safety input; PNP

Discrete output type

PNP

Kit composition

1 safety controller CPU; 1 backplane expansion connector

Function of module

Emergency stop conforming to ISO 13850; Guard monitoring conforming to EN/ISO 14119; Enabling switch monitoring conforming to IEC 60947-5-1; Light curtain monitoring conforming to IEC 61496-1; Foot switch monitoring conforming to IEC 60947-5-1; Light curtain monitoring conforming to EN/ISO 14119; Switch monitoring conforming to EN 574; Two-hand control conforming to EN/ISO 14119; Safety mat monitoring conforming to IEC 61326-1; Switch monitoring conforming to IEC 61800-5-2; Muting function of light curtains conforming to IEC 61800-5-2; Safety time delays; Counter functions

Backplane connector

With

Synchronisation time between inputs

< 0.5 ms

Power dissipation in W

3 W

Maximum number of I/O expansion module

14 with 128 discrete output(s) for input; 14 with 32.0 discrete output(s) for output

Integrated connection type

Backplane expansion bus; USB 2.0 port

Data storage equipment

SD card (optional)

Inductive load

2.4 mH

Load capacitance

0.82 µF

Safety level

Can reach category 4 conforming to ISO 13849-1; Can reach PL = e conforming to ISO 13849-1; Type 4 conforming to IEC 61496-1; SILCL 3 conforming to IEC 62061

Quality labels

CE

Local signalling

1 LED green with PWR marking for power ON; 1 LED green with RUN marking for RUN (status); 1 LED red with E IN marking for internal error; 1 LED red with E EX marking for external error; 1 LED orange with COM marking for communication; 1 LED blue with EN marking for master enable; 8 LEDs yellow with IN marking for input status; 2 LEDs green/red with OUT marking for output status; 2 LEDs yellow with RST marking for restart signal; 2 LEDs yellow with STATUS marking for output channel

Connections - terminals

2 captive screw terminals, removable terminal block; 1 captive screw terminals, removable terminal block

Cable cross section

0.2…1.5 mm² - 24 AWG...16 AWG flexible cablewithout cable end; 0.2…2.5 mm² - 24 AWG...14 AWG flexible cablewithout cable end; 0.25…1 mm² - 23 AWG...18 AWG flexible cablewith cable end, without bezel; 0.25…2.5 mm² - 23 AWG...14 AWG flexible cablewith cable end, with bezel; 0.25…1.5 mm² - 23 AWG...16 AWG flexible cablewith cable end, without bezel; 0.5…1.5 mm² - 20 AWG...16 AWG flexible cablewith cable end, with double bezel; 0.2…1 mm² - 24 AWG...18 AWG solid cablewithout cable end; 0.2…2.5 mm² - 24 AWG...14 AWG solid cablewithout cable end

Mounting support

Omega 35 mm DIN rail conforming to EN 50022

Depth

114.5 mm

Height

99 mm

Width

22.5 mm

Product weight

0.155 kg

Standards

IEC 61496-1; ISO 13849-1; IEC 61508; IEC 61800-5-1; IEC 62061

Product certifications

TÜV; RCM; cULus

IP degree of protection

IP20

Ambient air temperature for operation

-10…55 °C

Ambient air temperature for storage

-20…85 °C

Relative humidity

10…95 %

Pollution degree

2

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 61800-5-1

Safety reliability data

PFHd = 1.35E-8 1/h high; DC > 99 %; MTTFd < 100 years

Insulation

250 V AC between power supply and housing conforming to IEC 61800-5-1

Overvoltage category

II

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3

Vibration resistance

+/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1

Shock resistance

10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to IEC 61496-1

service life

20 year(s)

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

12.500 cm

Package 1 Length

16.000 cm

Package 1 Weight

264.000 g

Unit Type of Package 2

S01

Number of Units in Package 2

6

Package 2 Height

15.000 cm

Package 2 Width

15.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

1.841 kg

Country of origin

IT

Warranty (in months)

18

Operating voltage DC

24 V

Power consumption

3 W

Supply voltage DC

24 V

Control voltage 1

24 V

Voltage type (operating voltage)

DC

Type of control voltage 1

DC

Type of control voltage 2

DC

Model

Basic device

Suitable for monitoring of position switches

Yes

Suitable for monitoring of emergency-stop circuits

Yes

Suitable for monitoring of valves

No

Suitable for monitoring of tactile sensors

Yes

Suitable for monitoring of magnetic switches

Yes

Suitable for monitoring of proximity switches

Yes

Type of electric connection

Screw connection

Suitable for rail mounting

Yes

Voltage type for actuating

DC

With detachable clamps

Yes

With start input

Yes

With muting function

Yes

With feedback circuit

Yes

Number of outputs, safety related, undelayed, semiconductors

4

Number of outputs, safety related, delayed, semiconductors

4

Type of safety according to IEC 61496-1

4

Stop category according to IEC 60204

0 + 1

Performance level according to EN ISO 13849-1

Level e

SIL according to IEC 61508

3

With approval for BG BIA

No

With approval according to UL

Yes

HS Code

8537.10
