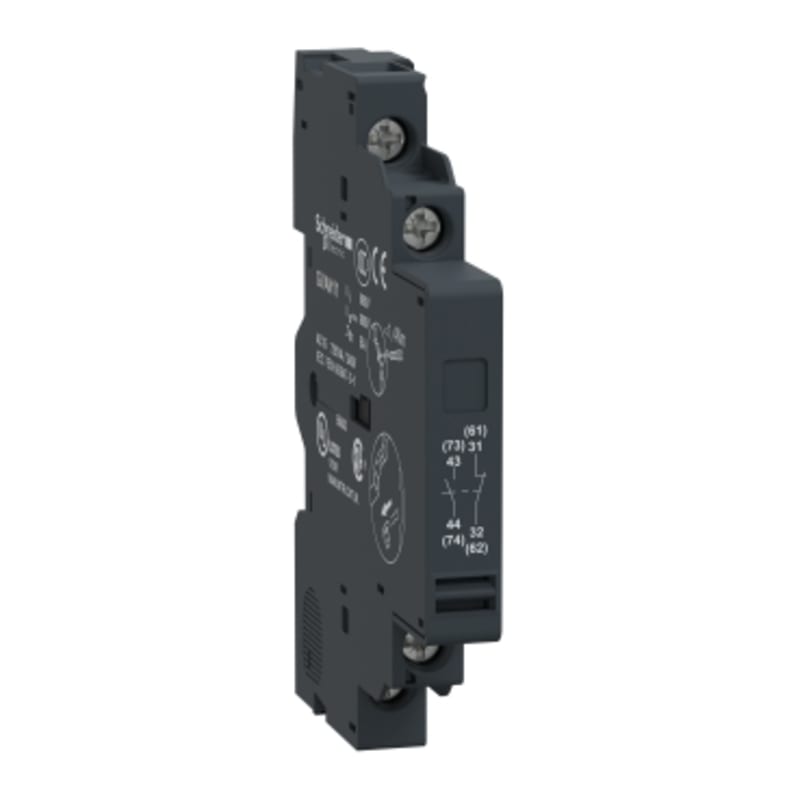

Schneider Electric TeSys GV2 & GV3 - auxiliary contact block - 1 NO + 1 NC GVAN11
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric GVAN11 Auxiliary block 1NO+1NC GV2.
Technical Specifications
- Manufacturer part number (MPN)
- GVAN11 EAN / GTIN: 3389110343489 Sales unit: pcs Package quantity: 10 pcs Contact configuration: 1 NO + 1 NC Range: TeSys; TeSys Deca Device short name: GVAN Product or component type: Auxiliary contact block Product compatibility: GV2P; GV2L; GV2ME; GV2LE; GV2RT; GV2LM; GV3P; GV3L Mounting location: Left side Pole contact composition: 1 NO + 1 NC [Ui] rated insulation voltage: 600 V conforming to UL 508; 690 V conforming to IEC 60947-1; 600 V conforming to CSA C22.2 No 14 [Ue] rated operational voltage: 48...690 V AC; 24...240 V DC [Ith] conventional free air thermal current: 6 A Mechanical durability: 100000 cycles minimum switching current: 5 mA minimum switching voltage: 17 V Protection type: GB2CB... circuit breaker; GG fuse 10 A Rated operational power in VA: 300 VA at 48 V AC-15 - electrical durability: 100000 cycles; 414 VA at 690 V AC-15 - electrical durability: 100000 cycles; 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles; 500 VA at 500 V AC-15 - electrical durability: 100000 cycles; 650 VA at 440 V AC-15 - electrical durability: 100000 cycles; 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles; 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles Rated operational power in W: 120 W at 240 V DC-13 - electrical durability: 100000 cycles; 140 W at 110 V DC-13 - electrical durability: 100000 cycles; 140 W at 24 V DC-13 - electrical durability: 100000 cycles; 180 W at 60 V DC-13 - electrical durability: 100000 cycles; 240 W at 48 V DC-13 - electrical durability: 100000 cycles Tightening torque: 1.4 N.m screw clamp terminals Height: 89 mm Width: 9.3 mm Depth: 66 mm Product weight: 0.05 kg Colour: Dark grey Environmental characteristic: Normal environment Standards: EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ Product certifications: CB Scheme; CE; UKCA; CCC; cULus; EAC Number of Units in Package 1: 1 Number of Units in Package 2: 25 Number of Units in Package 3: 800 Country of origin: CZ Warranty (in months): 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110343489
- SAP 1000044055
- Code 8820606
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric ACTI9 - comb busbar - 3L+N balanced wtih Aux - 18 mm pitch - 57 modules A9XAH557
Schneider Electric
Schneider Electric A9F07225 ACTI9 IC60H Miniature Circuit Breaker 2P 25 A, Curve C
Schneider Electric
Schneider Electric LV429515 — Short terminal shield, NSX100/160/250, pitch 35 mm, IP40, 3 poles
Schneider Electric
Kaedra IP65 modular enclosure 3X18MOD
13436
Schneider Electric
Schneider Electric ACTI9 IC60 RCBO - 3P - 10 A - C Curve - 10000A/15KA - 30 mA - A type A9D17310
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 150A, 230V AC 50/60Hz coil, screw clamp terminals LC1D150P7
Schneider Electric
Busbar. 2P L1/N-L2 18 mod
A9XPH218
Schneider Electric
Schneider Electric iCT 63A 3NO 220...240V 50Hz contactor A9C20863
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy GVAN11?
- GVAN11 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is GVAN11.
- What is the HS code for GVAN11?
- The customs tariff (HS) code for GVAN11 is 8538.90.
- Who manufactures GVAN11?
- GVAN11 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for GVAN11?
- Yes — the GVAN11 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for GVAN11?
- The minimum order quantity is 1.
- Is GVAN11 available?
- Yes — GVAN11 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
